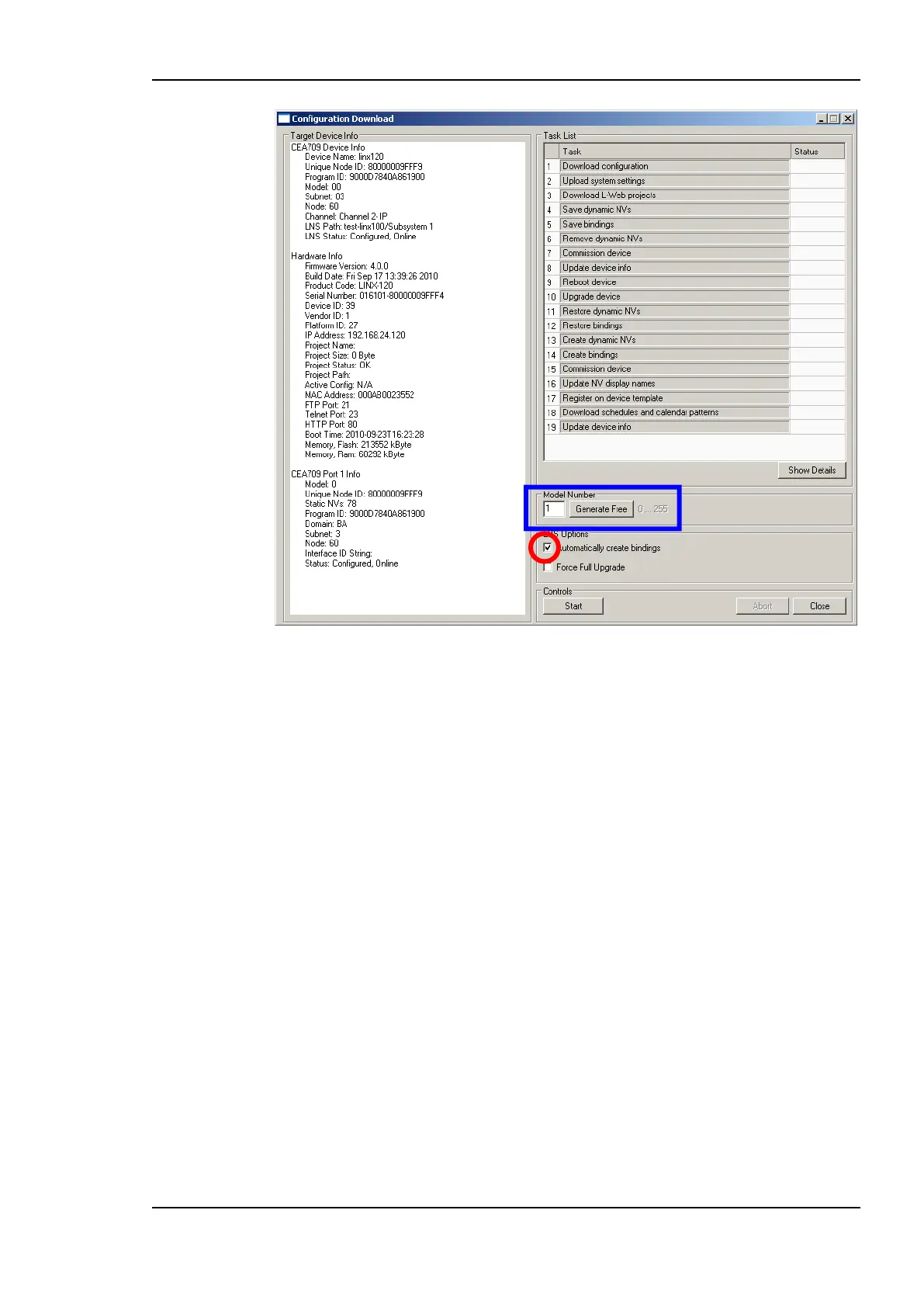

Figure 126: Configuration Download Dialog via LNS.
Note, that after the download is complete, the interface changes become active on the
device (i.e., the static NV interface has changed). Refresh the network management tool to
synchronize the tool with the changes to the LNS database made by the Configurator (e.g.,
use the menu ―LonMaker|Refresh‖ in LonMaker or hit F5 in NL-220).
Normally, the Configurator software optimizes the download process by not executing
certain LNS operations, if not necessary. For example, only those bindings and dynamic
NVs are deleted and re-created, which correspond to real changes in the interface. The user
can check the Force Full Upgrade option to clean and re-do all steps.
6.7.10 Enable Legacy NM Mode
For network management tools, which do not support the ECS (enhanced command set)
network management commands, the legacy network management mode must be
configured. Please contact the tool‘s vendor for information whether ECS is supported or
not. Note, that changing to legacy network management mode changes the static interface of
the device.
To Enable Legacy NM Mode
1. In the Configurator menu go to Settings Project settings …
2. Click on the tab CEA709.
3. Put a check mark in Enable Legacy Network Management Mode.
