L-INX User Manual 190 LOYTEC

Version 4.0 LOYTEC electronics GmbH

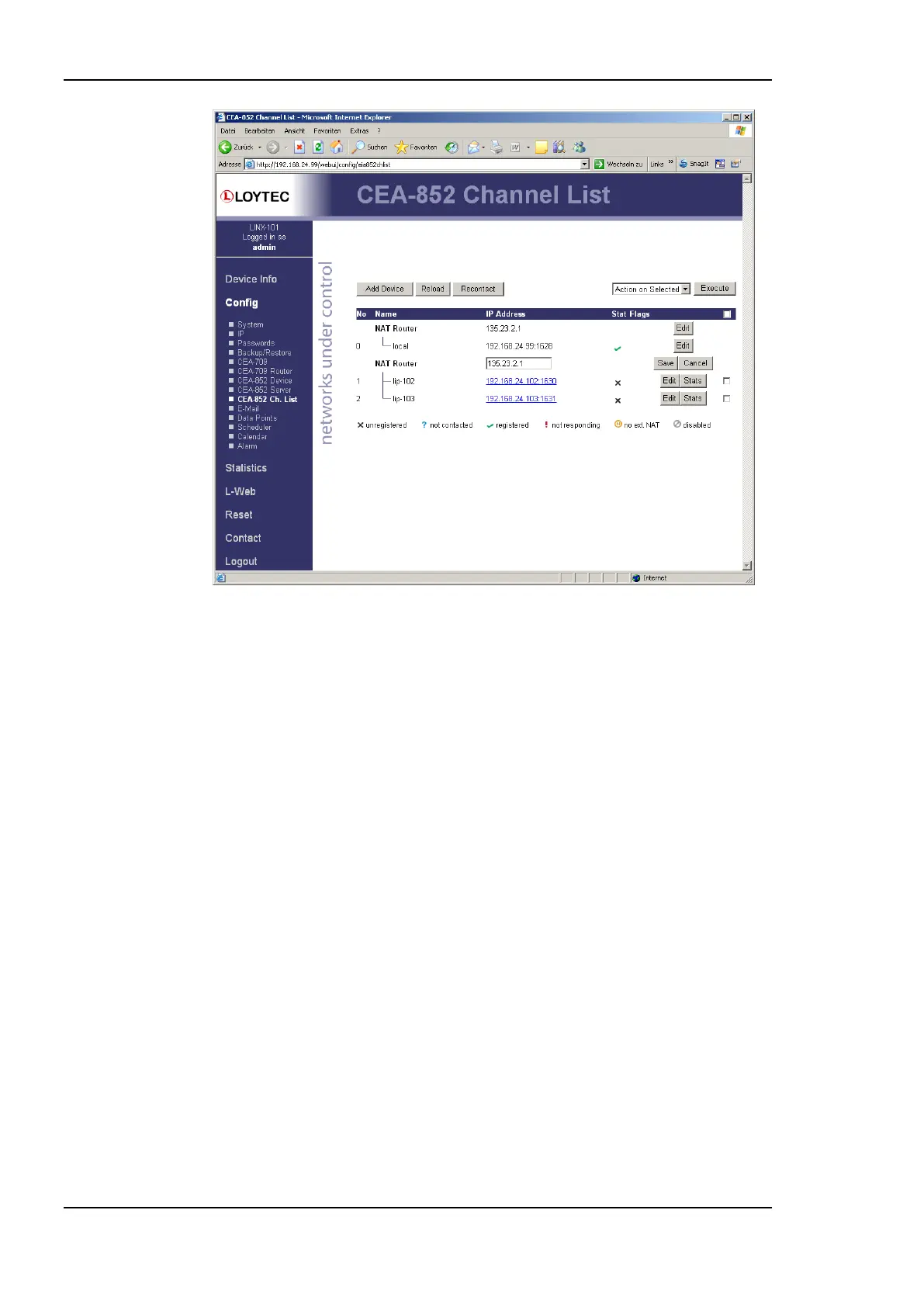

Figure 154: Adding a member with extended NAT Mode on the Web UI.

7.3.3 Multiple IP-852 devices behind a NAT: Classic Method

If more than one CEA-852 device must be used behind the NAT router and there are

devices which do not support the extended NAT mode, we propose the setup from Figure

155.
