L-INX User Manual 218 LOYTEC
Version 4.0 LOYTEC electronics GmbH
10.6.1 Offline Engineering
This section describes how an M-Bus network can be set up without using the M-Bus
network. Figure 170 shows the workflow. First, the M-Bus devices, address and Baud rates
of the M-Bus devices must be configured for example by following the device manu-
facturer‘s guidelines (see Section 10.7.3). Afterwards the devices and data points are
configured in the Configurator either configured manually (see Section 10.7.4) or by using
M-Bus device templates (see Section 10.7.5). Also mixing the two methods is possible.
When using the device templates also data points can be added manually. The configuration
is then downloaded to the device and the device is rebooted (see Section 6.6.4).
START
Configure addresses and Baud rates of the M-Bus devices
Section 10.7.3
M-Bus Data Points
Section 10.7.4
Download Configuration to device
Section 6.6.4
DONE
Import M-Bus Device Templates
Section 10.7.5

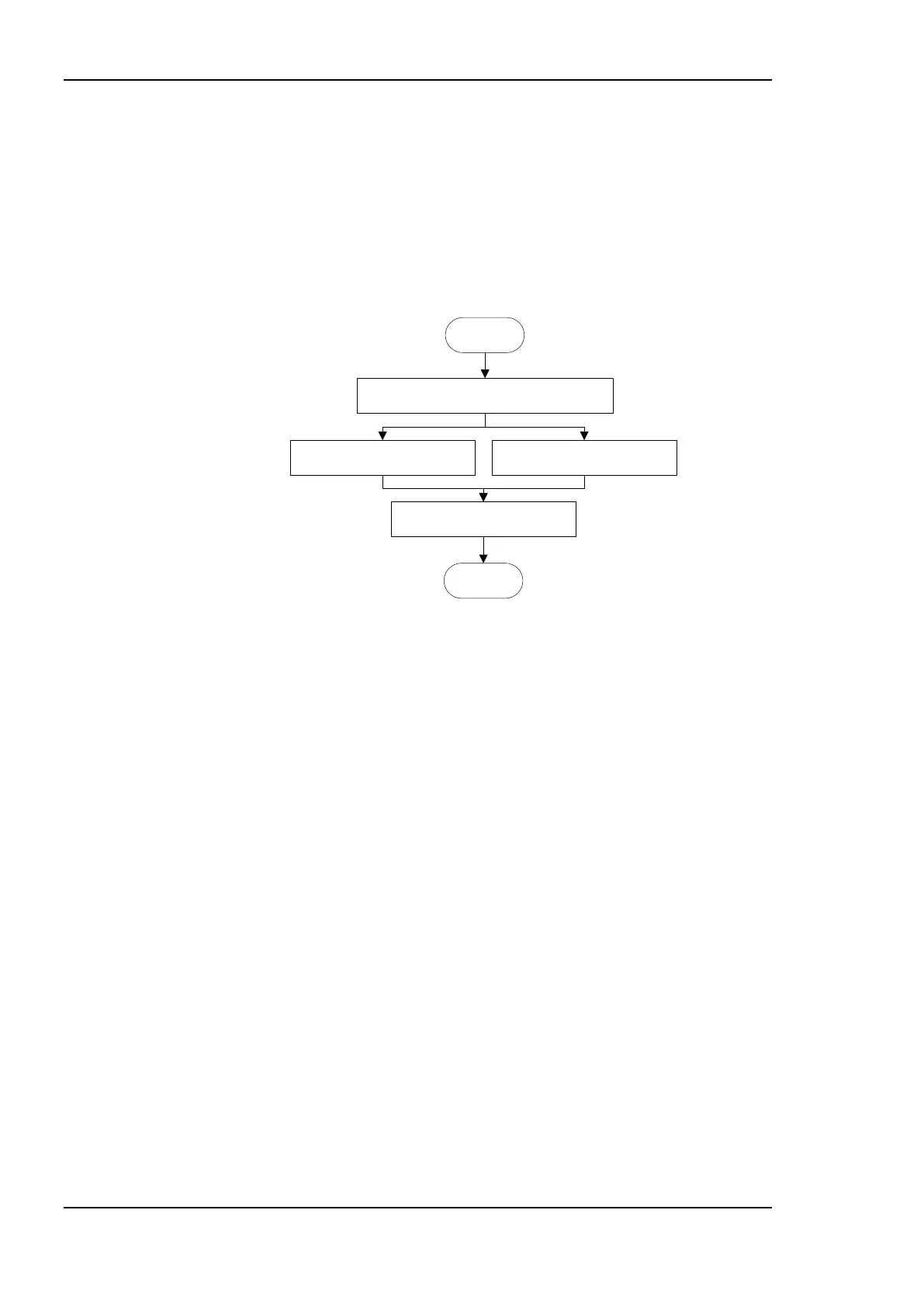

Figure 170: Workflow for offline engineering.
10.6.2 Online Engineering
This section describes how the M-Bus network is set up when the network can be accessed.
Figure 171 shows the workflow. If necessary the addresses and Baud rates the M-Bus
devices are using can be configured using the Configurator (see Section 10.7.3). The
devices and data points can then be configured by scanning the connected devices (see
Section 10.7.2), manual configuration (see Section 10.7.4) or also by using the M-Bus
device templates (see Section 10.7.5). The configuration is then downloaded to the device
and the device is rebooted (see Section 6.6.4).
