ASSEMBLING THE WINDROWER

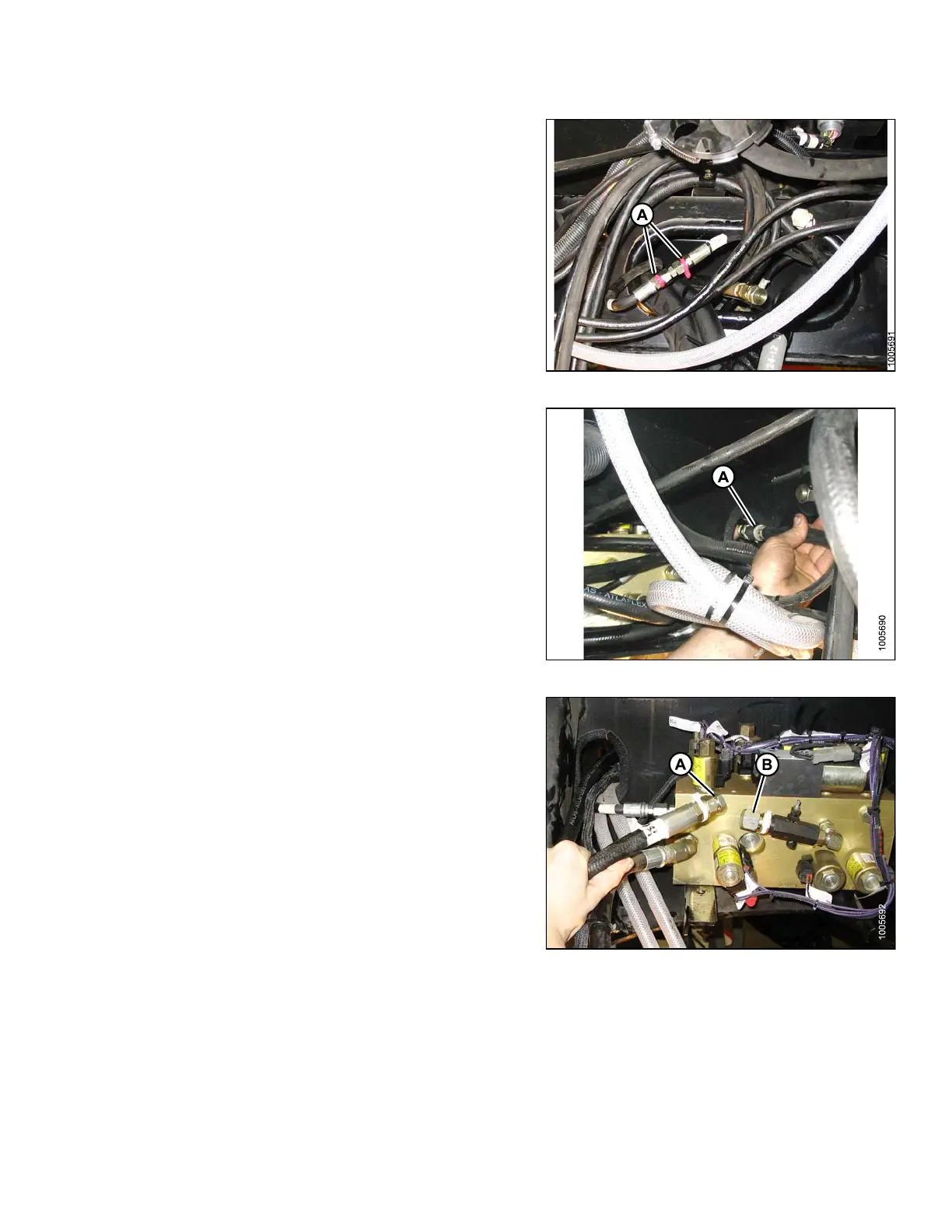

13. Locate two hoses (red ties) (A) inside frame.
14. Route right-hand hose behind bundle.
15. Remove caps, make connection, and tighten fitting.
16. Position hoses into fram e.
Figure 3.40: Hose Routing
17. Retrieve long hose (MD #119328 [white tie]) (A) and
route through the hole in the left-hand frame.
Figure 3.41: Hose Routing
18. Remove caps on hose (A) and valve block fitting
(white tie) (B) and make connection. Tighten fitting.
Figure 3.42: Valve Block
147962 45 Revision A
