Operating elements for driving
3.2 Brief description of the operating elements
Operating manual 3 302 819 en 3 - 43
GMK3060
13.12.2018
Instrument panel Description of further lamps and symbols for warning and malfunction messages;
à Warning and malfunction messages on the instrument panel, p. 8 - 3.
à Warning messages on the CCS display, p. 8 - 10

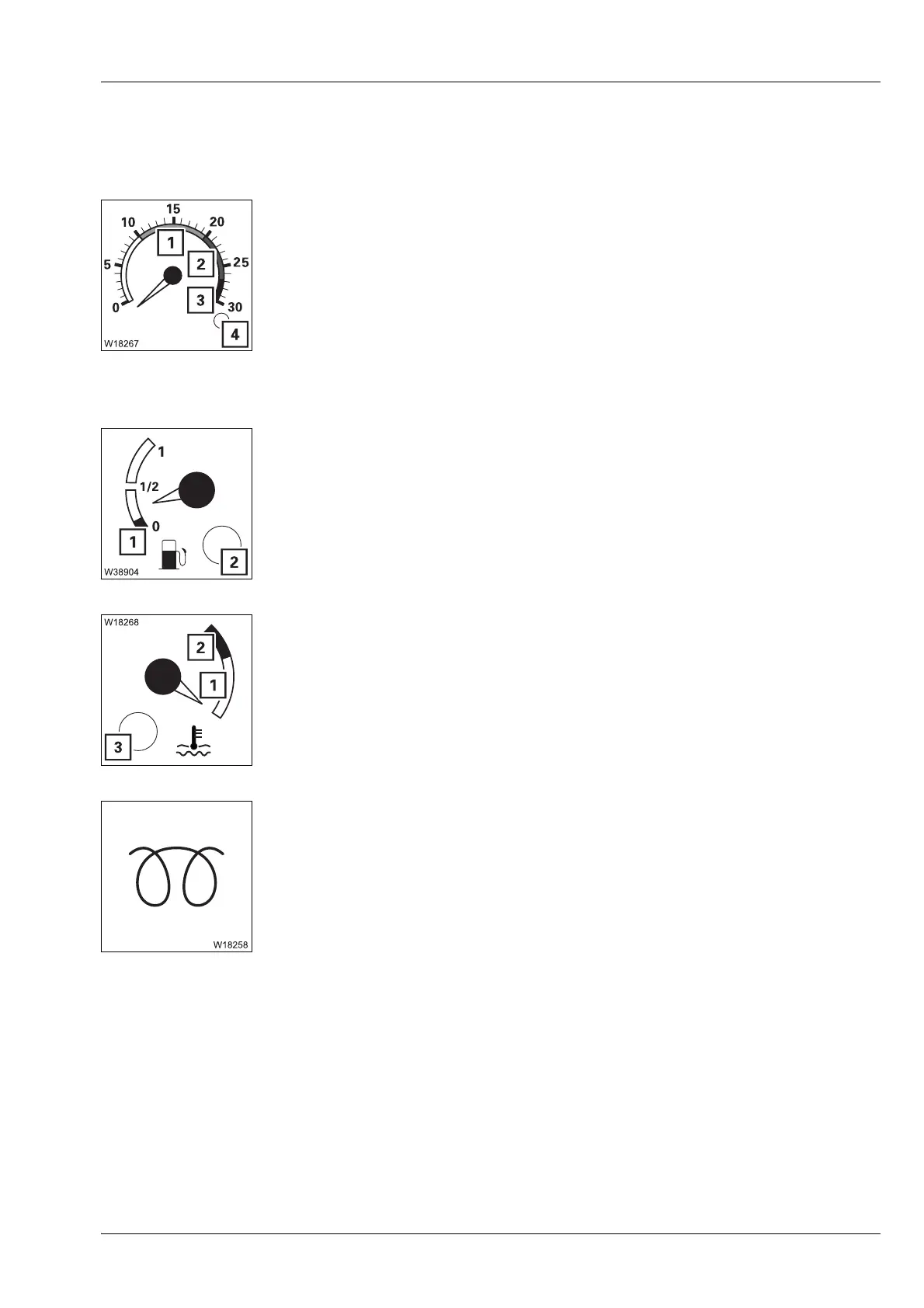

Tachometer
Display of engine speed i min
-1
(rpm)
Fuel level display
Never run the fuel tank completely empty
Coolant temperature display
Flame start system indicator lamp
s
1 Green: Economic consumption
2 Yellow: Engine brake active
3 Red: Lamp (4) flashes
Engine speed too high – brake the truck crane;
Warning message on the CCS; display
à p. 8 - 14
1 Red: Refuel!
à p. 4 - 5
2 Flashing: Fuel tank almost empty
Warning message on the CCS; display
à p. 8 - 13
1 White: Coolant temperature normal
2 Red: Coolant temperature too high
3 Lights up: Warning – coolant temperature too high
Warning on the
CCS display; Ã p. 8 - 14
– Lights up: Engine not ready to start – is being warmed up
– Gone out: Engine is ready to start
à p. 4 - 12
