Driving modes
6.2 Weighing the truck crane
Operating manual 3 302 819 en 6 - 9
GMK3060
13.12.2018
Weighing
procedure
Perform the weighing procedure only with the crane truck standing on solid
and horizontal ground! All scales must be at the same height!

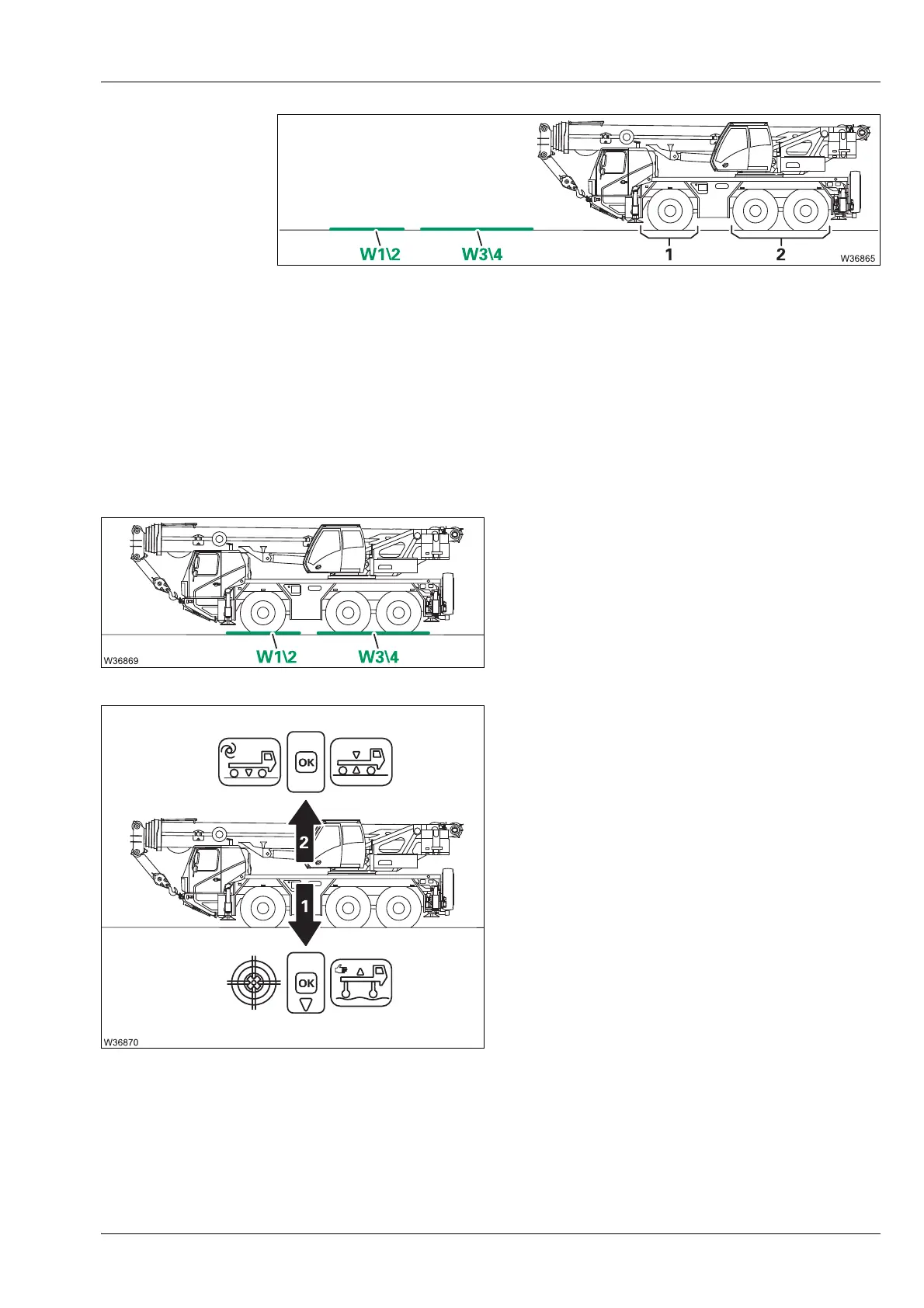

• Position the scales W1 to W4 (or the necessary substructure) directly in front
of the truck crane, so that the distances between the scales are exactly the
same as the distances between the axle groups 1 and 2.
In the next step, drive at only a very low speed without any steering movements,
and brake only very gently.
• Drive the truck crane on to the scales W1 to W4
(or on to the necessary substructure), so that
the axle groups stand centrally on the scales.
• Do not apply the parking brake.
• If the truck crane has to be braked while
changing the level, only use the service
brake very gently.
• (1) – Use the level adjustment system to lower
the truck crane to its lowest position;
à p. 5 - 16.
• (2) – Use the automatic function to set the
level for on-road driving. If you move the axle
groups individually the weighing result will be
falsified.
• Read the scales and make a note of the results.
