Malfunctions in driving mode
8.6 Tilting/lowering the driver's cab
Operating manual 3 302 819 en 8 - 41
GMK3060
13.12.2018
Tilting the
driver's cab

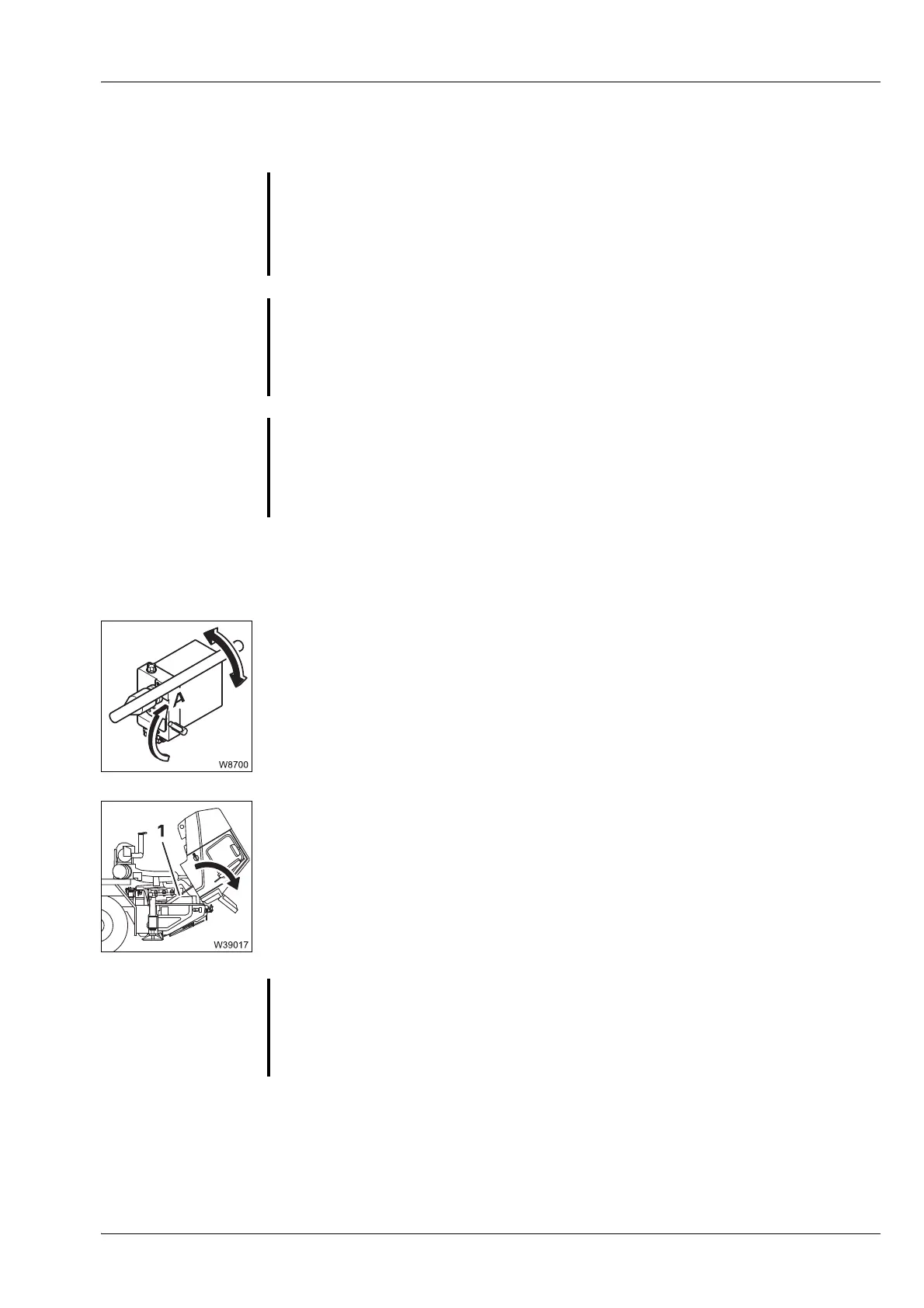

• Remove all loose objects from the driver's cab. Close the doors.
H
You cannot open the front flap when the driver's cab is tilted. If necessary, open
the front flap before tilting the driver's cab.
• Check that the lever (2) is pointing upwards (A).
• Pump with the socket wrench – the driver's cab locking system opens and the
rear of the driver's cab is lifted up.
• Keep pumping, until the driver's cab tilts forwards over the pivot point and the
lifting cylinder (1) is placed under tension.
s
G
Risk of accidents from loose objects and doors swinging open!
Remove all loose objects (e.g. bottles) from the driver's cab so that they do not
fall out when the cab is tilted. Close the doors!
This prevents e.g. liquids from getting into the instrument panels and doors from
swinging open during tilting, thereby injuring people.
G
Risk of accidents due to driver's cab tilting!
When you are tilting the driver's cab forward and while it is actually tilted forward,
no-one may be in front of the driver's cab.
S
Risk of damage when the main boom angle is too small!
Only tilt the driver's cab when the main boom is sufficiently raised.
If you press the driver's cab against the main boom, the driver's cab may tear off
at the pivot point and the steering will be damaged.
G
Risk of accidents due to the driver's cab tilting back!
You may only stand under the tilted driver's cab when the lifting cylinder is placed
under tension.
