Operating elements for crane operation
9.1 Overview of the operating elements
9 - 48 3 302 819 en Operating manual
GMK3060
13.12.2018
Lifting capacity
tables menu
à Displaying the lifting capacity tables, p. 11 - 63
–For the Standard slewing range type
–For the MAXbase slewing range type

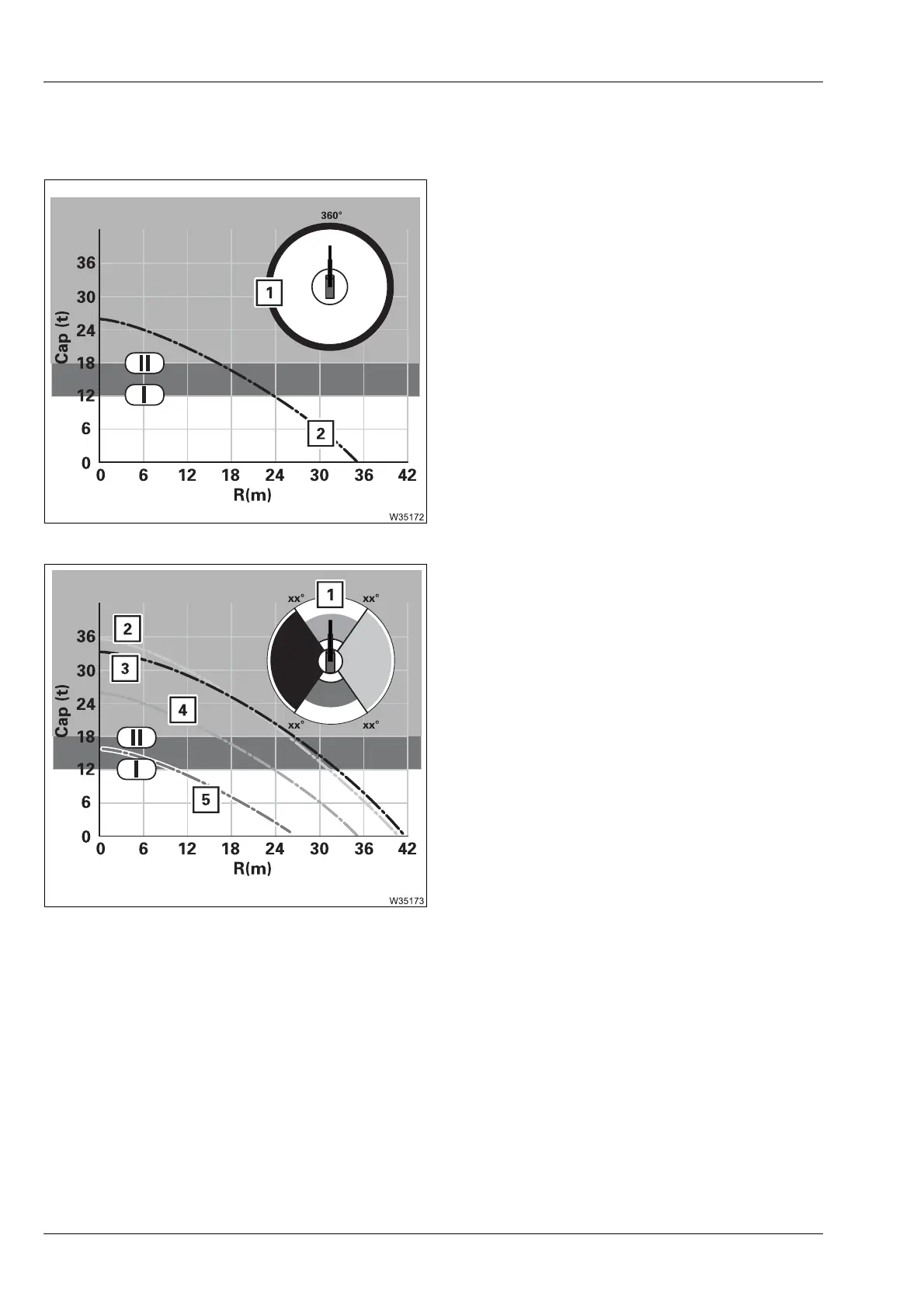

1 Slewing range display
2 Permissible working range display
(range under the curve)
I Main hoist display
Limitation due to reeving
II Auxiliary hoist display
Limitation due to reeving
à p. 11 - 63
1 Slewing ranges display
– Four slewing ranges, marked in colour
2
3
4
5
Permissible working range display
– A coloured curve for each slewing range
I Main hoist display
Limitation due to reeving
II Auxiliary hoist display
Limitation due to reeving
à p. 11 - 65
