Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 3 302 819 en 9 - 49
GMK3060
13.12.2018

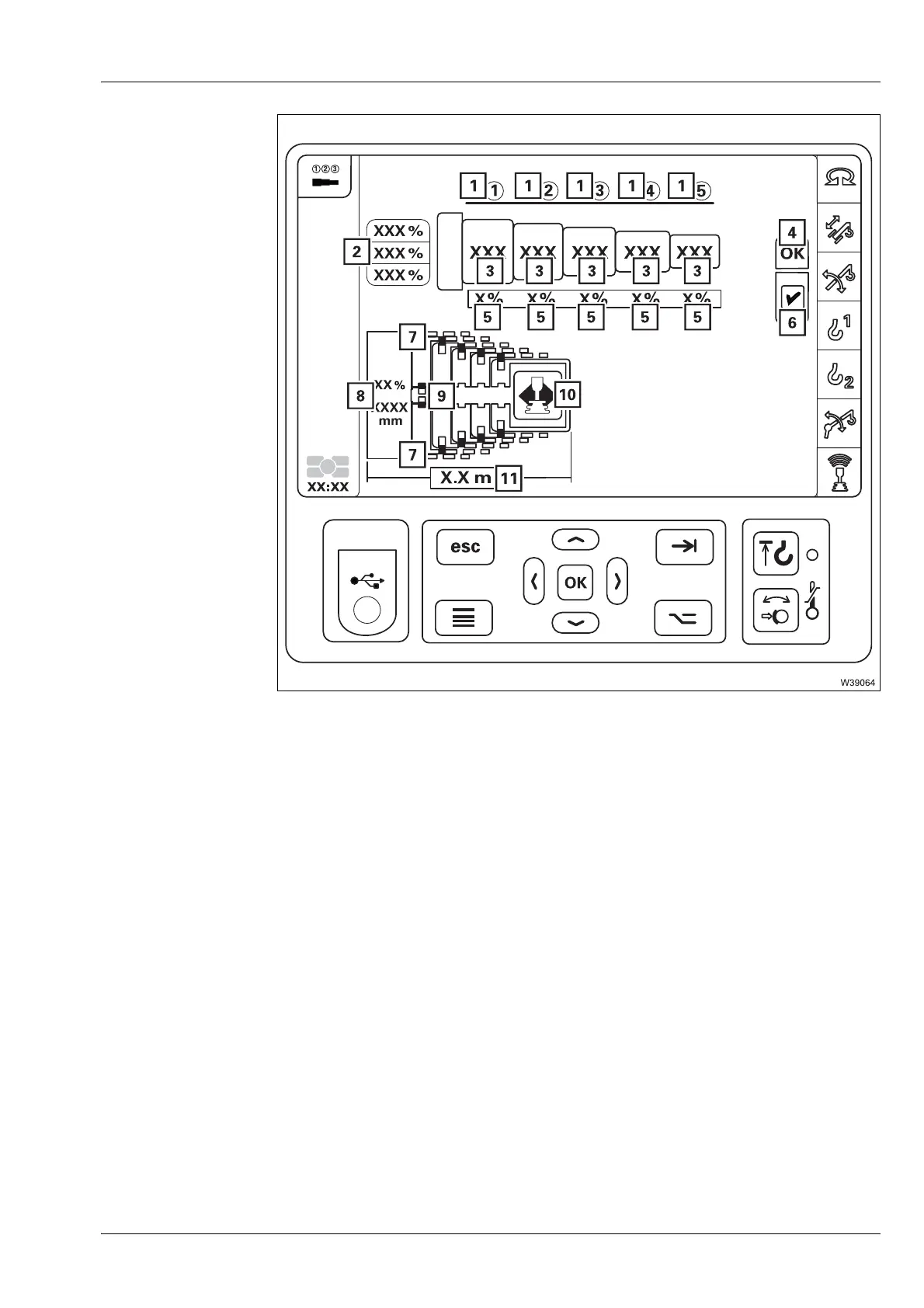

Telescoping semi-
automation menu
s
1 Telescopic sections display à p. 9 - 118
2 Pre-selection for all telescopic sections
à p. 9 - 118
3 Pre-selection individual telescopic sections
à p. 9 - 119
4 Confirming preselection
à p. 9 - 119
5 Current telescoping status display
à p. 9 - 118
6 Telescoping permitted display
Telescoping not permitted display
à p. 9 - 119
7 Locking status telescopic section display
à p. 9 - 117
8 Telescoping cylinder length display
à p. 9 - 118
9 Locking status telescoping cylinder display
à p. 9 - 117
10 Teleautomation direction display
à p. 9 - 119
11 Main boom length display
à p. 9 - 118
