Operating elements for crane operation
9.1 Overview of the operating elements
9 - 50 3 302 819 en Operating manual
GMK3060
13.12.2018

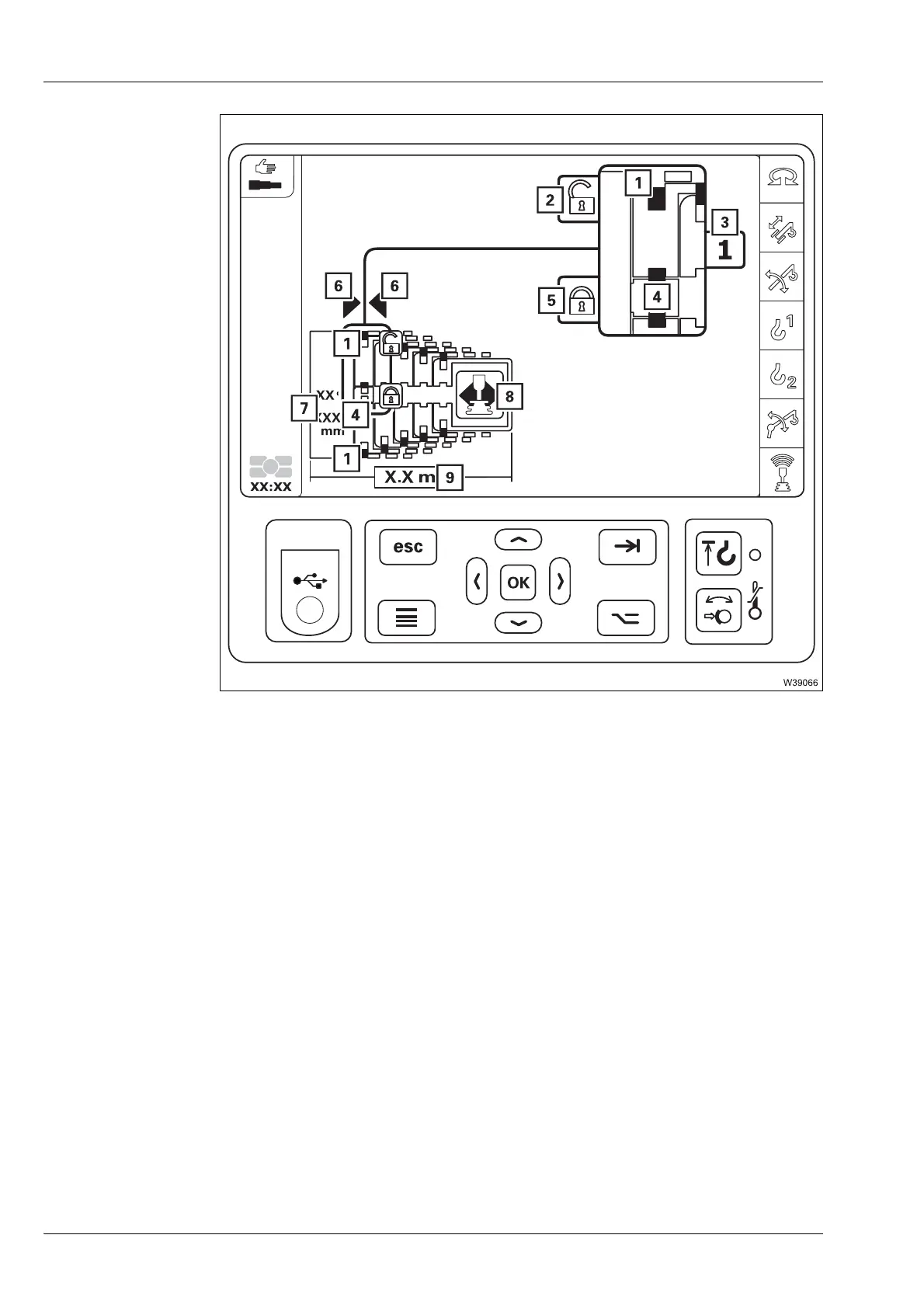

Manual
telescoping
menu
1 Locking status telescopic section display à p. 9 - 120
2 Symbol lock/release telescopic section
à p. 9 - 120
3 Telescoping cylinder in the telescopic section display
à p. 9 - 121
4 Locking status telescoping cylinder display
à p. 9 - 119
5 Locking/releasing the telescoping cylinder
à p. 9 - 120
6 Locking point display
à p. 9 - 120
7 Telescoping cylinder length display
à p. 9 - 120
8 Telescoping direction display
à p. 9 - 121
9 Main boom length display
à p. 9 - 121
