Operating elements for crane operation
9.2 Brief description of the operating elements
Operating manual 3 302 819 en 9 - 131
GMK3060
13.12.2018

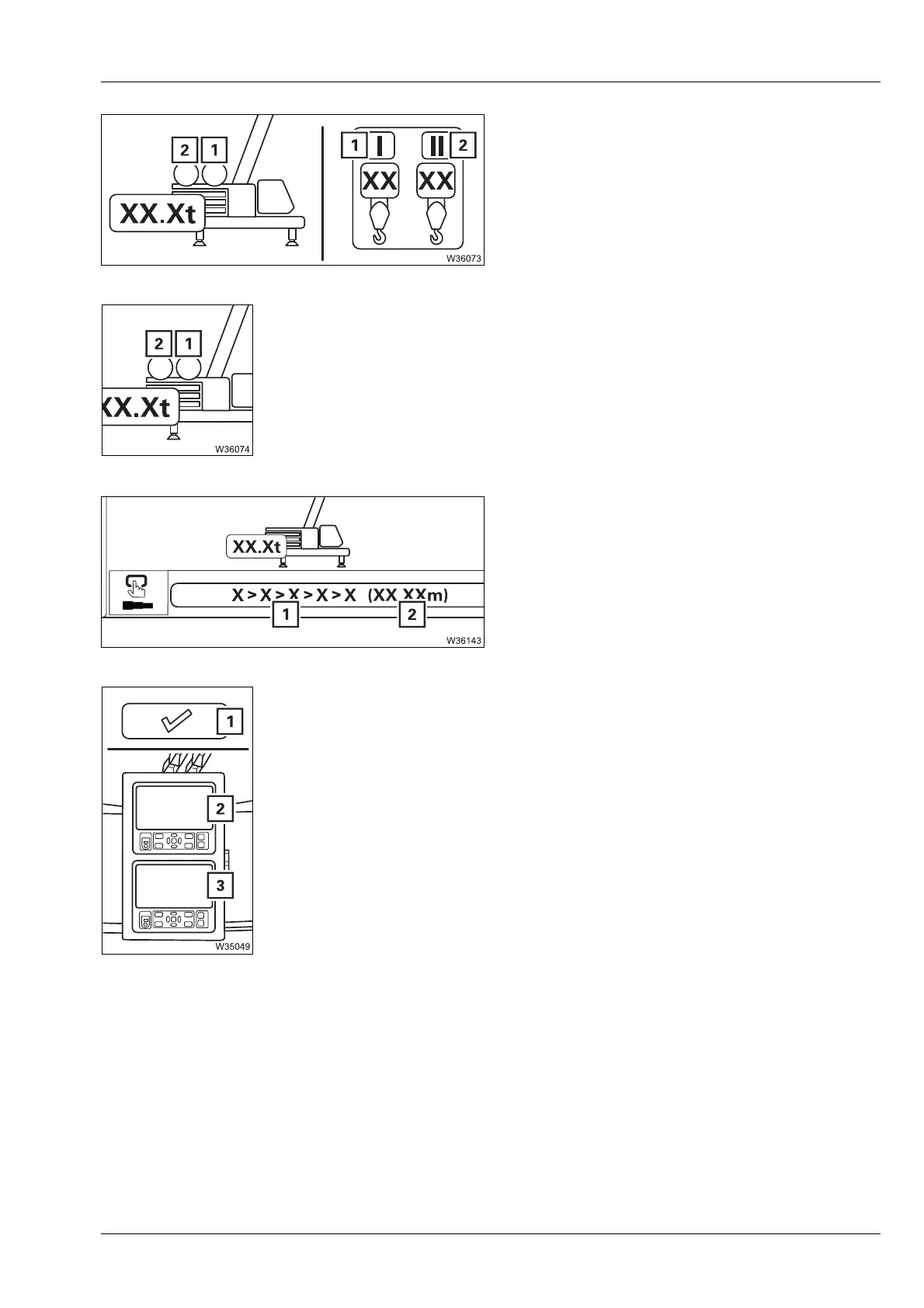

Reeving input mode display
Entering reeving
Preselected telescoping display
Confirming the rigging mode
s
1 Main hoist
2 Auxiliary hoist
Orange: on
Grey: off
à Entering the rigging mode, p. 11 - 36
1 Main hoist
In input mode – select and confirm current reeving
2 Auxiliary hoist – functions as with (1)
à Entering the rigging mode, p. 11 - 36
1 Telescope status display in percentage (%)
2 Preselected main boom length (1) in
metres (m) or in feet (ft)
à Entering the rigging mode, p. 11 - 36
1 – Orange: Select and confirm
– Rigging mode and preselected telescope status are adopted
– lifting capacity table is confirmed
– Display (2) – Monitoring menu on
– Display (3) – Start menu on
– Grey: MAXbase only – no selection possible
Measured outrigger span ≠required outrigger span
à Entering the rigging mode, p. 11 - 36
