Operating elements for crane operation
9.2 Brief description of the operating elements
9 - 130 3 302 819 en Operating manual
GMK3060
13.12.2018
In the Enter rigging mode/telescope status menu

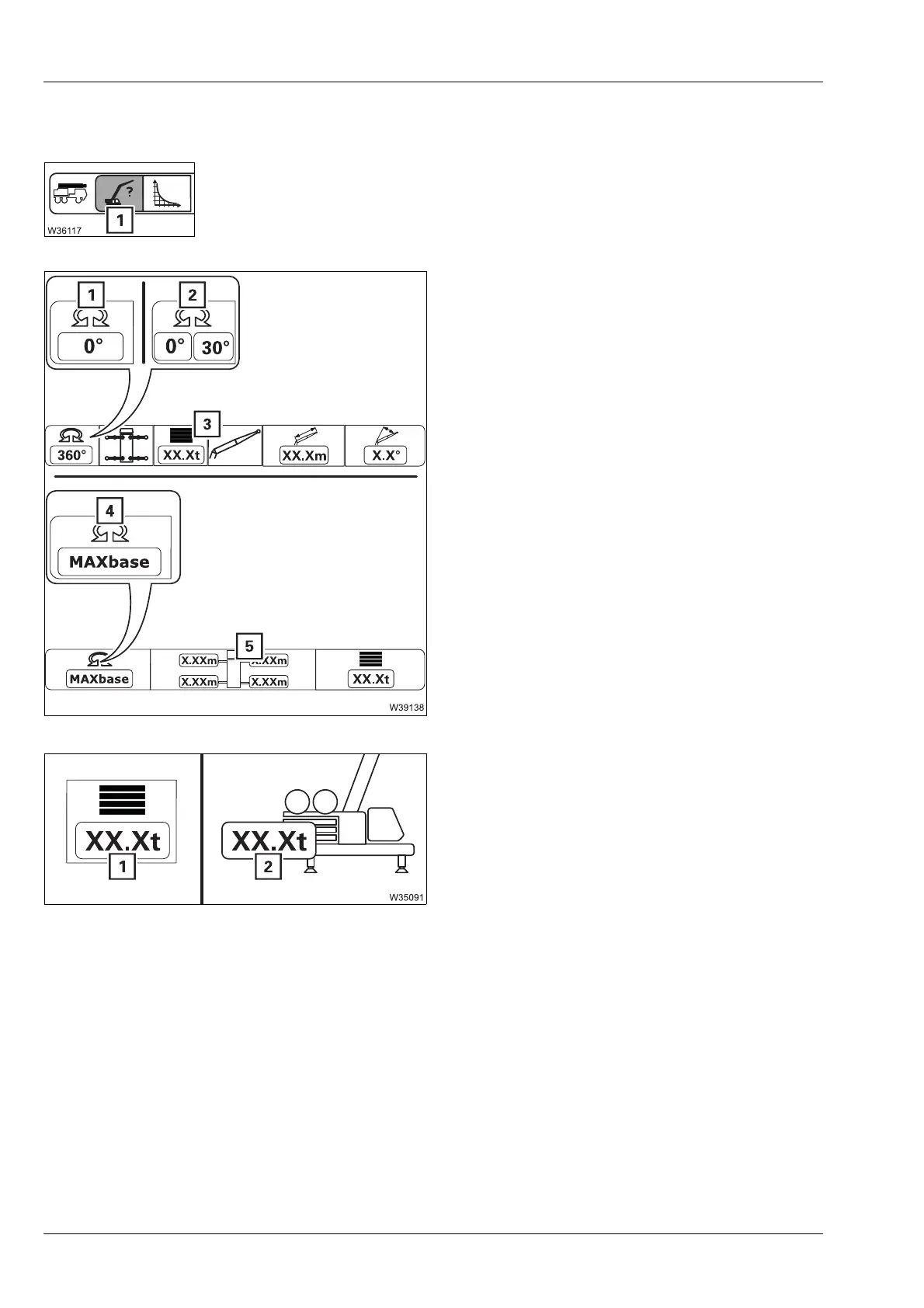

Enter slewing range
In input mode
Select slewing range symbol and confirm
–For the Standard slewing range type
–For the MAXbase slewing range type
à Entering the rigging mode, p. 11 - 36
Entering counterweight
Counterweight display
Select and confirm the symbol (1) – the menu opens, and opens automatically
after Ignition on
1 Display for a slewing range of 360° or
for operating position
1)
, e.g. 0° to the front
2 Display for restricted slewing range,
e.g. 0° ± 30°
– After confirmation: Menu display (3)
1)
To accept, switch off the slewing gear
4 MAXbase
– After confirmation: Menu display (5)
1 In input mode – select and confirm
counterweight
2 Shows the current entry
à Entering the rigging mode, p. 11 - 36
