Operating elements for crane operation
9.2 Brief description of the operating elements
Operating manual 3 302 819 en 9 - 129
GMK3060
13.12.2018

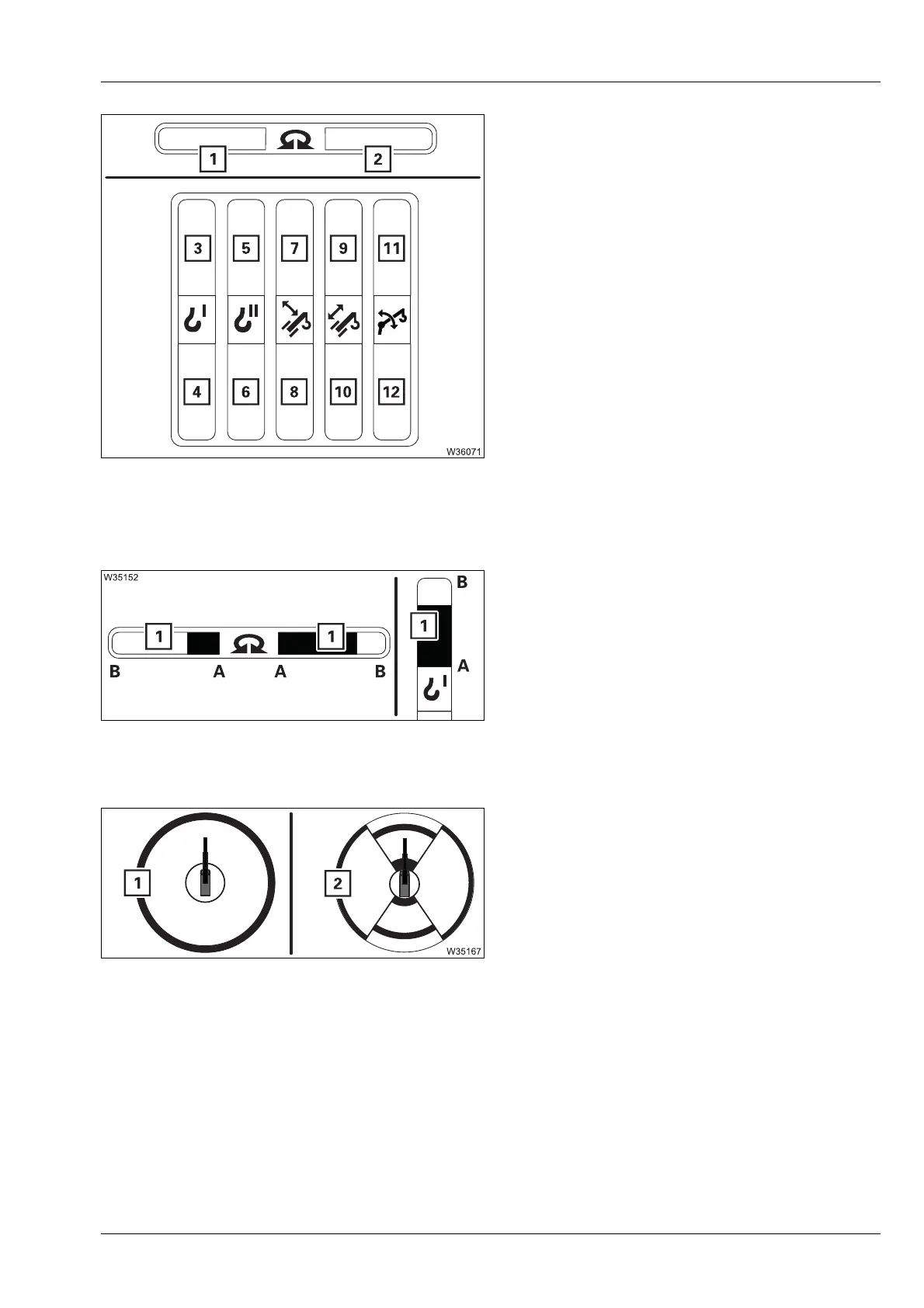

Maximum permissible speed display
Separate displays are provided for each direction
of movement.
A bar (1) shows the maximum permissible speed
– scale from 0% (A) to 100% (B).
The colour of the bar (1) changes.
à On the CCS display, p. 11 - 57
Slewing ranges display
The function is identical to the display in the Lifting
capacity table menu.
s
1 Slewing to the left
2 Slewing to the right
3 Lower the main hoist
4 Lift the main hoist
5 Lower the auxiliary hoist
6 Lifting the auxiliary hoist
7 Lowering the boom
8 Raising the boom
9 Extend
10 Retract
11 Lower the lattice extension
12 Raise the lattice extension
Red: 0% to 10%
Yellow: 11% to 25%
Green: 26% to 100%
1 For the Standard slewing range type;
à p. 11 - 64
2 For the MAXbase slewing range type;
à p. 11 - 66
