Crane operation
11.4 Operation of the rated capacity limiter
Operating manual 3 302 819 en 11 - 57
GMK3060
13.12.2018
On the CCS display After confirming a permissible rigging mode, the Start menu opens automatically.
Slewing range type Standard
If the MAXbase slewing range type has been entered;
à p. 11 - 59.
The RCL display differs according to the confirmed slewing range.

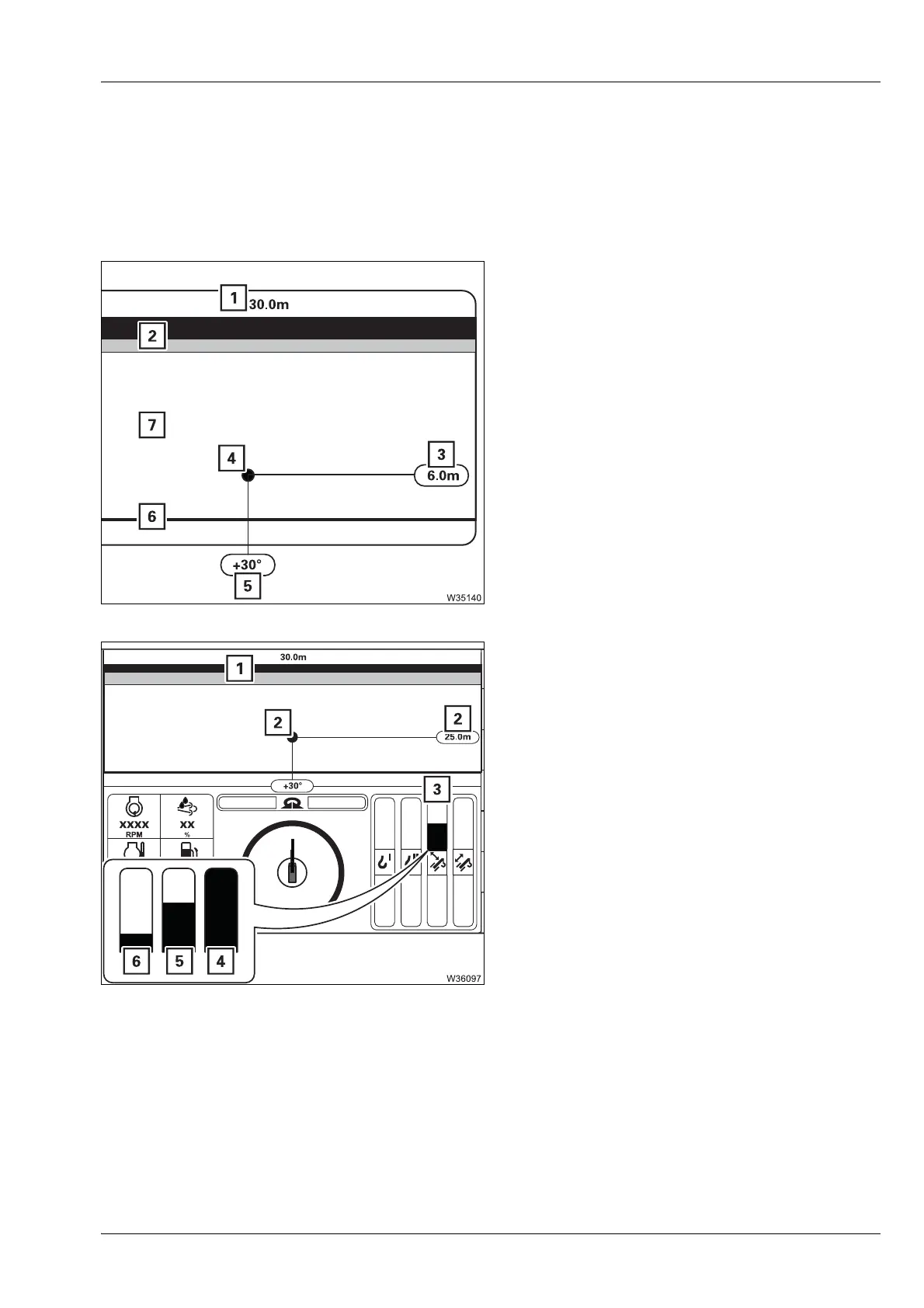

360° slewing range
The diagram (7) covers the entire width. The
height of the diagram corresponds to the maxi-
mum permissible working radius (1), e.g. 30 m
(100 ft).
The current position of the boom head is shown
using the symbol (4) and defined by two displays.
The shutdown range for the maximum working
radius (2) is shown in colour and – if active –
the shutdown range for the minimum working
radius (6) is displayed.
– When telescoping or derricking
The displays (2) move up and down to show the
current working radius, e.g. 25 m (20 ft).
In a shutdown range (1) the movement towards
the shutdown limit is continually reduced until
reaching a standstill.
The corresponding display (3) shows the
current speed reduction, e.g. for lowering
the boom.
s
3 Current working radius, e.g. 6 m (20 ft)
5 Current slewing angle, e.g. +30°
4 Green: 26% to 100%
5Yellow: 11% to 25%
6Red: 0% to 10%
