Operating elements for crane operation
9.2 Brief description of the operating elements
9 - 128 3 302 819 en Operating manual
GMK3060
13.12.2018

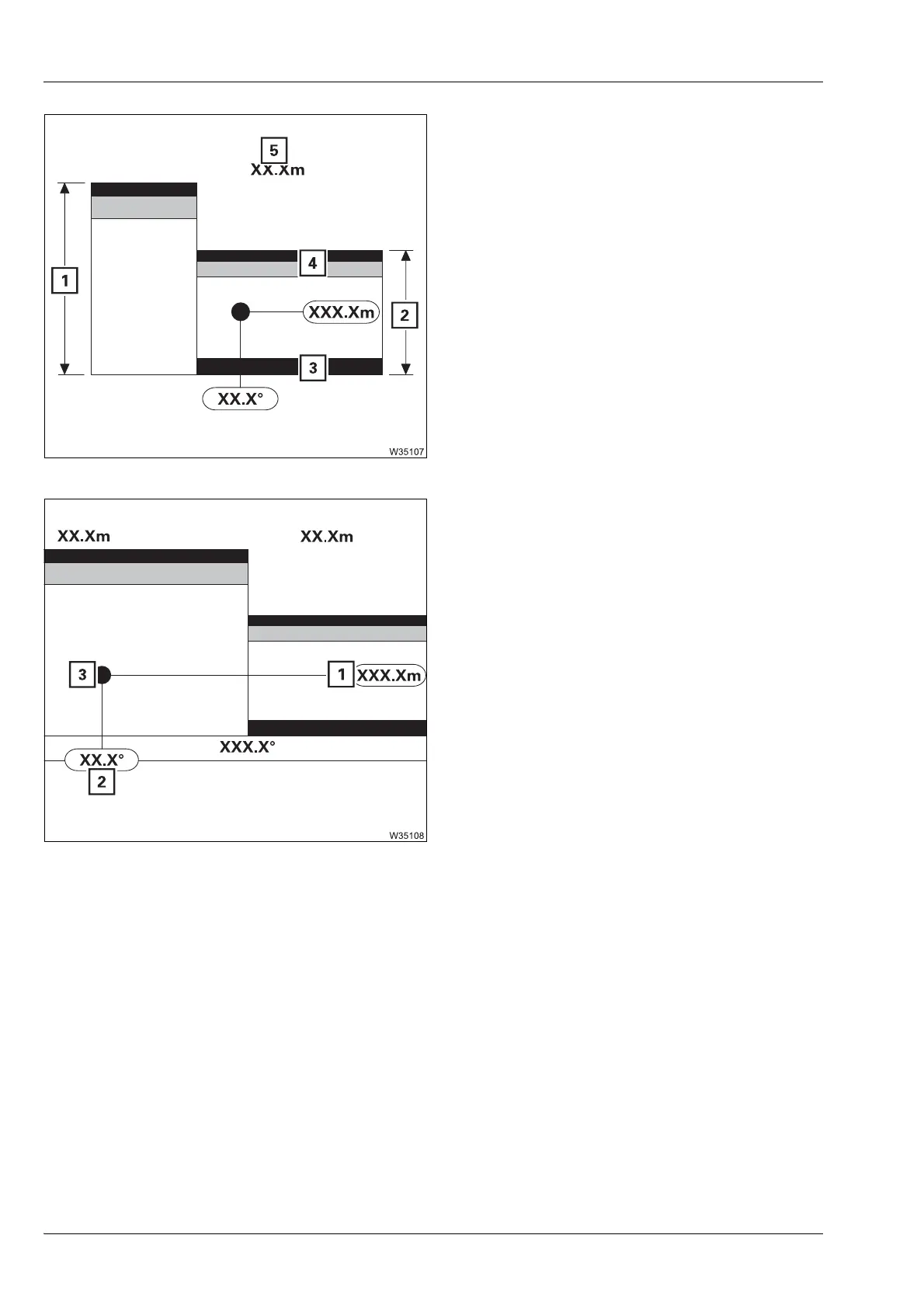

Maximum permissible working radius display
Shows the maximum permissible working radius
(5) for each slewing range.
Current working radius display
Current slewing angle display
Current position display
– When slewing
The display (3) remains at the current position. The chart moves a correspond-
ing distance to the right or left.
– When telescoping or derricking
The diagram remains at the current position. The display (3) moves a corre-
sponding distance up or down.
à Slewing range type Standard, p. 11 - 57
à MAXbase slewing range type, p. 11 - 59
1 Display area – always corresponds to the
largest maximum working radius (5)
2 Maximum permissible working radius in
the corresponding slewing range with the
currently lifted load
3 White – limit region for minimum permissible
working radius (display only with active
limitation)
4 Red/yellow – limit region for maximum
permissible working radius
1 Display occurs in the same manner as in the
Monitoring menu;
à p. 11 - 53.
2 Display occurs in the same manner as in the
Monitoring menu;
à p. 11 - 54.
3 Shows the current position of the boom head
in the slewing range and working radius
range.
