Operating elements for crane operation
9.2 Brief description of the operating elements
Operating manual 3 302 819 en 9 - 133
GMK3060
13.12.2018

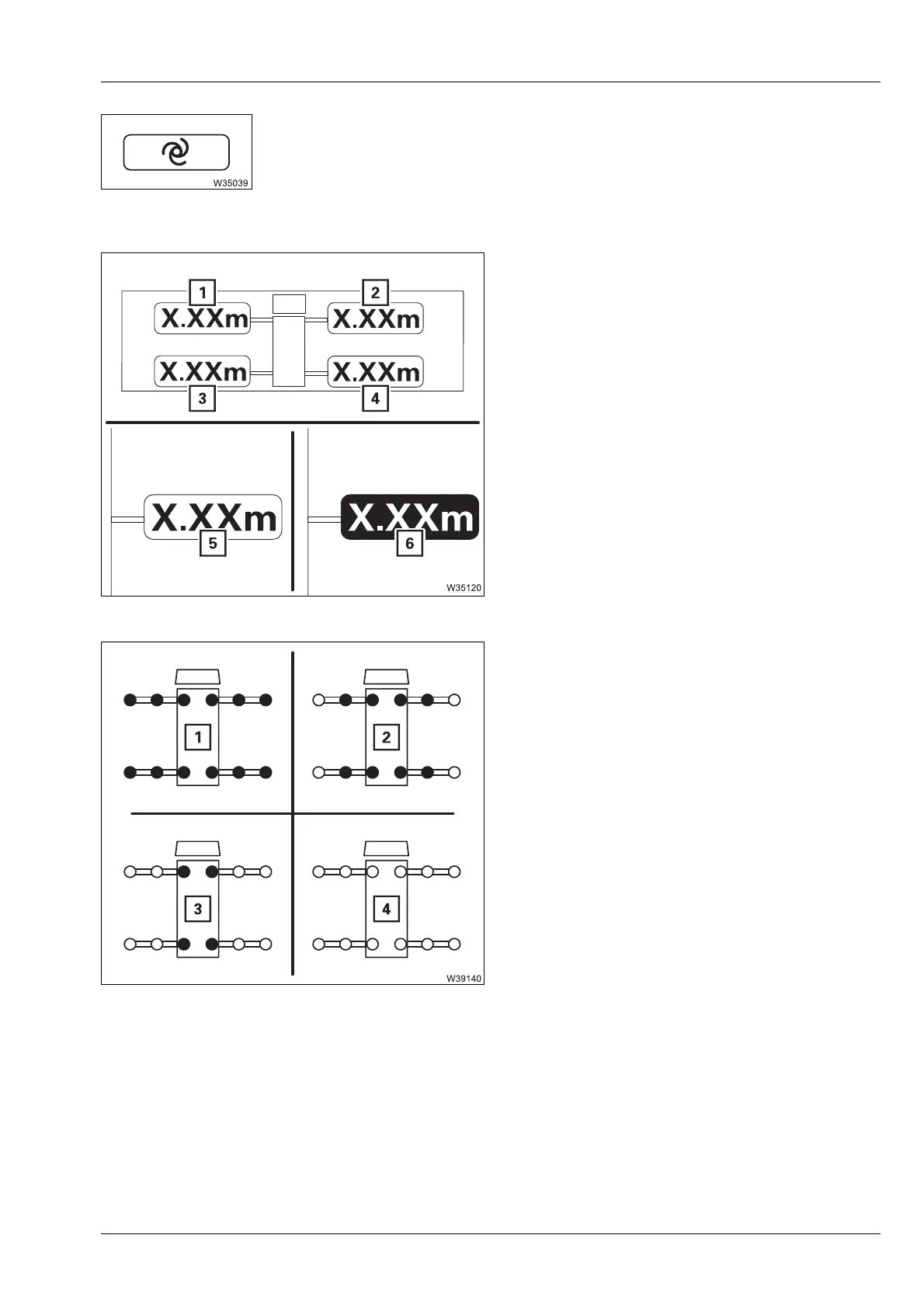

Accept the measured outrigger span
Select and confirm – the outrigger span provided by the outrigger span
monitoring is adopted and shown on the Enter outrigger span display;
à Confirming the rigging mode and lifting capacity table, p. 11 - 45.
Enter outrigger span
(MAXbase)
The values are entered individually for outrigger
beams (1) to (4).
In input mode – select and confirm the individual
widths.
Outrigger span monitoring display
(MAXbase)
à Entering the rigging mode, p. 11 - 36
Enter outrigger span
(Standard)
The selection occurs simultaneously for all
outrigger beams – selected outrigger spans
are orange.
In input mode – select and confirm the outrigger
span
à Entering the rigging mode, p. 11 - 36
s
5 Measured outrigger span = required width
6 Measured outrigger span ≠required
outrigger span
1 6.825 x 6.20 m (22.4 x 20.3 ft)
2 6.825 x 4.40 m (22.4 x 14.4 ft)
3 6.825 x 2.32 m (22.4 x 7.6 ft)
4 Free on wheels – symbol is grey
