Operating elements for crane operation
9.2 Brief description of the operating elements
9 - 134 3 302 819 en Operating manual
GMK3060
13.12.2018

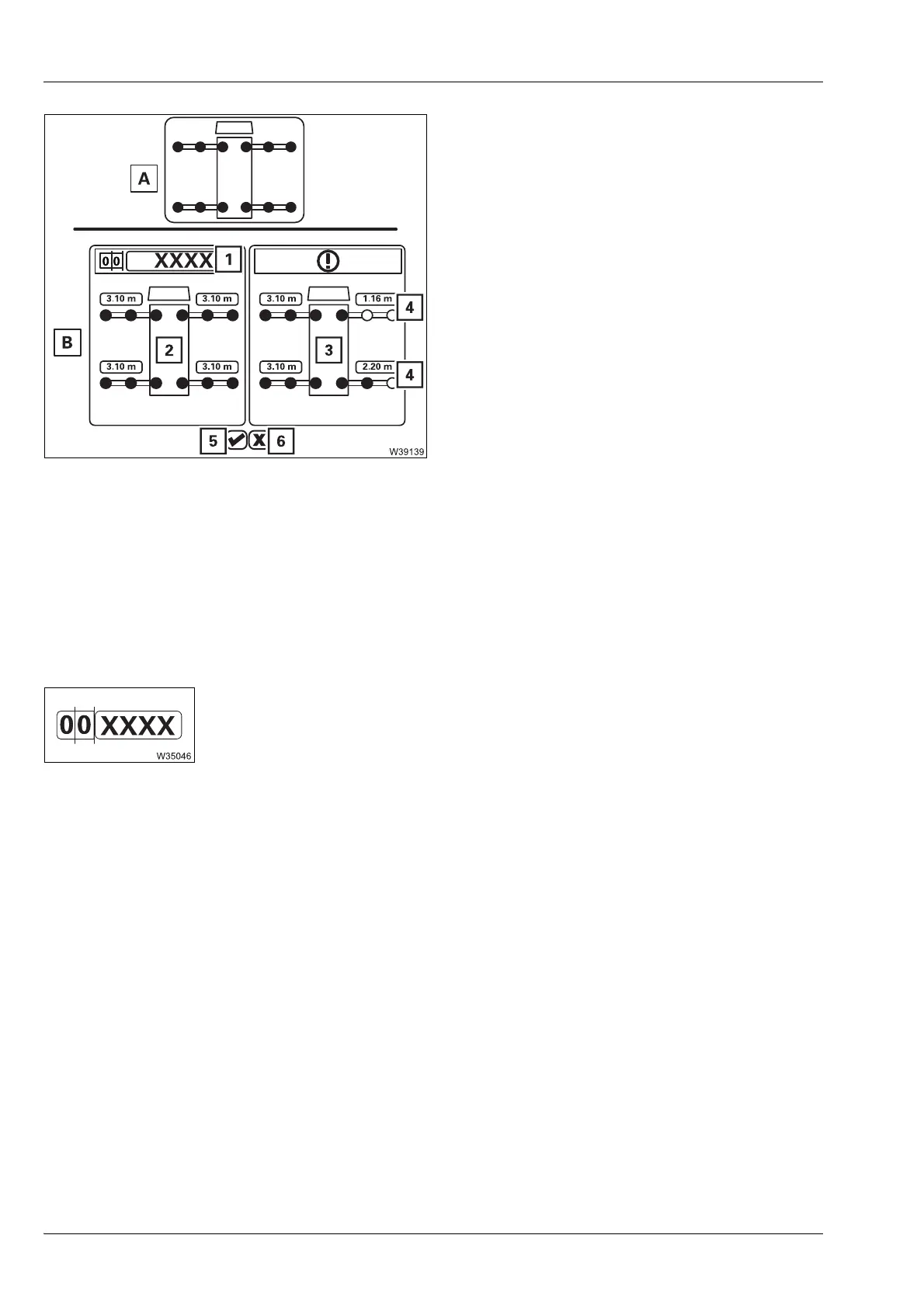

Outrigger span monitoring display
(Standard)
Query after confirming the rigging mode.
à Entering the rigging mode, p. 11 - 36
Enter RCL code
In input mode – select and confirm the RCL code.
The corresponding rigging mode is displayed;
à p. 11 - 44.
A Measured outrigger span = required width
B Measured outrigger span ≠ required span
(query menu)
2 Required outrigger span – for RCL
code (1)
3 Measured outrigger span
4 Outrigger span not OK for RCL Code (1)
– red
5 Confirmation
Rigged outrigger span = outrigger
span (2),
Crane operation enabled
6 Confirmation
Rigged outrigger span ≠ outrigger
span (2)
Crane operation not enabled
