Operating elements for crane operation
9.2 Brief description of the operating elements
Operating manual 3 302 819 en 9 - 135
GMK3060
13.12.2018
In the Pre-selection telescoping menu
à Pre-selecting telescoping, p. 11 - 44
Enter desired parameter
In input mode – select and confirm parame-
ters (1), (2).
The corresponding table is displayed.
Pre-selection telescoping
Table sorted by columns – select and confirm the
desired symbol.
During the telescoping duration, the required tel-
escoping times are compared and provided with
values between 1 (shortest time) and 5 (longest
time).
Preselect the telescope status – select and
confirm the desired line, e.g. line (3).
– The Pre-selection telescoping menu closes
– The Enter rigging mode/telescope status menu
opens
à Pre-selecting telescoping, p. 11 - 44
s

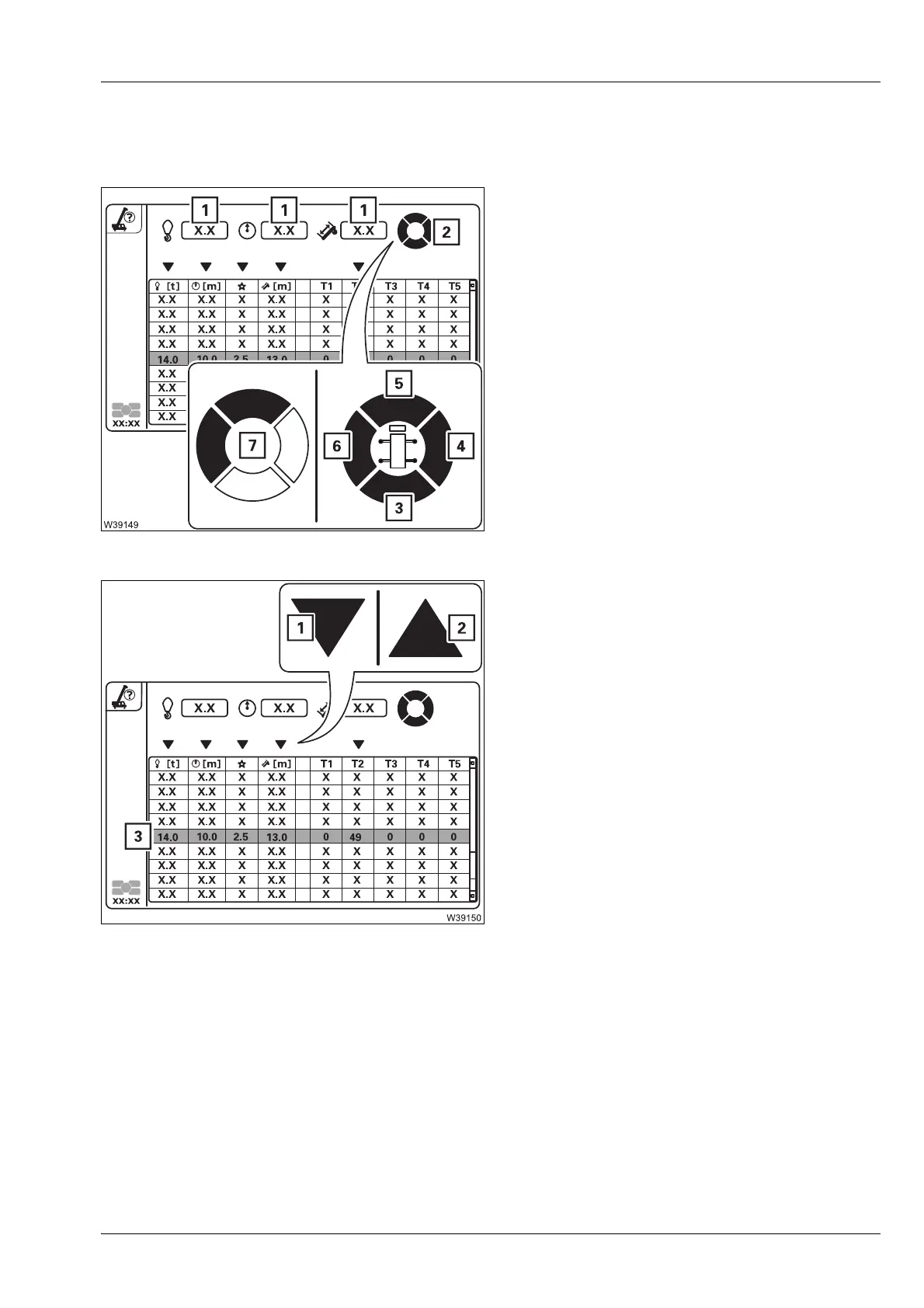

1 Selection of numerical values
2 Selection by marking the segments –
marked segments are black
3 Backwards
4 To the right
5 Forwards
6 To the left
7 Example for selecting the slewing range
to the front and to the left
1 Descending sorting
2 Ascending sorting
To Next Page
