Crane operation
11.1 Before operating the crane
11 - 6 3 302 819 en Operating manual
GMK3060
13.12.2018
Checking the
position of the
hoist ropes
The hoist mirrors are folded out and adjusted or the camera at the hoists is
folded out
à Folding the mirrors in and out, and adjusting them, p. 12 - 105,
à Camera on the hoists, p. 12 - 109.

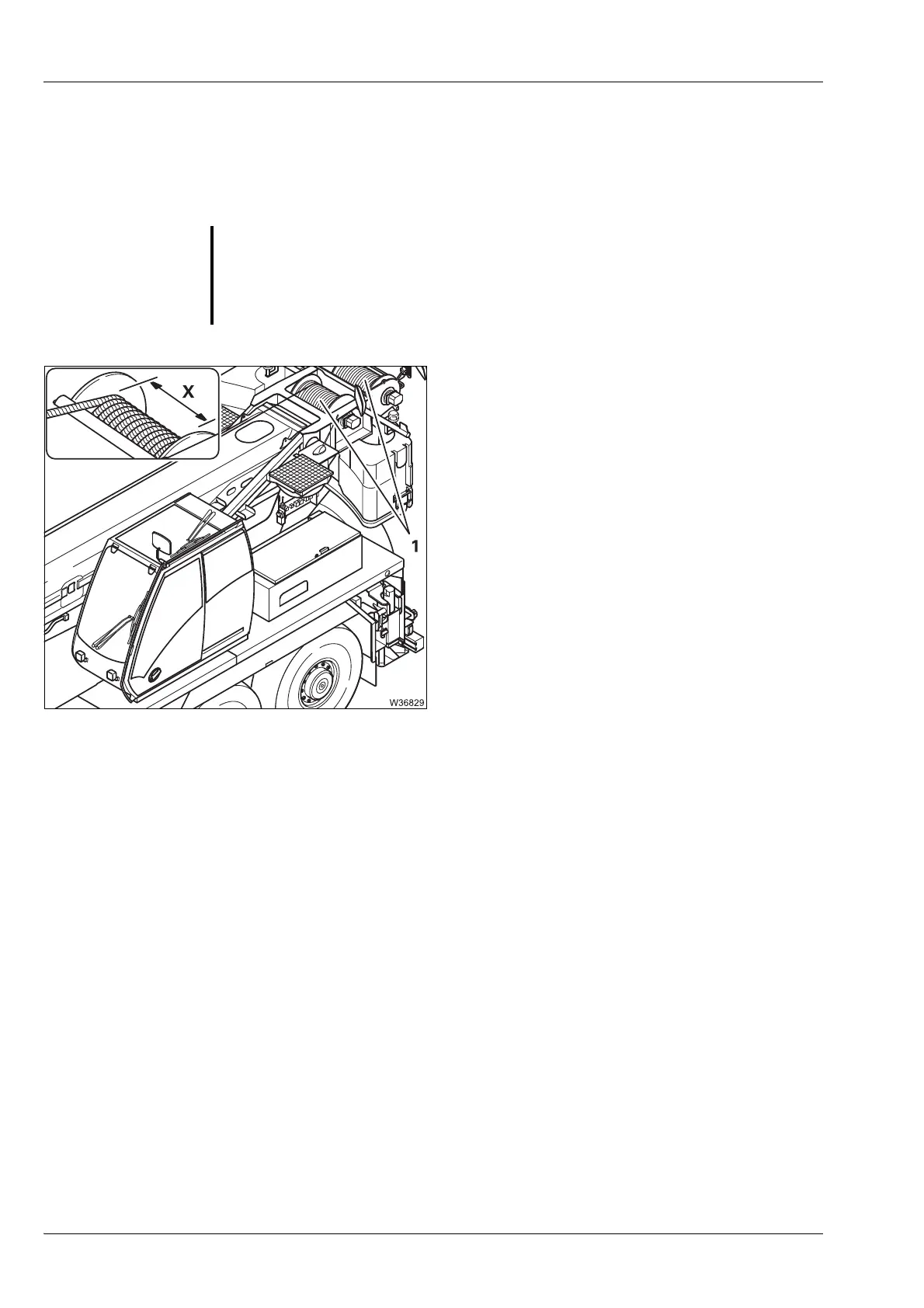

• Always check the entire length of the winding of
the ropes (1).
• Slowly perform the Lower movement until the
rope has moved over a complete width (X) of
the rope drum.
– The rope must be evenly wound.
– The rope turns on the drum must be evenly
spaced, 0 to 2 mm (0 to 0.08 in) apart.
– The cross-over points must be offset by
approx. 180°.
H
The top rope lines are laid over the next lower rope lines at the cross-over points.
G
Risk of crushing due to turning rope drum!
Keep away from the rope drum while it is turning.
This will prevent your limbs being drawn in or crushed.
