Rigging work
12.8 Other rigging work
Operating manual 3 302 819 en 12 - 109
GMK3060
13.12.2018
Camera on
the hoists
This section describes the CCS display as the monitor. Depending on the version,
a separate monitor may also be present.

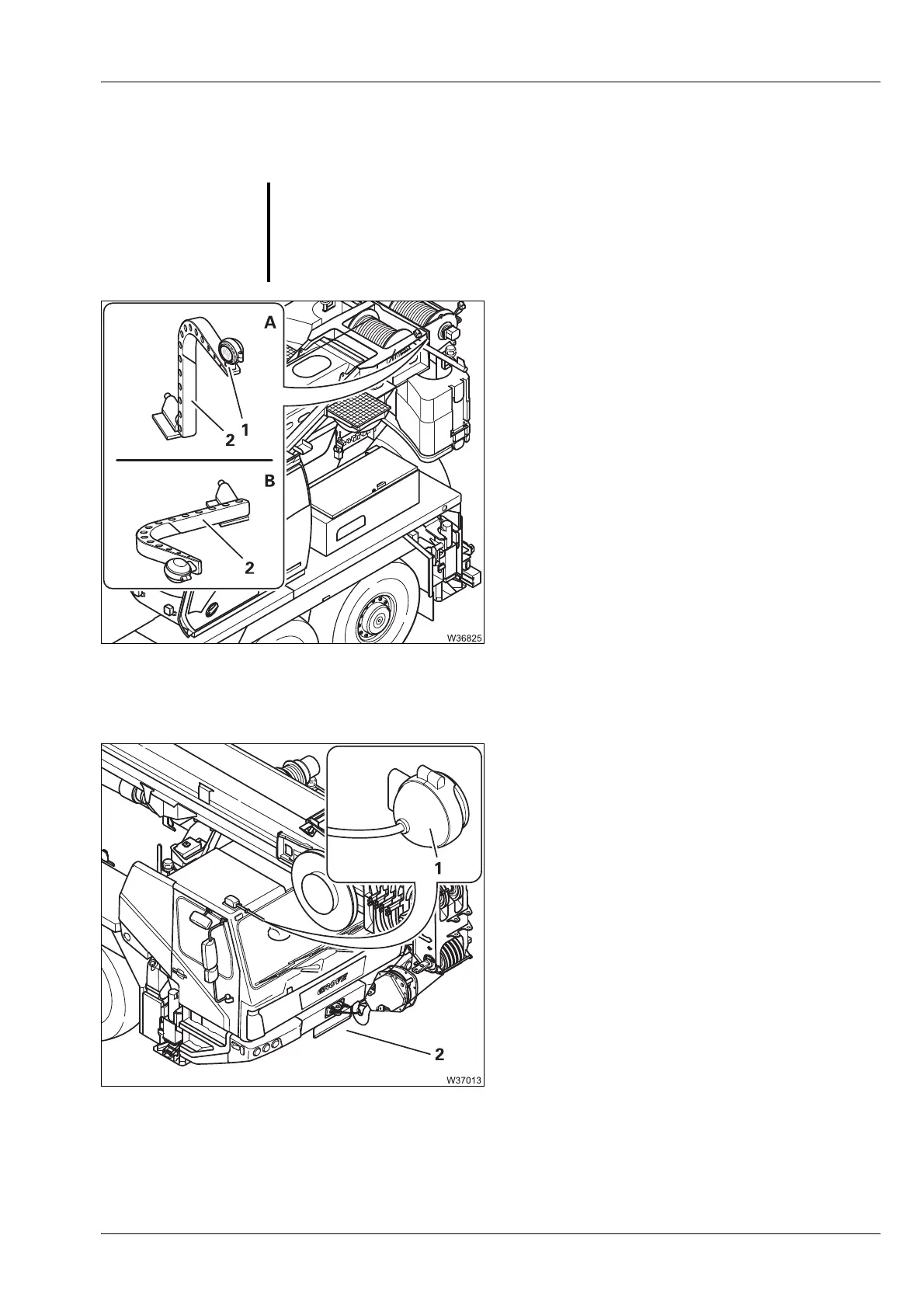

A camera (1) transmits an image of the main and
auxiliary hoists to the display in the crane cab.
(A) – For crane operation you must swing out the
holder (2).
(B) – For driving you must fold in the holder (2).
Camera on the
driver's cab
A camera (1) allows viewing of the non-visible
area in front of the driver's cab.
Depending on the version, the camera image
is shown on the CCS display or on a separate
monitor.
• Adjust the camera (1) to show the area (2) in
front of the bumper on the display or monitor.
s
G
Risk of accidents due to exceeding the permissible dimensions
Always fold in the camera before driving. When the camera is extended it
exceeds the overall height specified for on-road driving.
