Crane operation
11.4 Operation of the rated capacity limiter
Operating manual 3 302 819 en 11 - 37
GMK3060
13.12.2018
Enter the slewing
range type
Possible types are the Standard slewing range type and, with the corresponding
equipment, the MAXbase slewing range type.
Different lifting capacity tables apply depending on the entered slewing range
type and these then influence further input of the rigging mode.

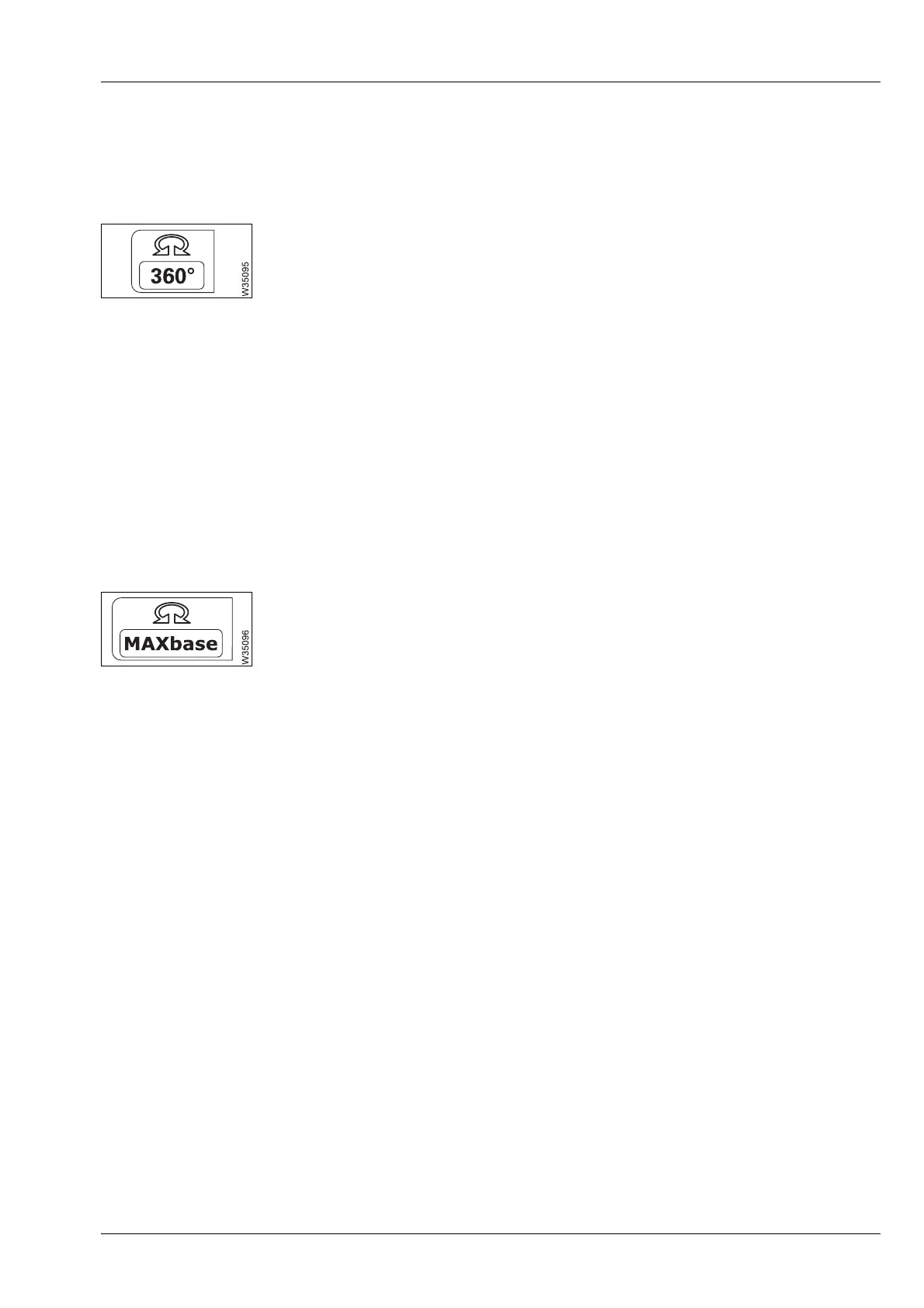

– Standard slewing range type
The standard lifting capacity tables provided in printed form with the truck crane
apply. All rigging modes listed there can be entered.
– The rigging mode can be specified via entry of the reeving and RCL code or
via the individual components.
– In the case of individual components, the outriggers are always entered as
complete outrigger span.
– In the case of individual components, the slewing range is entered
according to the Lifting capacity table.
H
An overview of all enabled Standard outrigger spans is provided in the section
Outriggers – Overview – Standard slewing range type;
à p. 12 - 18.
– MAXbase slewing range type
The MAXbase tables apply, which are only provided in digital form due to the
wide diversity of configurations. All rigging modes listed there can be entered.
– The rigging mode is entered via the individual components.
– The outriggers are entered as individual widths for each outrigger beam.
– The enabled slewing range is displayed, divided into four areas with
different lifting capacities.
H
An overview of all enabled MAXbase outrigger spans is provided in the section;
Outriggers – Overview – MAXbase slewing range type,
à p. 12 - 22.
