Crane operation
11.4 Operation of the rated capacity limiter
11 - 50 3 302 819 en Operating manual
GMK3060
13.12.2018

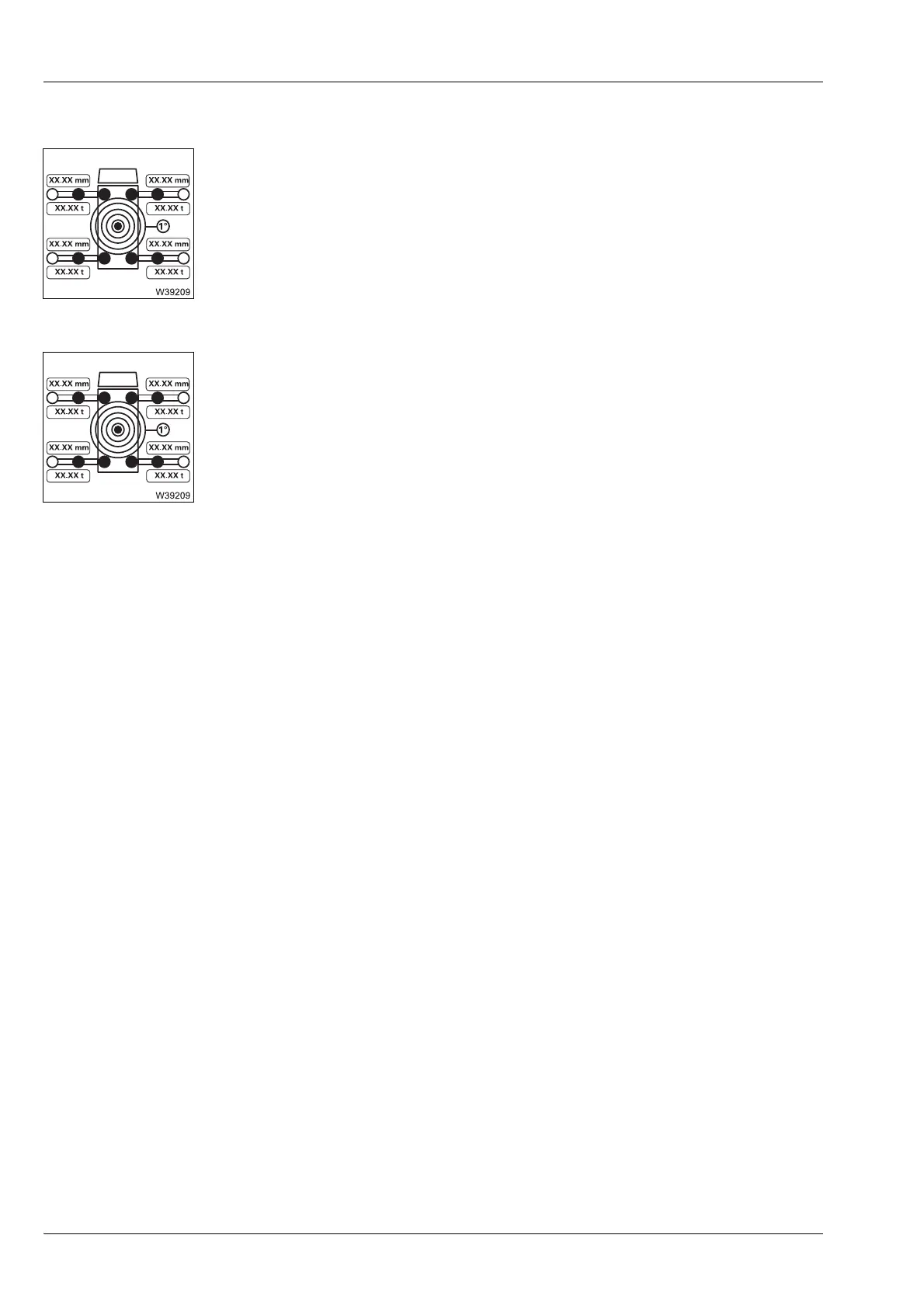

Outrigger span display
– For versions without outrigger span monitoring
– Numerical values – show the individual widths of the outrigger beams for the
confirmed rigging mode, in metres (m) or feet (ft).
With a confirmed operating position of Free on wheels, the value 1.035 m
(3.40 ft) is displayed.
– Visual display – shows the required outrigger span in orange.
With a confirmed operating position of Free on wheels, all displays are grey.
– For versions with outrigger span monitoring
– Numerical values – show the individual widths of the outrigger beams for the
confirmed rigging mode, in metres (m) or feet (ft).
– Visual display – shows the required outrigger span in orange. With a con-
firmed operating position of Free on wheels, all displays are grey. For the
Standard slewing range type only – the display is red when the measured
outrigger span deviates from the required outrigger span.
