11.4 Operation of the rated capacity limiter
Operating manual 3 302 819 en 11 - 51
GMK3060
13.12.2018

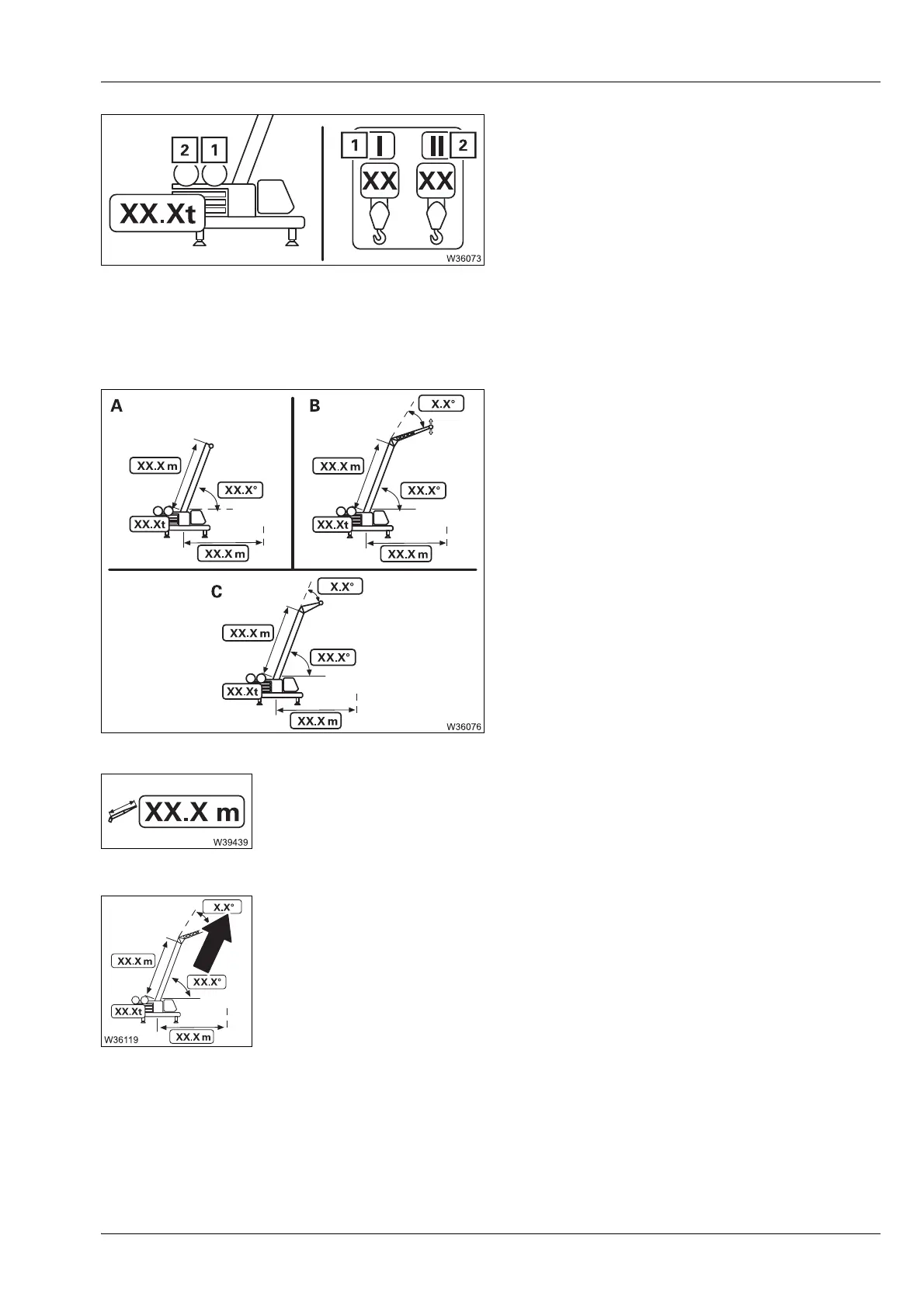

Display of reeving used
Boom system display
Shows the boom system corresponding to the
confirmed rigging mode.
Lattice extension display – length
Shows the required length of lattice extension according to the confirmed rigging
mode – in metres (m) or feet (ft).
Lattice extension display – angle
Only for manually inclinable lattice extensions
Shows the required angle of the lattice extension for the confirmed rigging mode.
s
1 Main hoist
2 Auxiliary hoist
Orange: Used
1)
Grey: Not used
1)
The value on the Maximum load display applies to this reeving.
You may need to switch over the display if necessary;
à p. 11 - 52.
A Main boom
B Swing-away lattice extension
1)
/ boom
extension
1)
C Heavy load lattice extension
1)
1)
For the Standard slewing range type only.
The lattice extension must be electrically
connected.
