11.4 Operation of the rated capacity limiter
Operating manual 3 302 819 en 11 - 55
GMK3060
13.12.2018

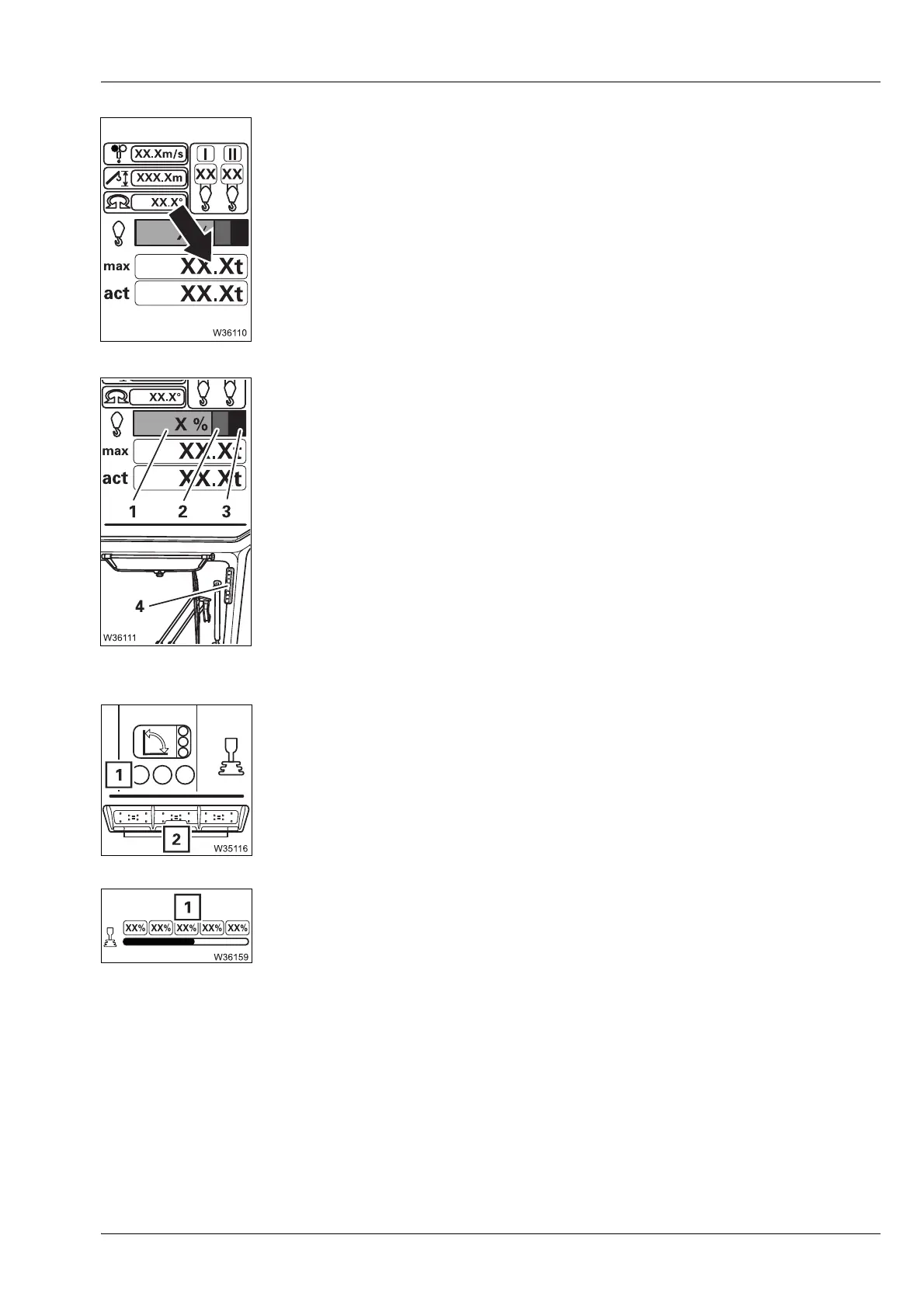

Maximum load display
Shows the maximum load that can be lifted in the current rigging mode with the
current working radius.
Values are displayed in tons (t) or in pounds (lbs) – for the confirmed rigging
mode.
The corresponding symbol (I) or (II) flashes when the lifting capacity is reduced
due to the entered reeving.
Current degree of utilization display
The degree of utilisation shows the weight of the current load as a percentage of
the maximum possible load.(degree of utilisation= 100 x current load/maximum
load).
The display has three coloured regions.
Depending on the equipment, the degree of utilisation is shown on a display (4)
with coloured lamps.
RCL status display
The green, yellow and red displays (1) are identical to the status displays (2) on
the outside of the truck crane.
Current telescope status display
The display (1) shows the current telescoping – from left to right for telescopic
sections
I to V. When the display is coloured then the telescoping cylinder head
is in this telescopic section.
s
1 Green: 0 - 90%
2 Yellow: approx. 90 - 100% – early warning
3 Red: greater than 100% – shutdown
– Green: Telescoping cylinder locked
– Green/Yellow: Flashing – intermediate position
– Red: Telescoping cylinder unlocked
