Crane operation
11.7 Working range limiter
Operating manual 3 302 819 en 11 - 141
GMK3060
13.12.2018

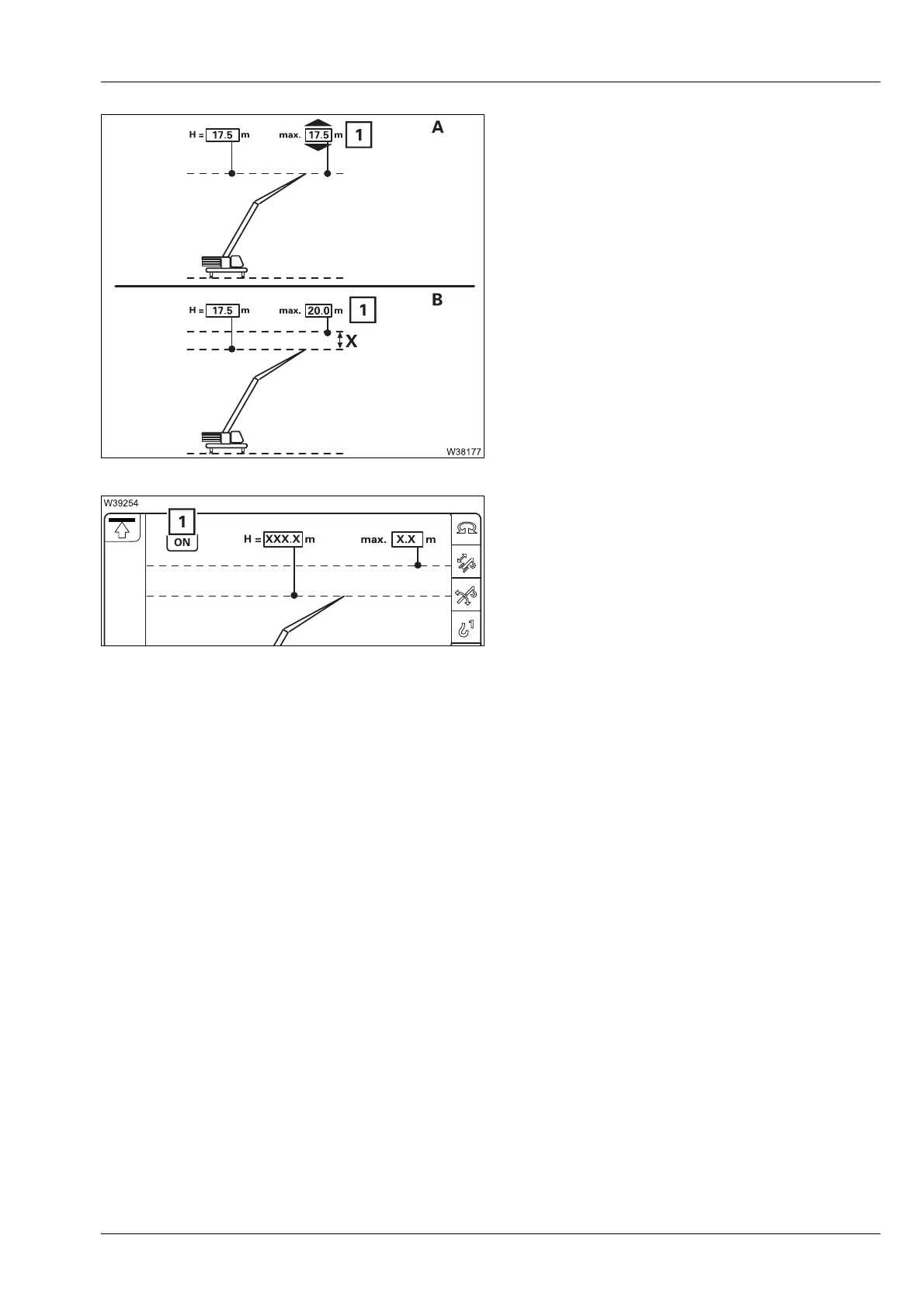

Entering limit values manually
• (A) – Select and confirm the display (1).
• (B) – Enter the limit value, e.g. 20.0 m and
confirm the input.
Display (1) shows the newly entered limit value.
The distance (X) shows the current distance to
the shutdown range.
Switch on monitoring
• Select and confirm the symbol (1).
The Overall height monitoring is switched on.
H
The movement towards the shutdown limit is continually reduced until reaching a
standstill. The current limitation is displayed;
à On the RCL display, p. 11 - 138,
à On the CCS display, p. 11 - 57.
