Rigging work
12.4 Outriggers – Overview – MAXbase slewing range type
Operating manual 3 302 819 en 12 - 23
GMK3060
13.12.2018

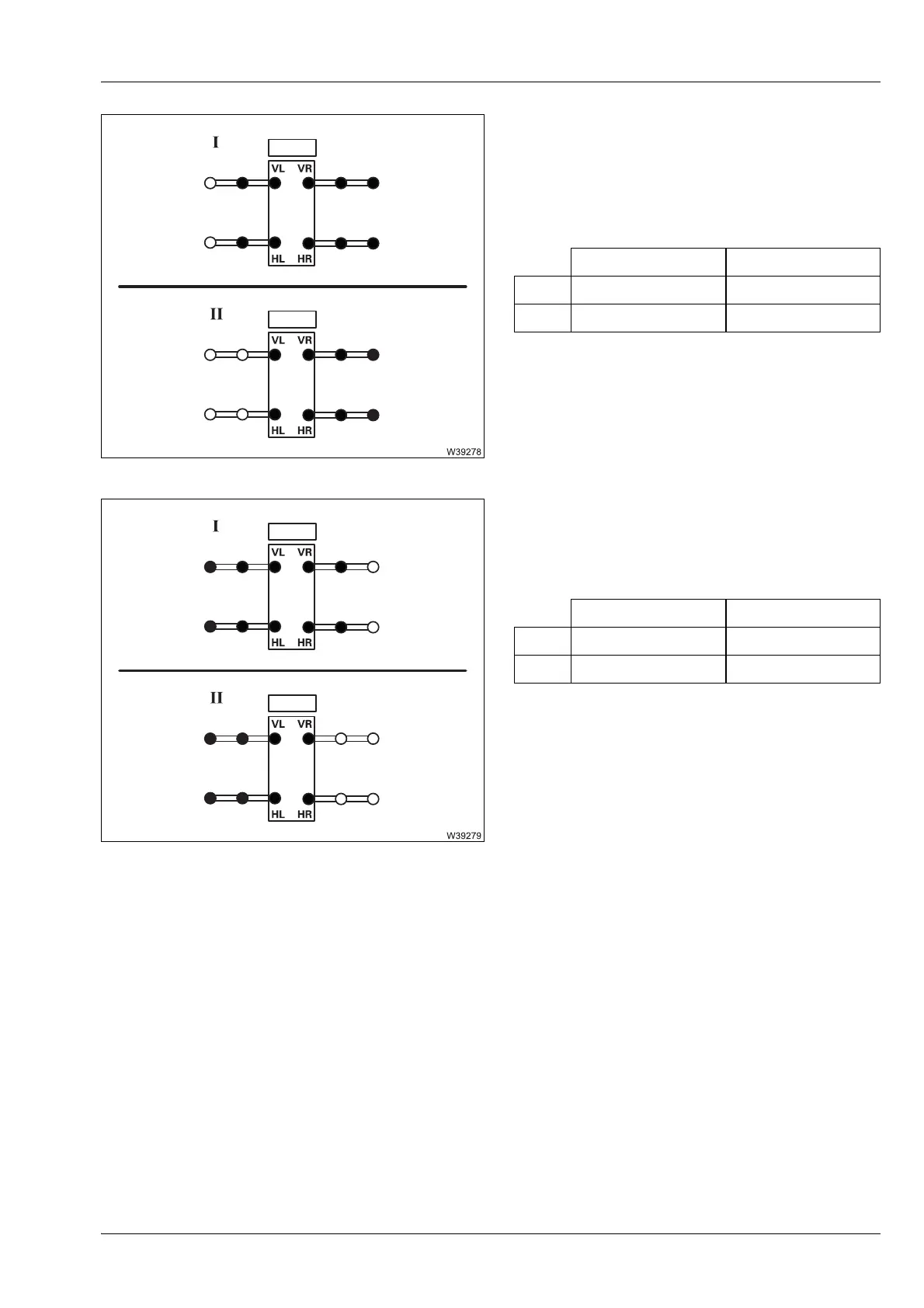

Right / Left
– Right greater than left
The outrigger span is the same at the left and the
same at the right. The table shows the permissi-
ble combinations.
– Left greater than right
The outrigger span is the same at the left and the
same at the right. The table shows the permissi-
ble combinations.
There are no separate lifting capacity tables for
this type. The lifting capacities for the Right greater
than left type are enabled in a correspondingly
mirrored slewing range;
à Lifting capacities and
slewing ranges for outrigger spans without separate
lifting capacity tables, p. 11 - 32.
s
FR / RR FL / RL
I 3.100 m (10.2 ft) 2.200 m (7.2 ft)
II 3.100 m (10.2 ft) 1.160 m (3.8 ft)
FR / RR FL / RL
I 2.200 m (7.2 ft) 3.100 m (10.2 ft)
II 1.160 m (3.8 ft) 3.100 m (10.2 ft)
