12.4 Outriggers – Overview – MAXbase slewing range type
12 - 24 3 302 819 en Operating manual
GMK3060
13.12.2018
Front / rear

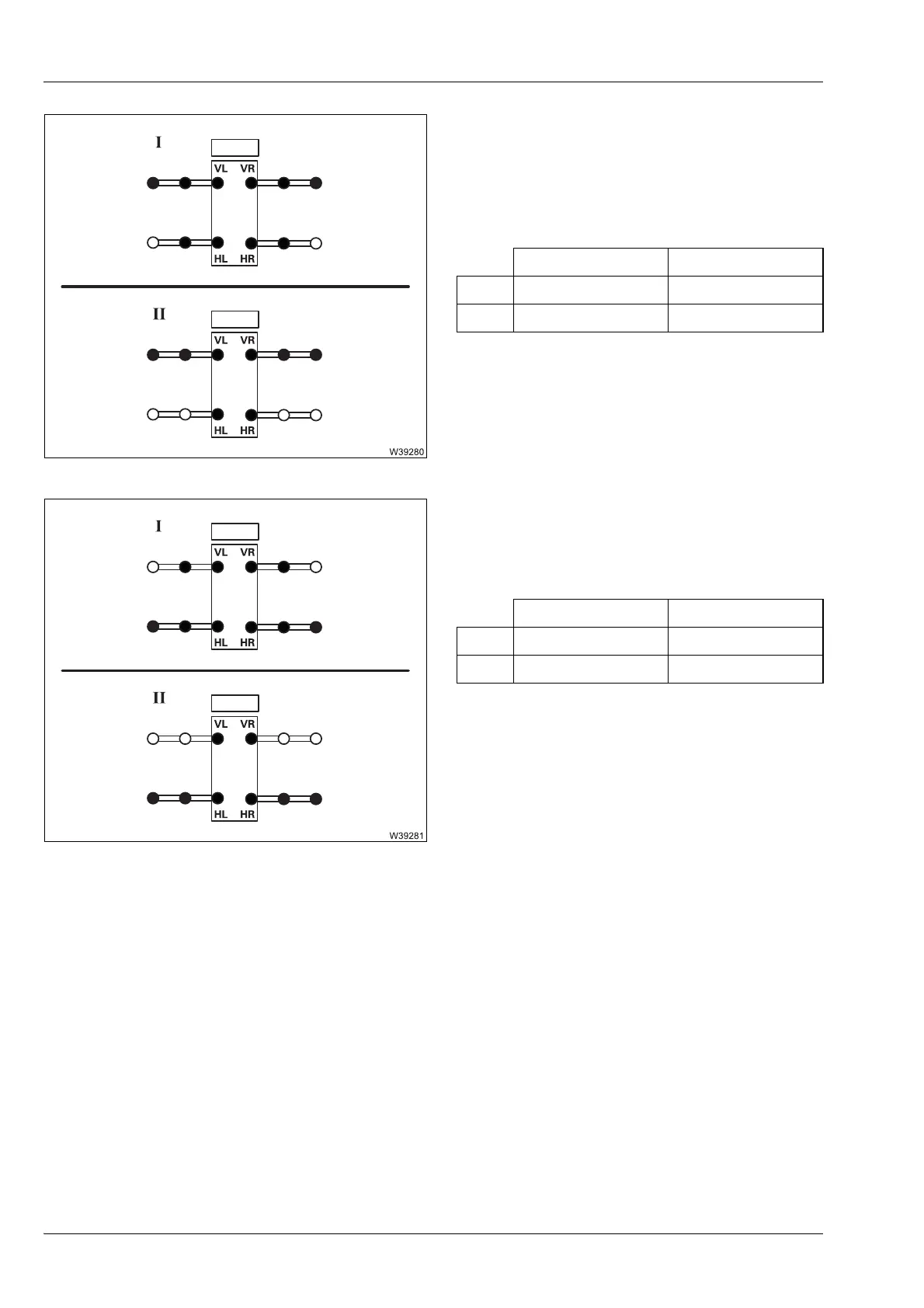

– Front greater than rear
The front outrigger beams are extended further
than the rear outrigger beams. The table shows
the permissible combinations.
– Rear greater than front
The rear outrigger beams are extended further
than the front outrigger beams. The table shows
the permissible combinations.
FR / FL RR / RL
I 3.100 m (10.2 ft) 2.200 m (7.2 ft)
II 3.100 m (10.2 ft) 1.160 m (3.8 ft)
FR / FL RR / RL
I 2.200 m (7.2 ft) 3.100 m (10.2 ft)
II 1.160 m (3.8 ft) 3.100 m (10.2 ft)
