Manitowoc GROVE GMK3060 User Manual

Rigging work
12.4 Outriggers – Overview – MAXbase slewing range type
Operating manual 3 302 819 en 12 - 25
GMK3060
13.12.2018
Three / One

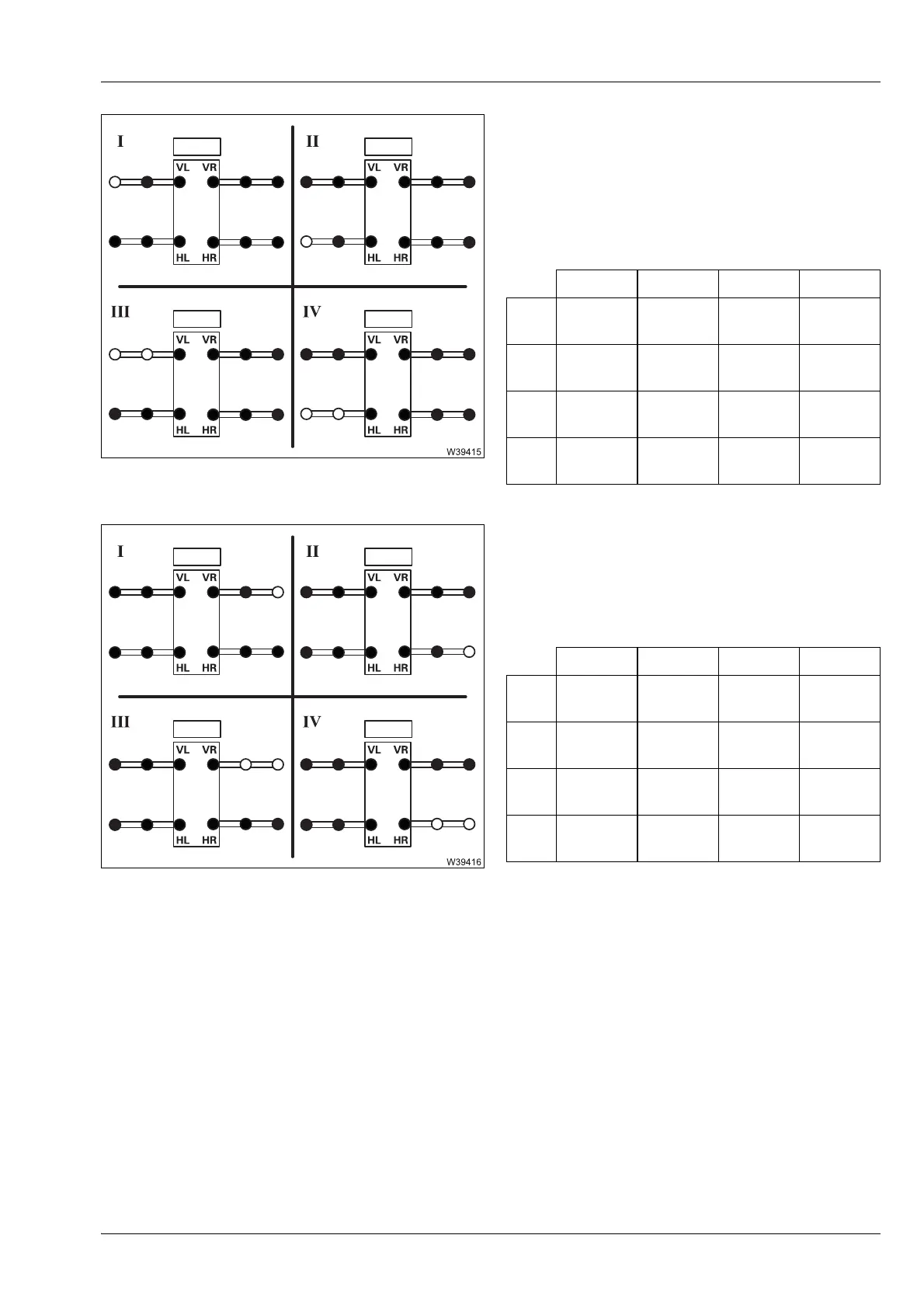

– One outrigger span smaller – Left
Three outrigger beams are extended the same
distance and one outrigger beam has a smaller
outrigger span. The table shows the released
combinations.
– One outrigger span smaller – Right
Three outrigger beams are extended the same
distance and one outrigger beam at the right side
has a smaller outrigger span. The table shows the
released combinations.
There are no separate lifting capacity tables for this type. The lifting capacities
for the One outrigger beam retracted – left type are enabled in a correspondingly
mirrored slewing range;
à Lifting capacities and slewing ranges for outrigger spans
without separate lifting capacity tables, p. 11 - 32.
FR FL RR RL
I
3.100 m
(10.2 ft)
2.200 m
(7.2 ft)
3.100 m
(10.2 ft)
3.100 m
(10.2 ft)
II
3.100 m
(10.2 ft)
3.100 m
(10.2 ft)
3.100 m
(10.2 ft)
2.200 m
(7.2 ft)
III
3.100 m
(10.2 ft)
1.160 m
(3.8 ft)
3.100 m
(10.2 ft)
3.100 m
(10.2 ft)
IV
3.100 m
(10.2 ft)
3.100 m
(10.2 ft)
3.100 m
(10.2 ft)
1.160 m
(3.8 ft)
FR FL RR RL
I
2.200 m
(7.2 ft)
3.100 m
(10.2 ft)
3.100 m
(10.2 ft)
3.100 m
(10.2 ft)
II
3.100 m
(10.2 ft)
3.100 m
(10.2 ft)
2.200 m
(7.2 ft)
3.100 m
(10.2 ft)
III
1.160 m
(3.8 ft)
3.100 m
(10.2 ft)
3.100 m
(10.2 ft)
3.100 m
(10.2 ft)
IV
3.100 m
(10.2 ft)
3.100 m
(10.2 ft)
1.160 m
(3.8 ft)
3.100 m
(10.2 ft)
