Rigging work
12.5 Operating the outriggers
12 - 34 3 302 819 en Operating manual
GMK3060
13.12.2018

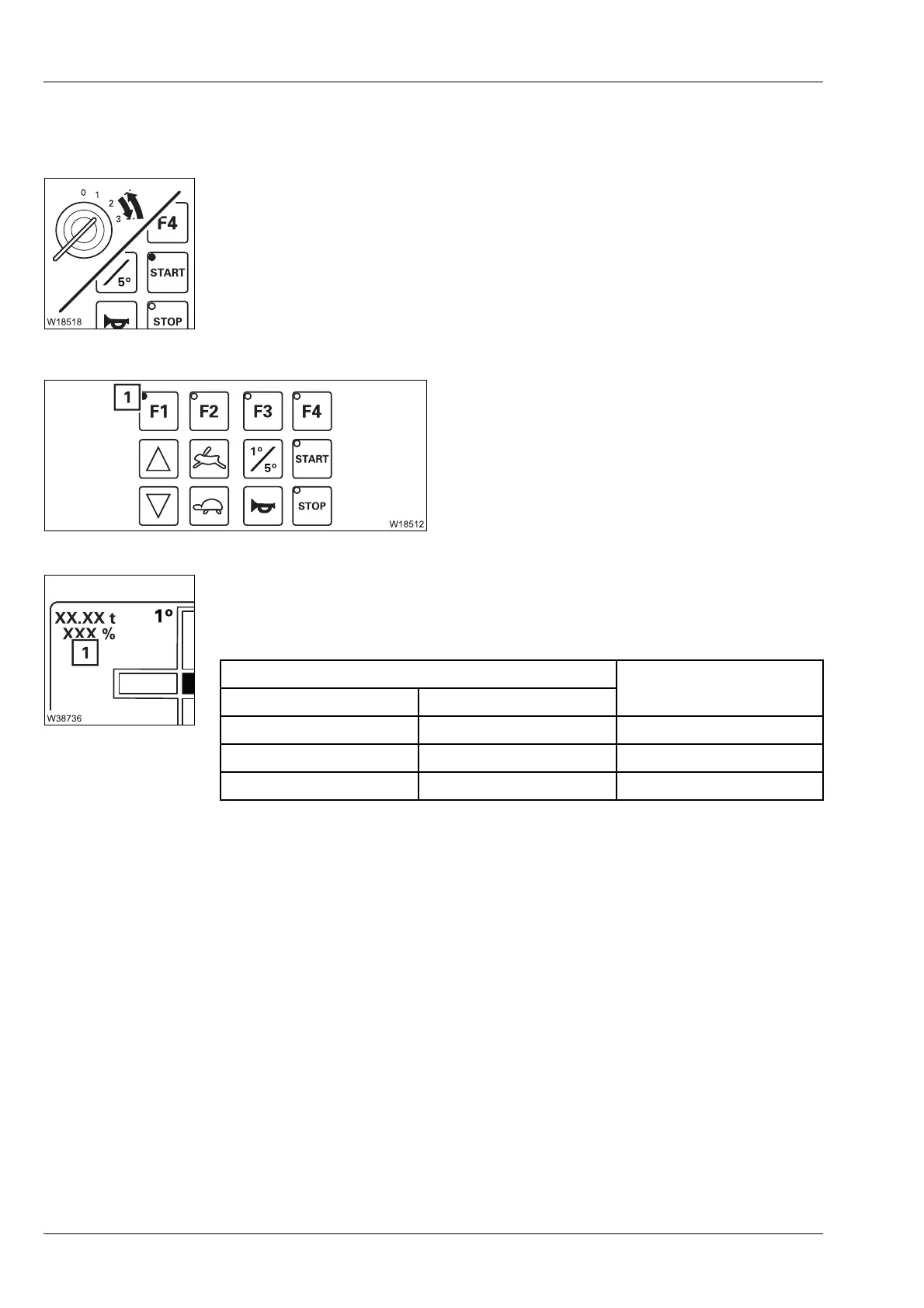

From the
control units
Starting the engine
• Start the engine from the driver's cab (à p. 4 - 12) or from the outrigger control
units (
à p. 4 - 17).
Switching on the lighting
Only the lamp (1) lights up after opening the door.
• Press any button.
The lights are switched on.
Display of the outrigger span
The table gives an overview of what percent (1) you have to move the outrigger
beam at the control unit to get to the desired outrigger span.
Moving the outrigger beams
H
You can only operate the outrigger beams to the left and right of the control unit
on the operator's side.
• Observe the safety instructions for operating the outrigger beams;
à p. 12 - 33.
Length specifications Per cent
Overall widths Individual widths
6.20 m (20.3 ft) 3.10 (10.2 ft) 100%
4.40 m (14.4 ft) 2.20 (7.2 ft) 51%
1)
2.32 m (7.6 ft) 1.16 (3.8 ft) 0%
1)
Specification in the MAXbase lifting capacity table – 50%
