Rigging work
12.5 Operating the outriggers
Operating manual 3 302 819 en 12 - 35
GMK3060
13.12.2018

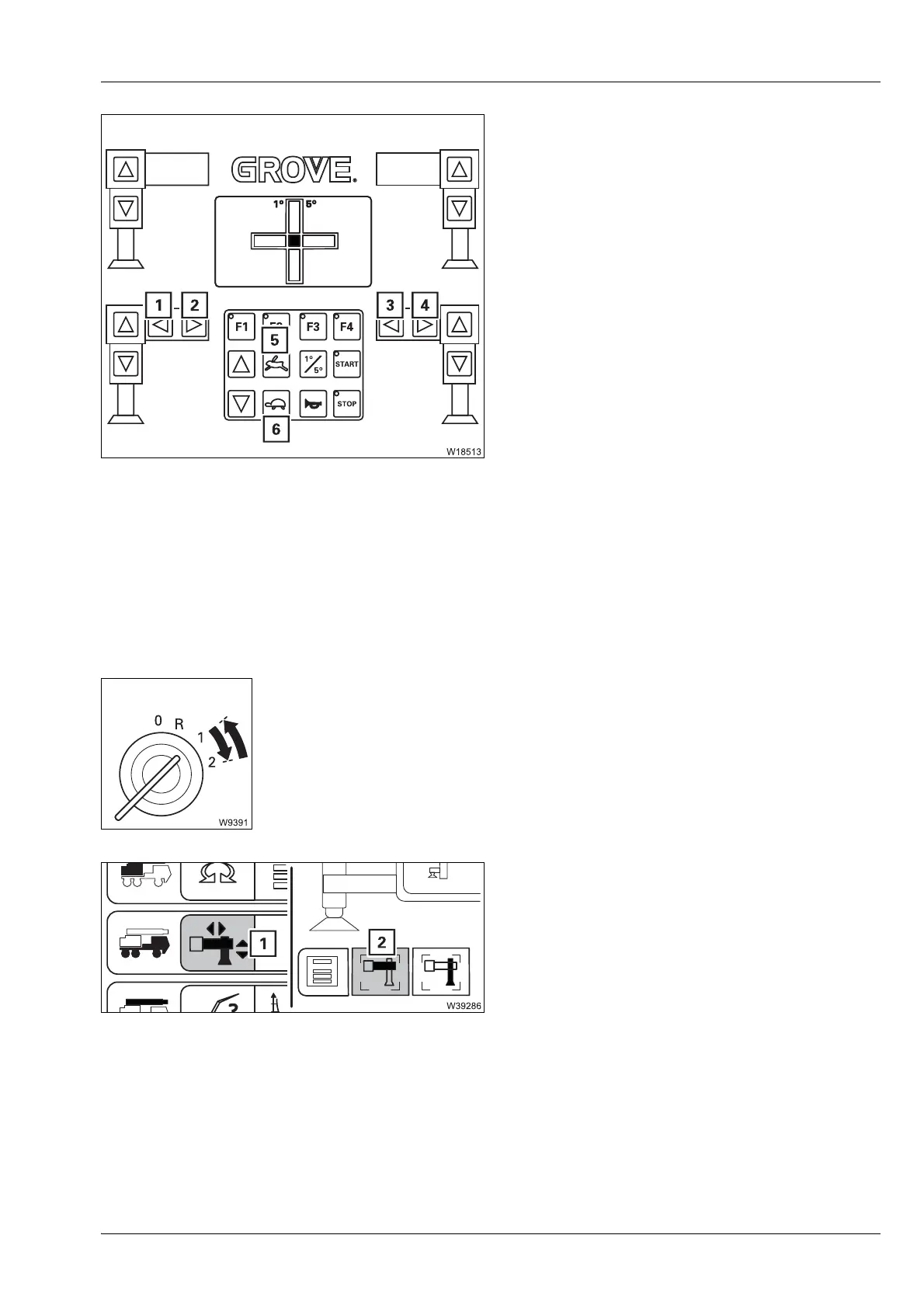

• Press the button
• Additionally press the button for the desired
outrigger beam.
The outrigger beams move until you let go of the respective button or until the
respective end position has been reached.
From the
crane cab
The following operating elements are found in the Outrigger menu.
The parking brake is engaged.
Starting the engine
• Start the engine from the crane cab; à p. 10 - 3.
• Switch off the slewing gear; à p. 11 - 126.
Opening the menu
• Open the Outrigger menu (1).
• Select and confirm the symbol (2) – Move
outrigger beams.
s
5 For high-speed mode
6 For normal speed.
1 Extend left
2 Retract left
3 Retract right
4 Extend right
1 + 4 Extend both
2 + 3 Retract both
