Rigging work
12.5 Operating the outriggers
12 - 36 3 302 819 en Operating manual
GMK3060
13.12.2018

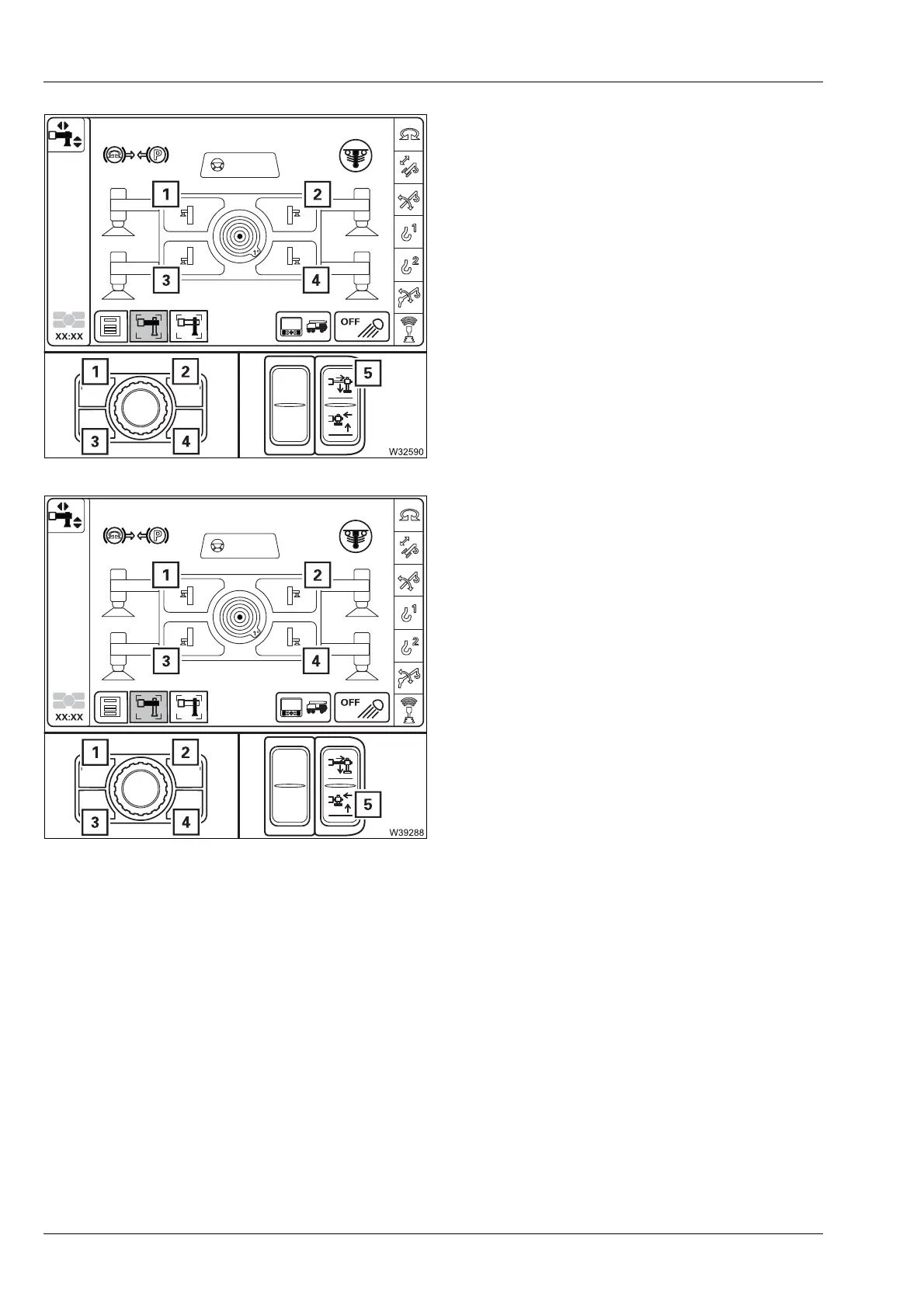

Extending
• Press the button for the desired outrigger
beam.
• Press the button (5) in at the top – the selected
outrigger beam extends.
Retracting
• Press the button for the desired outrigger
beam.
• Press the button (5) in at the bottom – the
selected outrigger beam retracts.
1 Front left
2 Front right
3 Rear left
4 Rear right
1 Front left
2 Front right
3 Rear left
4 Rear right
