Rigging work
12.5 Operating the outriggers
12 - 44 3 302 819 en Operating manual
GMK3060
13.12.2018

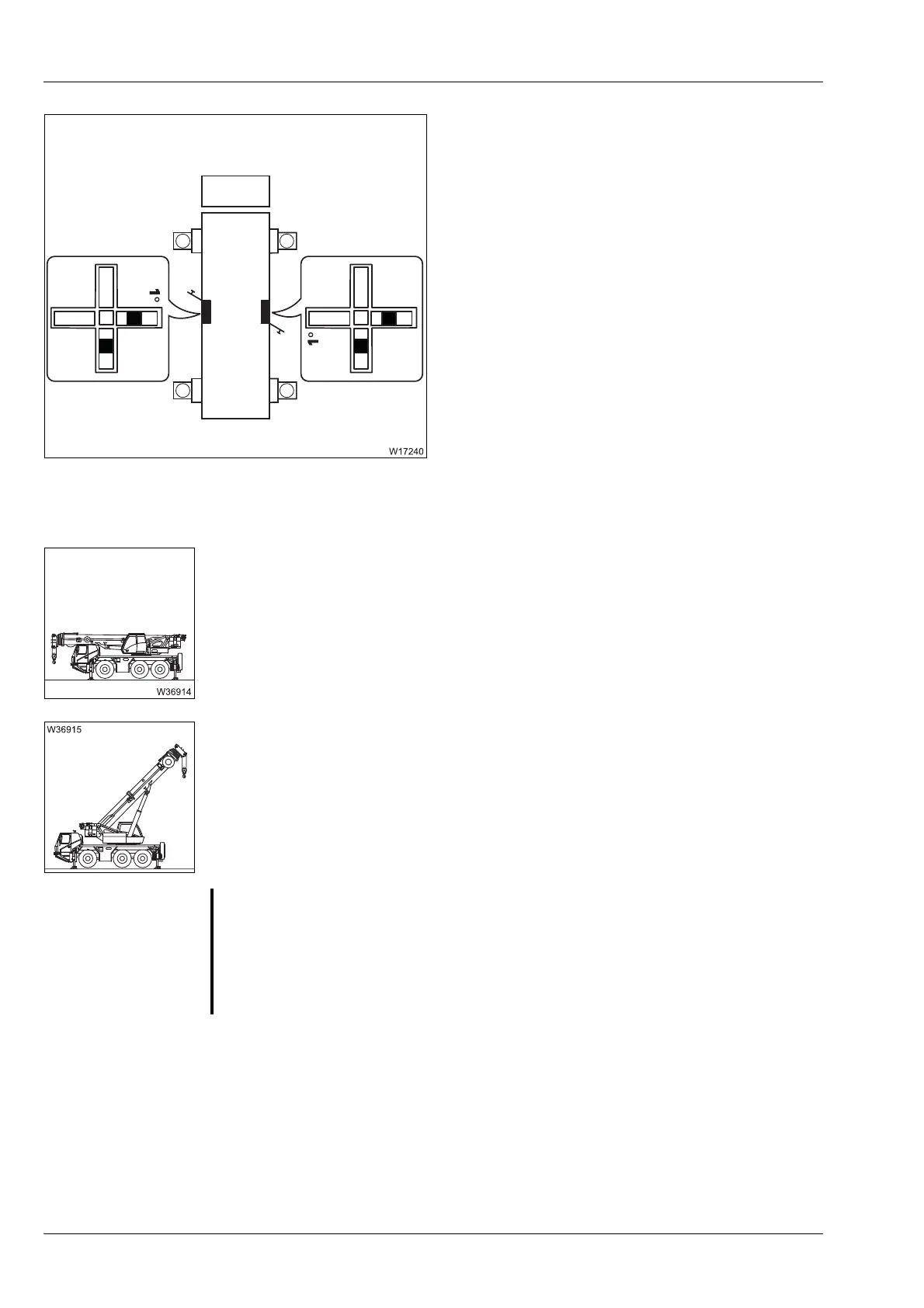

– Outrigger control units
The assignment to the carrier corresponds to
the top view.
Due to the position of the control units, the
displays on both sides differ.
In this example, the carrier would be standing
higher to the rear on the right hand side.
Prerequisites The following prerequisites apply to manual and automatic alignment.
The main boom is resting in the boom rest.
or
– The main boom must be raised and
– the load must have been set down and
– the superstructure must be in the 0° or 180° position.
G
Risk of overloading the main boom!
Always slew the superstructure to the 0° or 180° position and set down the load
before levelling the truck crane.
In other positions, the deformation of the carrier will create incorrect results for
the inclination and the truck crane will be at an angle. This could cause the boom
to become overloaded during crane operation.
