Malfunctions during crane operation
14.8 Fuses in the crane cab
14 - 72 3 302 819 en Operating manual
GMK3060
13.12.2018

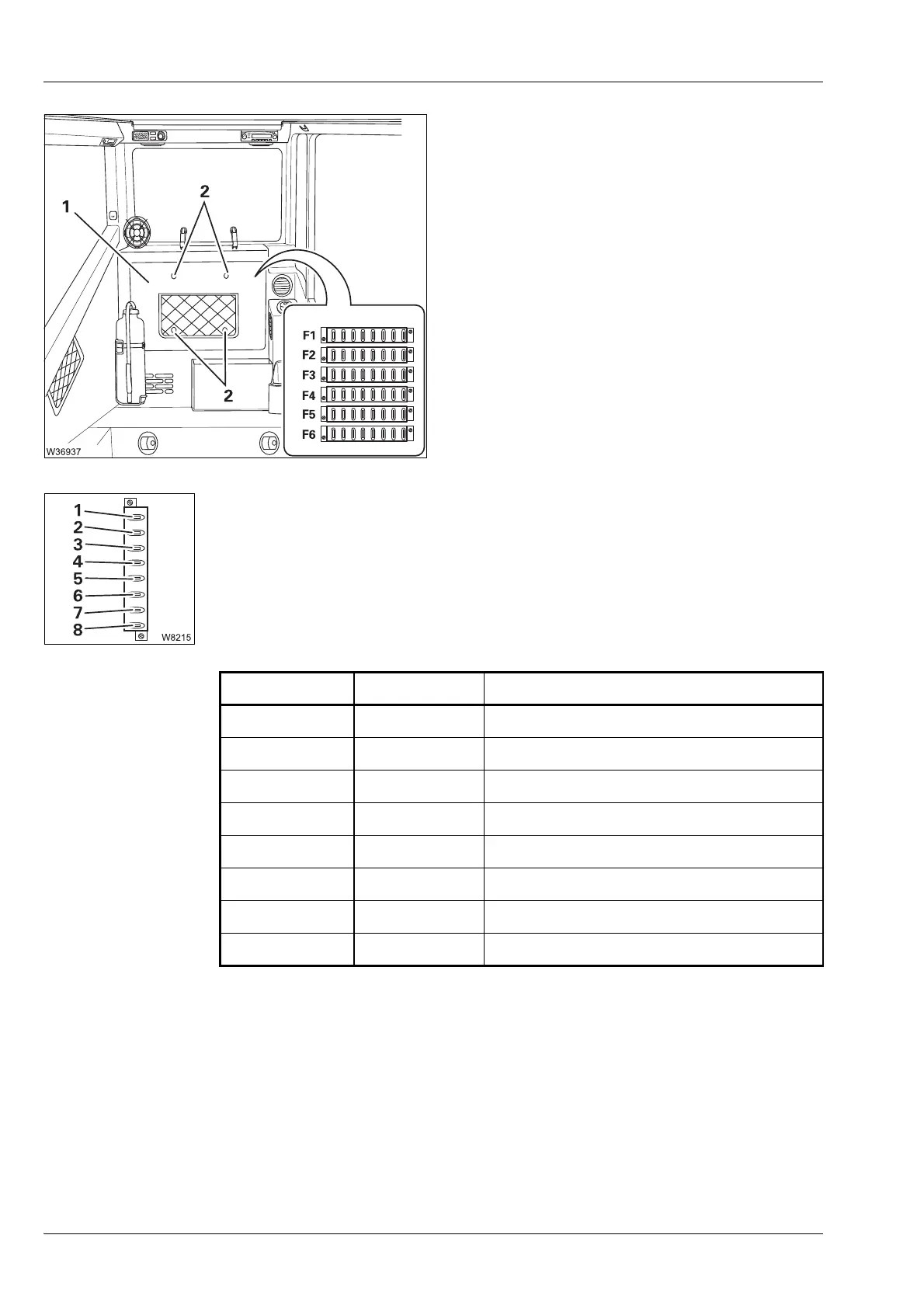

• Loosen the bolts (2) and remove the cover (1).
The fuse groups F1 to F6 consist of eight fuses
each.
The following tables show the designations of the
individual fuses, including their amperage and
functions.
• Observe the instructions regarding fuse
changes;
à p. 14 - 71.
The designations 1 to 8 in the tables correspond to their order from left to right
(fuse 1 is always the left fuse).
Designation Amperage (A) Function
F1/1 15 Control unit UB SCM
F1/2 15 Control unit UB 1 CCM 10
F1/3 15 Control unit UB 2 CCM 10
F1/4 15 Control unit UB IOL 30
F1/5 15 Control unit UB IOL 30
F1/6 15 Control unit UB IOL 30
F1/7 15 Control unit UB IOL 30
F1/8 3 Crane cab lighting
