29.13 Calculations

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

420

￭￭￭￭￭￭￭￭

900 Touch Control

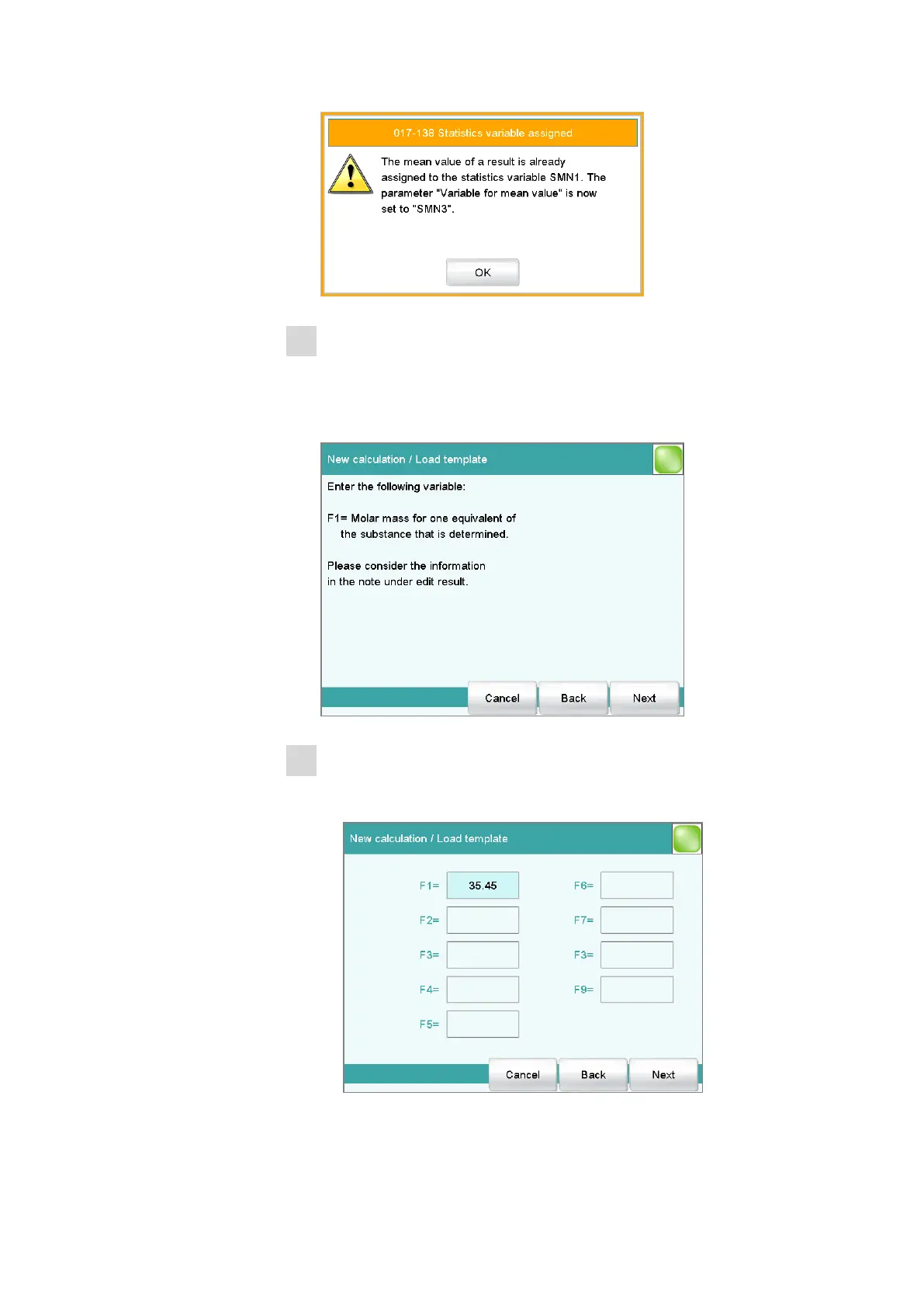

Confirm the message

￭ Tap on [OK].

The Note dialog is displayed. This note is defined in the dialog Edit

result template / Note for wizard.

Enter the numerical values of the wildcards

￭ Tap on [Next].

The list of wildcards is displayed:
