3.2 Rear of the instrument

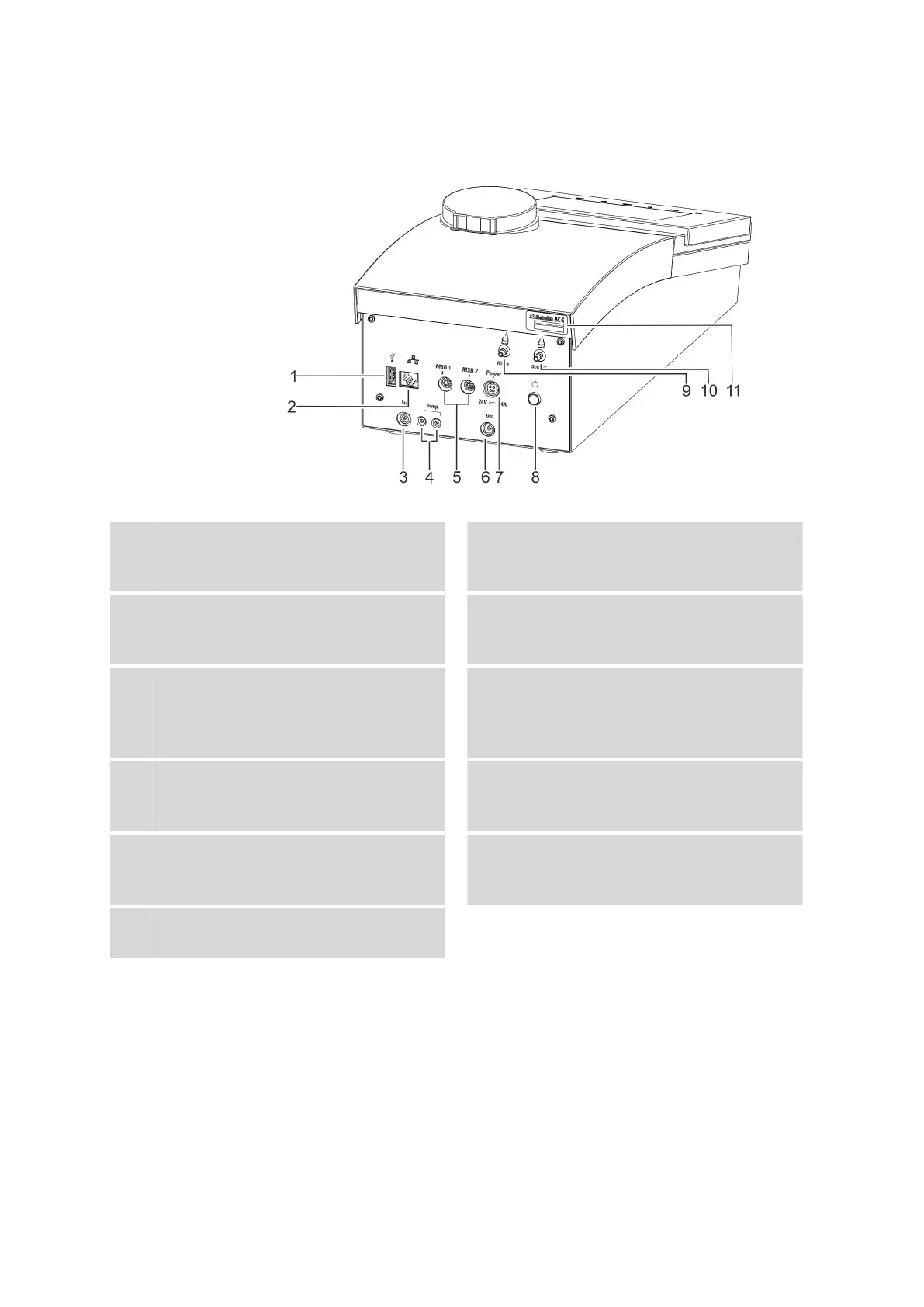

Figure 2 Rear
1
USB connector (type A)
For connecting printers, USB flash drives,
USB hubs, etc.
2
Ethernet connector (RJ-45)
For connecting to a network.
3
Indicator electrode connector (Ind.)
For connecting the indicator electrode.
4
Temperature sensor connector (Temp.)
For connecting temperature sensors (Pt1000
or NTC). Two B sockets, 2 mm.
5
MSB connector (MSB 1 and MSB 2)
Metrohm Serial Bus. For connecting external
dosing devices, stirrers or a Remote Box.
Mini DIN, 8-pin.
6
Generator electrode connector (Gen.)
For connecting the generator electrode.
7
Power socket (Power)
For connecting the external power supply
unit.
8
Power switch
Switches the instrument on/off.
9
Connection nipple for PVC tubing
For aspirating the contents of the titration
cell.
10
Connection nipple for PVC tubing
For aspirating solvent.
11
Type plate
Contains the serial number.
