4.4 Connecting sensors
ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿
20
ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿
917 Coulometer
NOTICE
The electrode cable is protected against accidental disconnection
of the cable by means of a pull-out protection. If you wish to pull
out the plug again, you first need to pull back the outer plug
sleeve.
4.4.3 Connecting a temperature sensor
A temperature sensor of the Pt1000 or NTC type can be connected to the
Temp. connector.
Connect the temperature sensor as follows:
1

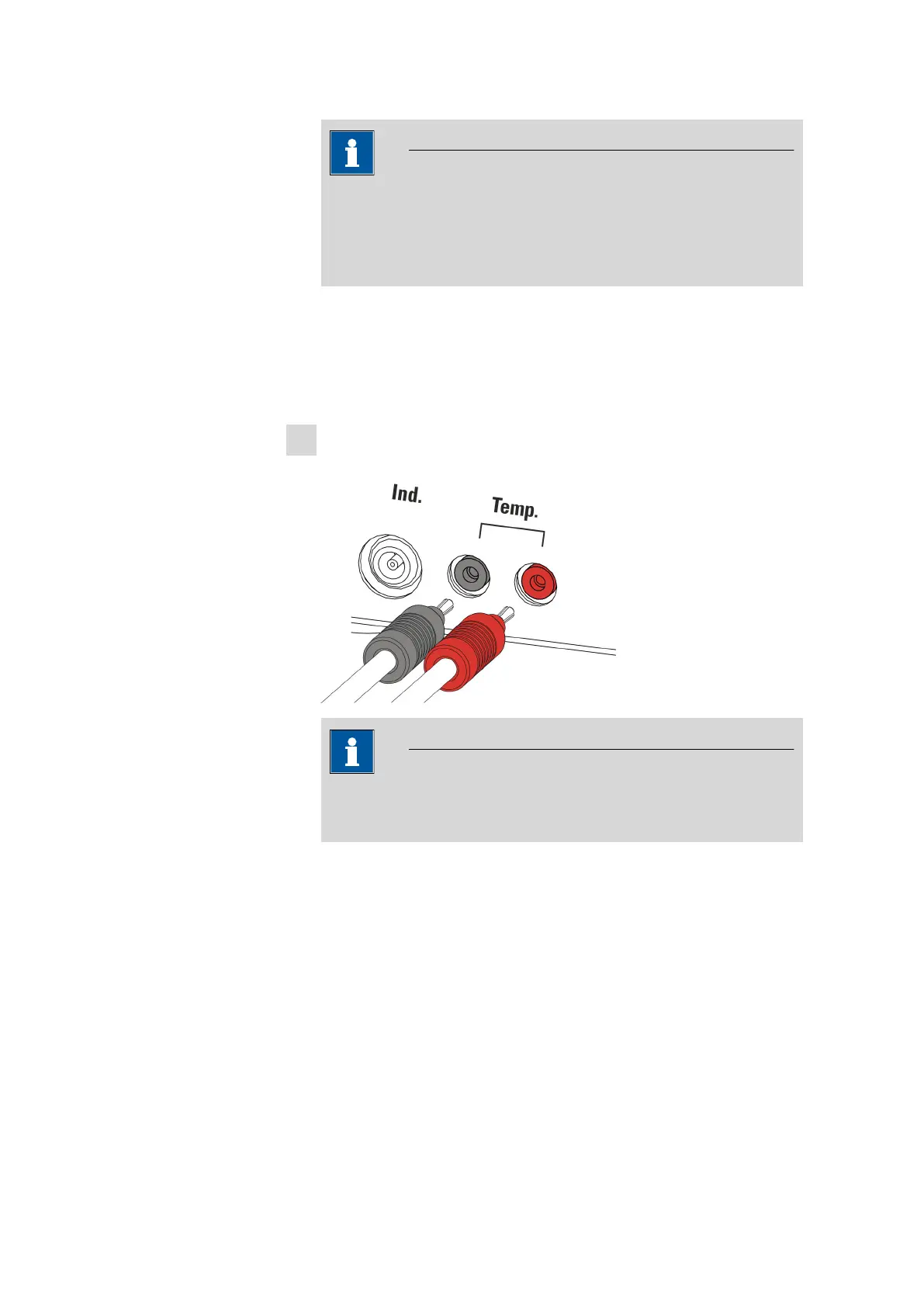

Insert the plugs of the temperature sensor into the Temp. sockets of
the coulometer.
NOTICE
Always insert the red plug into the red socket. This is the only way
that shielding against electrical interference can be ensured.
