4.4 Connecting sensors
ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿
18
ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿
917 Coulometer

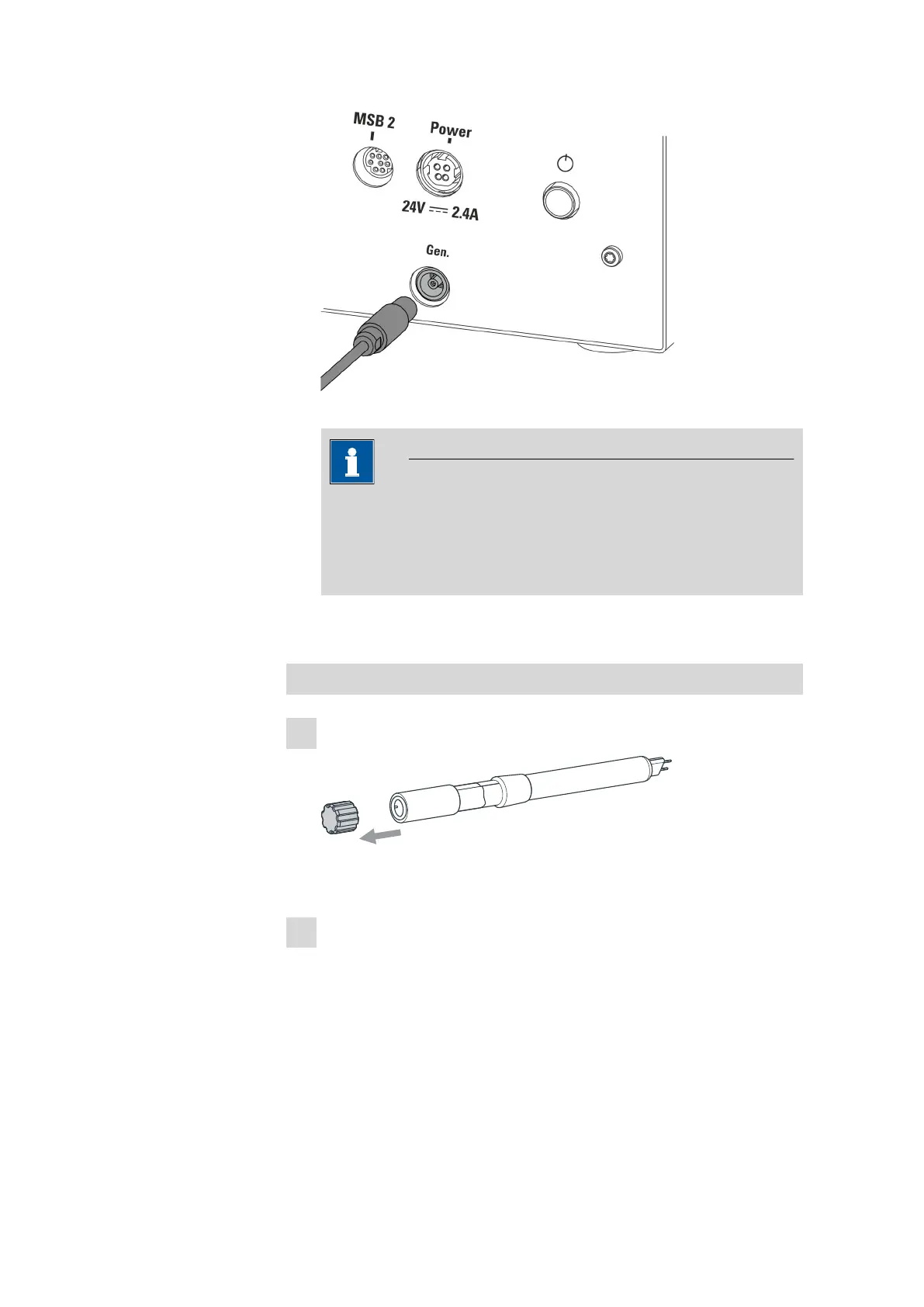

Figure 10 Connecting a generator electrode
NOTICE
The electrode cable is protected against accidental disconnection
of the cable by means of a pull-out protection. If you wish to pull
out the plug again, you first need to pull back the outer plug
sleeve.
4.4.2 Connecting indicator electrodes
Screwing the electrode cable to the indicator electrode
1
Unscrew the protective cap from the indicator electrode.
Figure 11 Unscrewing the protective cap from the indicator elec-
trode
2
Tighten the 6.2104.020 electrode cable to the indicator electrode.
