4.5 Connecting MSB devices
ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿
22
ï¿ï¿ï¿ï¿ï¿ï¿ï¿ï¿
917 Coulometer
NOTICE
When connecting MSB devices together, the following must be
observed:
ï¿ No additional stirrer may be connected to the MSB 1!
ï¿ Only one device of the same type may be used at a single MSB con-
nector at one time.
ï¿ When making the connection, take care to ensure that the flat part
of the MSB plug marked with arrows is pointing in the direction of
the marking on the MSB connector (see figure 15, page 22).

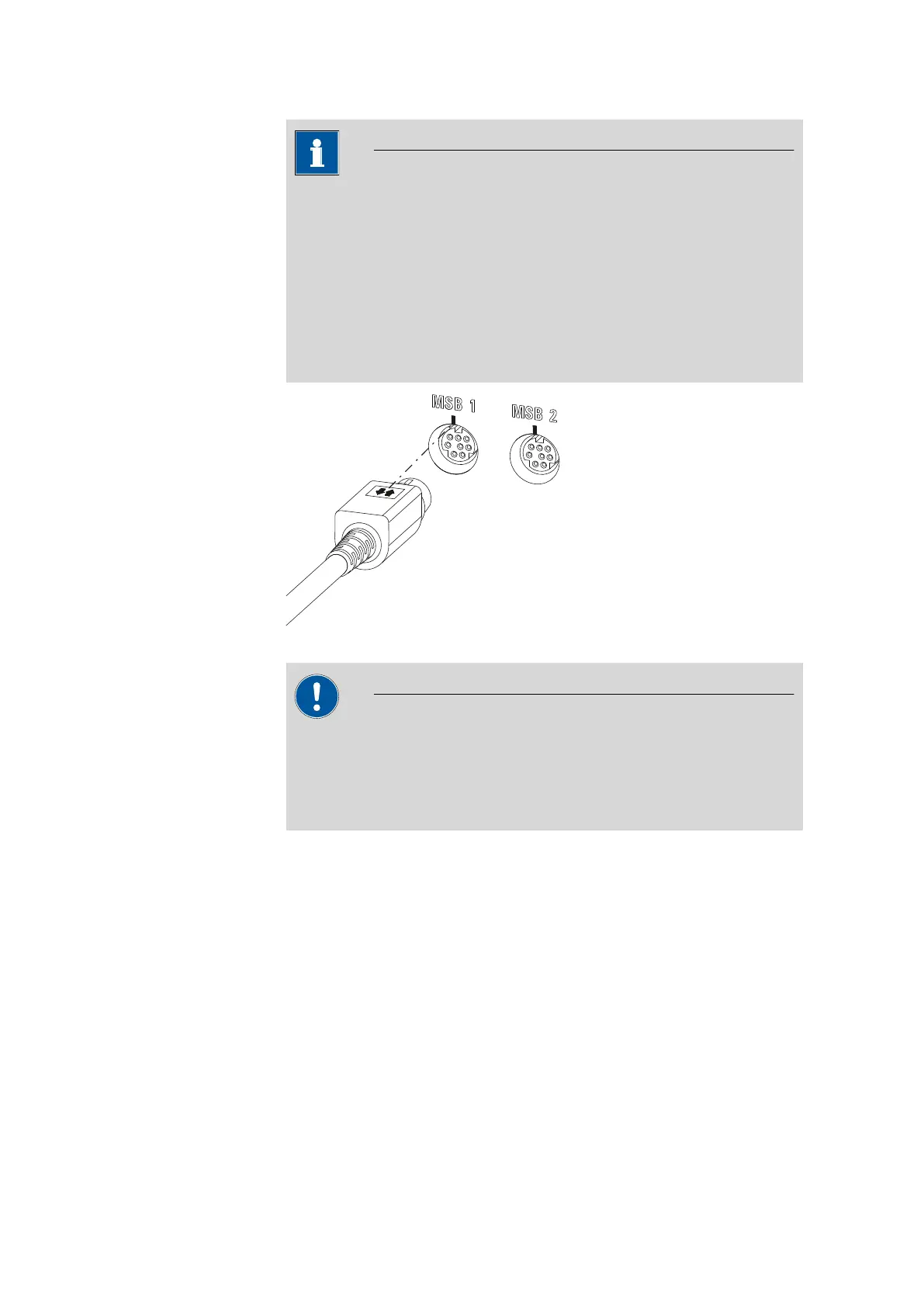

Figure 15
MSB connector
CAUTION
Switch off the Coulometer before you plug in MSB devices. When it is
switched on, the Coulometer automatically recognizes which device is
connected to which MSB connector. The connected MSB devices are
entered automatically in the device manager.
MSB connections can be extended with the 6.2151.010 cable. The maxi-
mum connection length permitted is 6 m.
4.5.1 Connecting a dosing device
You can connect two dosing devices to the Coulometer.
The types of dosing devices that are supported are:
ï¿ 800 Dosino
ï¿ 805 Dosimat
