4.5 Connecting MSB devices
In order to connect MSB devices, e.g. dosing devices or Remote Box, the
Coulometer has two connectors to what is referred to as the Metrohm
Serial Bus (MSB). Various peripheral devices can be connected in sequence
(daisy chain) at a single MSB connector (8-pin Mini DIN socket) and be
controlled simultaneously by the Coulometer. In addition to the connec-
tion cable, stirrers and the Remote Box are each equipped with their own
MSB socket for this purpose.
NOTICE
The additional stirrer must not be connected to the MSB 1!
The following figure provides an overview of the instruments that can be
connected to an MSB socket, along with a number of different cabling
variations.
MSB
Stirrer / Ti Stand
Dosimat / Dosino
Dosimat
Remote Box
Dosino
Ti Stand / Stirrer

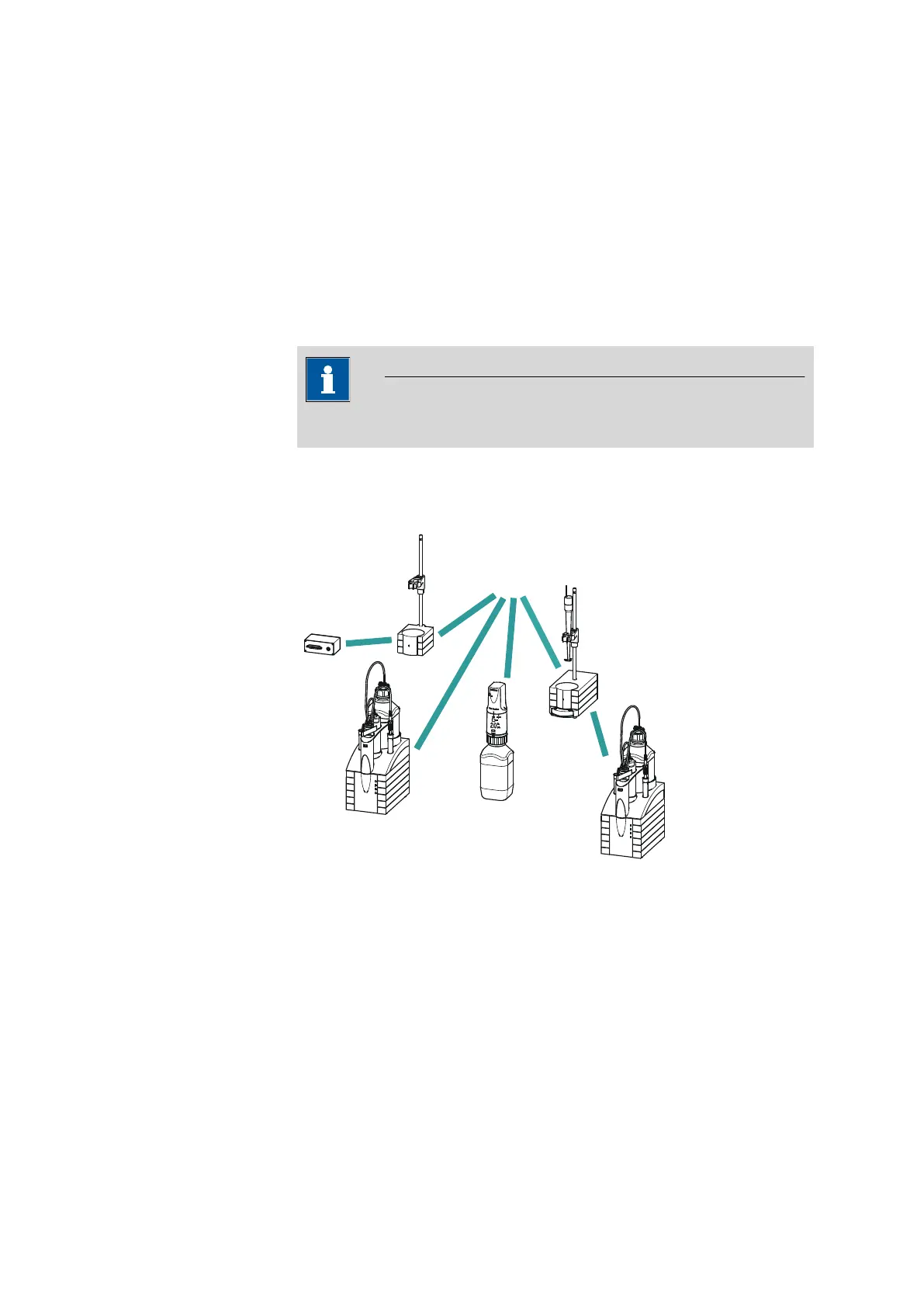

Figure 14
MSB connections
