31 Appendix
917 Coulometer
￭￭￭￭￭￭￭￭
297
31.5 Remote interface
The 6.2148.010 Remote Box allows devices to be controlled which cannot
be connected directly to the MSB interface of the Coulometer.
1
2
3

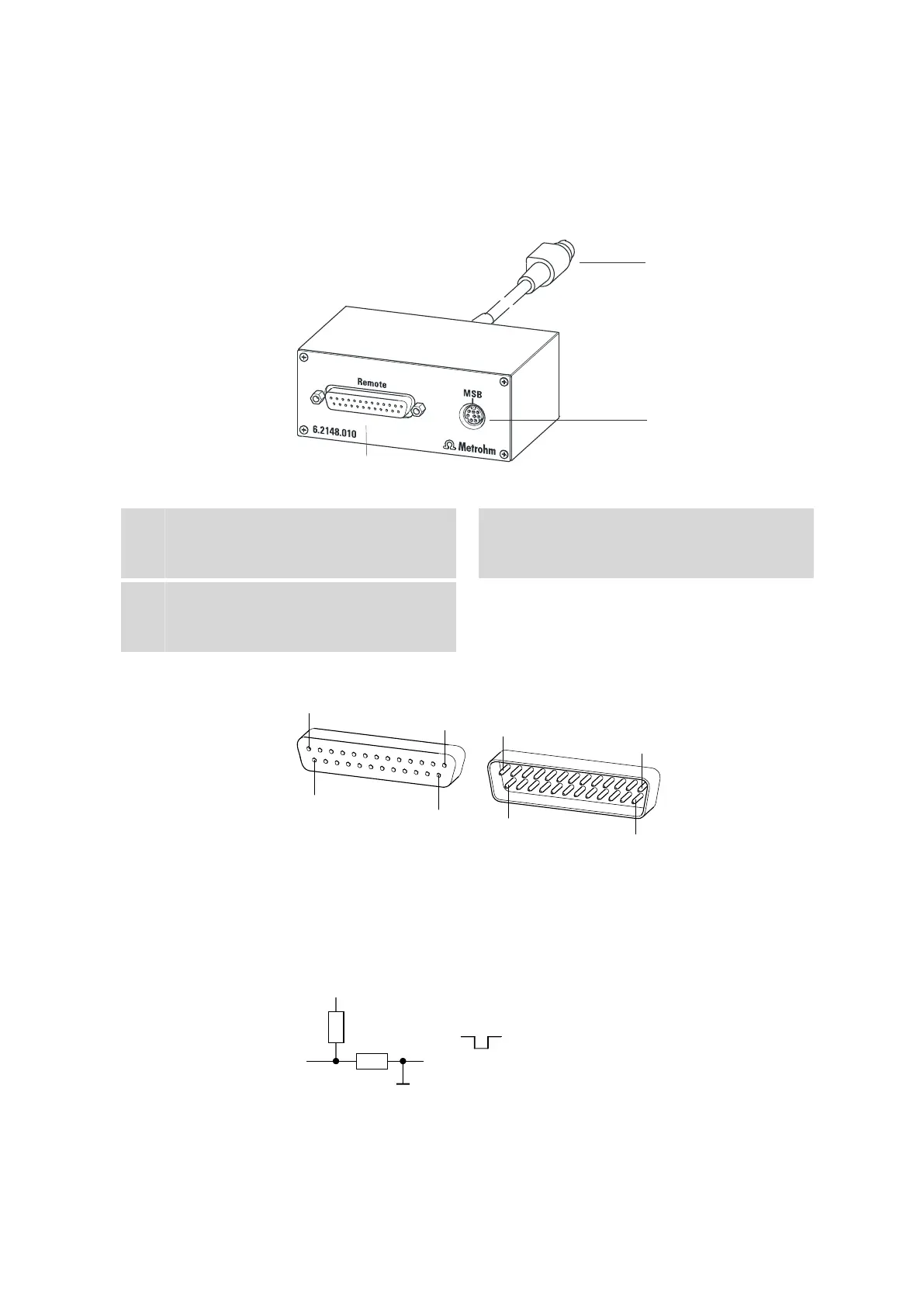

Figure 19 Connectors of the Remote Box
1
Cable
For connecting to the Coulometer.
2
MSB connector
Metrohm Serial Bus. For connecting external
dosing devices or stirrers.
3
Remote connector
For connecting instruments with a remote
interface.
31.5.1 Pin assignment of the remote interface
13
1
14
25
1
13
14
25
Figure 20
Pin assignment of remote socket and plug
The above figure of the pin assignment of a Metrohm remote interface
applies not only for the Remote Box, but also for all Metrohm devices with
25-pin D-Sub remote connector.
Inputs
+5 V
approx. 50 kΩ Pull-up
t
p
t
p
> 20 ms
active = low, inactive = high
