Moog ACV with CANopen bus interface 7 Servo valve functions
Spool position setpoint conditioning / demand value generator
B99224-DV018-D-211, Rev. A, October 2018 141
7.2.5.2 One-quadrant ramp (ramp type 1)
This function limits the input signal's rate of change to the defined <AccelerationTime> (0x6331).
This ramp type is active, if the parameter <Type> (0x6330) is set to 1.

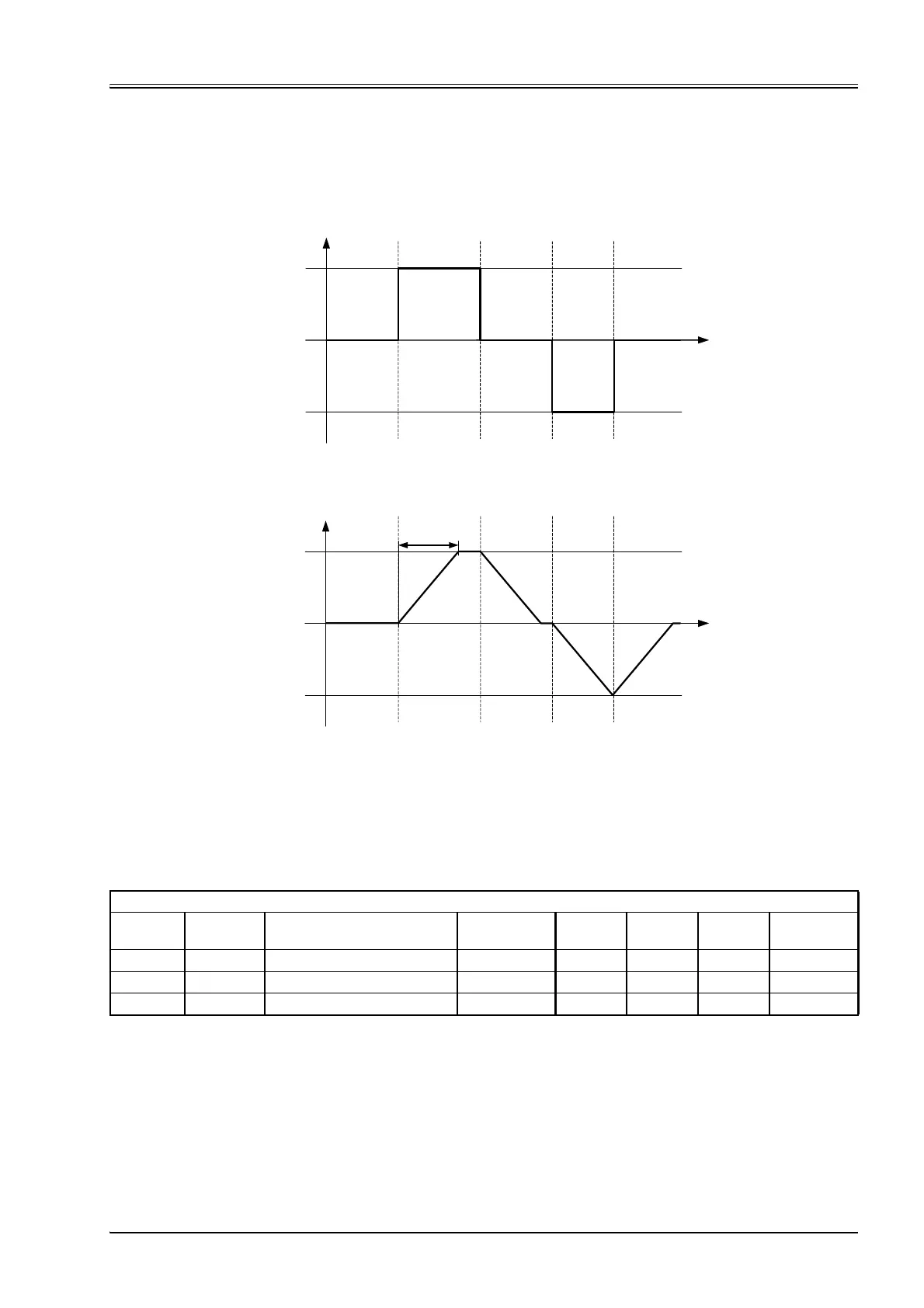

Figure 59: Ramp type 1
7.2.5.2.1 Object 0x6331: Acceleration time
This parameter defines the output signal's maximum rate of change. The acceleration time corresponds to the
time the signal needs for a change from 0 to 100 % as shown in  Figure 59, page 141. The acceleration
time can be specified with a resolution of 1 s, 100 ms, 10 ms or 1 ms.
 Chapter "2.4.3 Units and prefix parameter", page 12
t
input
+ 100 %
- 100 %
t
output
+ 100 %
- 100 %
<AccelerationTime>
(0x6331)
ValvePositionControl_DemandValueGenerator_Ramp
Index Sub-index Parameter name Data type Access
Per-
sistence
Value
range Default
0x6331 1 AccelerationTime UINT16 rw Y UINT16 0
0x6331 2 Unit UINT8 ro - UINT8 3
0x6331 3 AccelerationTime_Prefix INT8 rw Y –4…0 –3
