Moog ACV Series - Figure 75: Ramp Type 1; Object 0 X63 B0: Type; One-Quadrant Ramp (Ramp Type 1); Table 79: Possible Values of Parameter <Type> (0 X63 B0)

Moog ACV with CANopen bus interface 7 Servo valve functions
Pressure setpoint conditioning / demand value generator
B99224-DV018-D-211, Rev. A, October 2018 163
7.4.5.1 Object 0x63B0: Type
This parameter defines the progression of the ramp.
Value description
7.4.5.2 One-quadrant ramp (ramp type 1)
This function limits the input signal's rate of change to the defined <AccelerationTime> (0x63B1).
This ramp type is active, if the parameter <Type> (0x63B0) is set to 1.

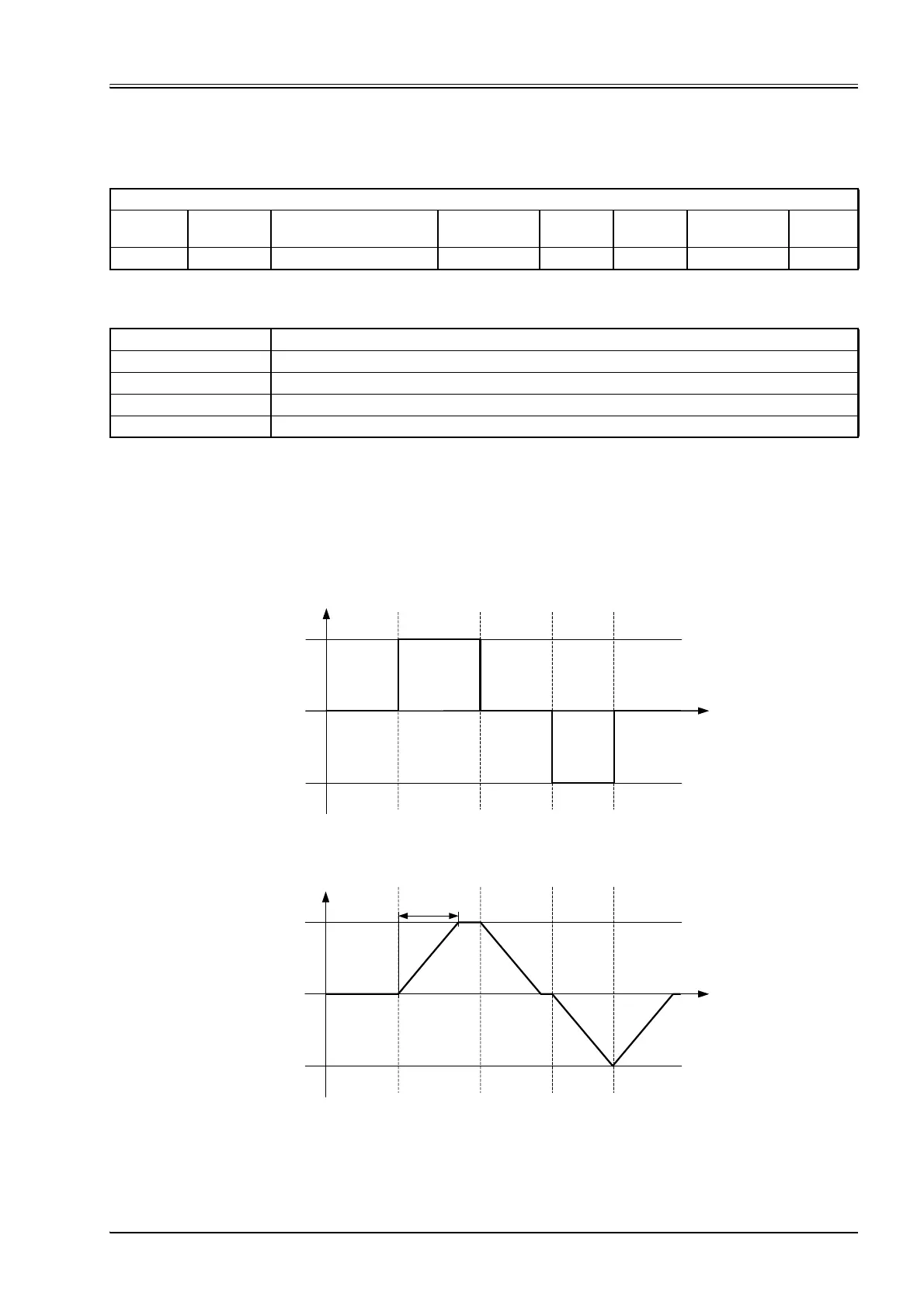

Figure 75: Ramp type 1
ValvePressureControl_DemandValueGenerator_Ramp
Index Sub-index Parameter name Data type Access
Per-
sistence Value range Default
0x63B0 0 Type INT8 rw Y 0…3 0
<Type> Description
0No ramp
1 One-quadrant ramp
2 Two-quadrant ramp
3 Four-quadrant ramp
Table 79: Possible values of parameter <Type> (0x63B0)
t
input
+ 100 %
- 100 %
t
output
+ 100 %
- 100 %
<AccelerationTime>
(0x63B1)
