Moog ACV with CANopen bus interface 7 Servo valve functions
Axis velocity setpoint conditioning / demand value generator
B99224-DV018-D-211, Rev. A, October 2018 208
7.9.3 Ramp
The ramp function limits the slew rate of the input signal.

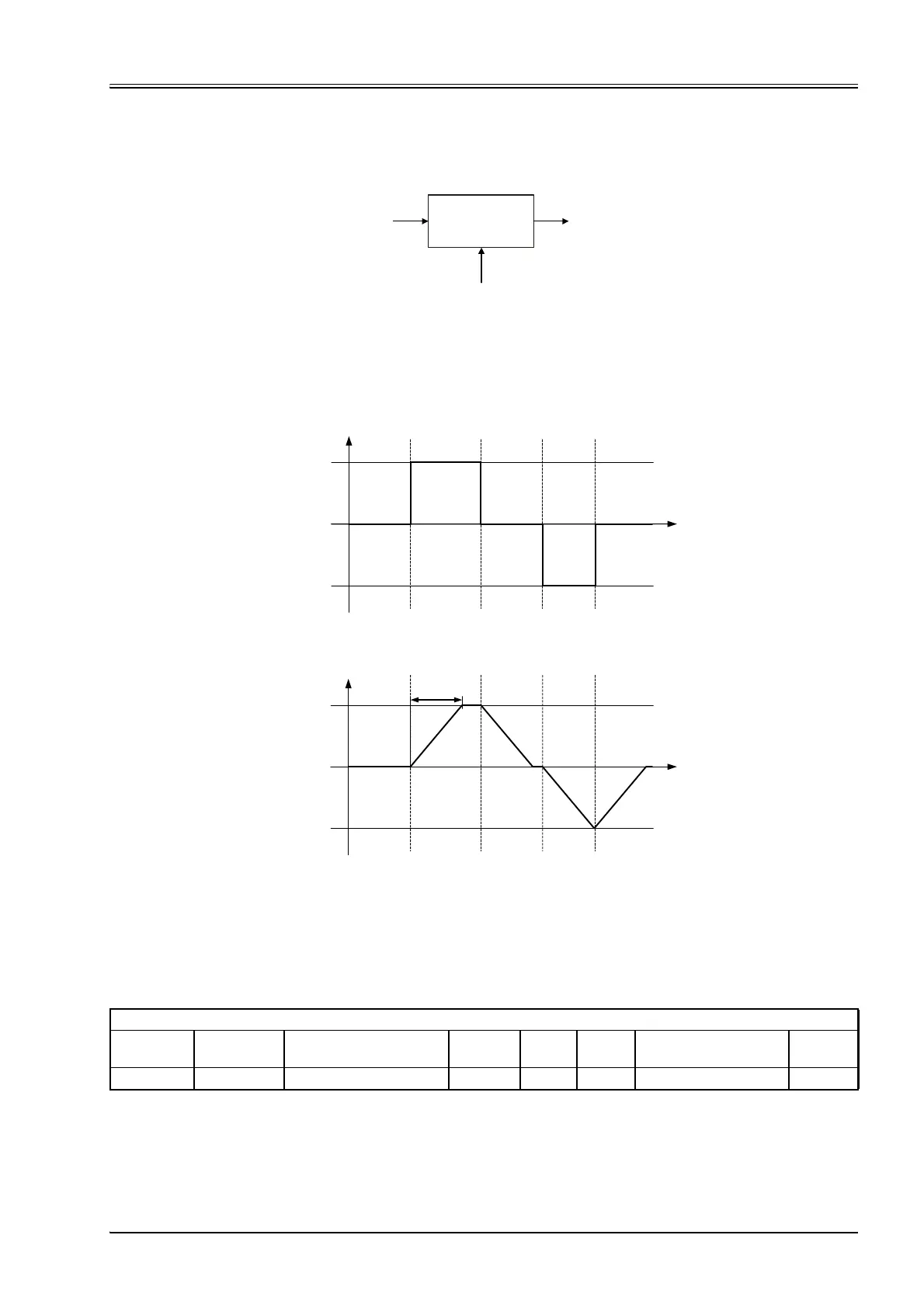

Figure 116: Ramp function
This function limits the output signal's rate of change to <VelocityDemandRamp> (0x5553) per 1/10000 sec-
ond. The ramp function is disabled (output = input) if this parameter is zero.
Figure 117: Velocity demand ramp
7.9.3.1 Object 0x5553: Velocity demand ramp
This parameter defines the demand signal's maximum rate of change.
Max rate of change per second = <VelocityDemandRamp> (0x5553) x 10000
<VelocityDemandRamp>
(0x5553)
Velocity
ramp
input output
t
input
+ 100 %
- 100 %
t
output
+ 100 %
- 100 %
<VelocityDemandRamp>
(0x5553)
ValveVelocityControl_DemandValueGenerator_Ramp
Index Sub-index Parameter name Data type Access
Per-
sistence Value range Default
0x5553 1 VelocityDemandRamp INT32 rw Y INT32 0
