Moog ACV Series - Alpha Correction; Figure 133: Alpha Correction; Object 0 X2330: Active Transducer Interface System; Object 0 X5217: Active Transducer Interface Tank

Moog ACV with CANopen bus interface 7 Servo valve functions
Flow control
B99224-DV018-D-211, Rev. A, October 2018 222
7.12.6.1 Object 0x2330: Active transducer interface system
This parameter keeps the number of the transducer interface for the actual system pressure value. Instead of
using a pressure sensor it is also possible to use a constant value.
7.12.6.2 Object 0x5217: Active transducer interface tank
This parameter keeps the number of the transducer interface for the actual tank pressure value. Instead of us-
ing a pressure sensor, it is also possible to use a constant value.
7.12.7 Alpha correction
The alpha correction can be used to compensate the area differences between A-side and B-side of a differ-
ential cylinder.
 Chapter "7.5.10.3 Object 0x585F[N]: Cylinder piston diameter", page 173
 Chapter "7.5.10.4 Object 0x585D: Cylinder rod diameter A", page 173
 Chapter "7.5.10.5 Object 0x585E: Cylinder rod diameter B", page 174

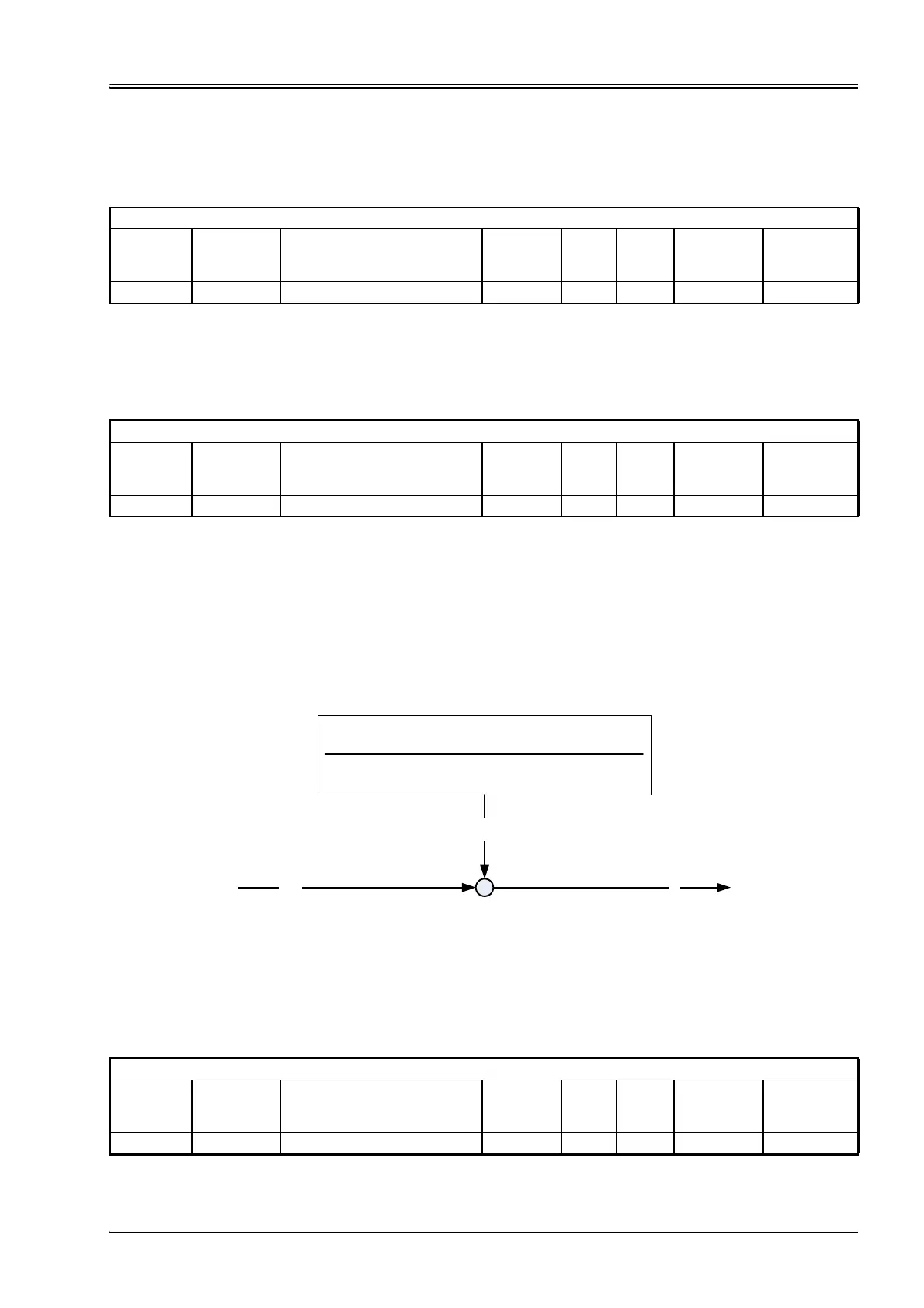

Figure 133: Alpha correction
7.12.7.1 Object 0x5219: Flow alpha
This parameter is the multiplier for the pressure in B-side to get the alpha corrected actual pressure.
ValveFlowControl
Index Sub-index Parameter name Data type Access
Per-
sis-
tence Value range Default
0x2330 0 ActiveTransducerInterfaceSystem INT8 rw Y 0…8 0
ValveFlowControl
Index Sub-index Parameter name Data type Access
Per-
sis-
tence Value range Default
0x5217 0 ActiveTransducerInterfaceTank INT8 rw Y 0…8 0
<CylinderPistonDiameter>
(0x585F)
<CylinderRodDiameterB>
(0x585E)
<CylinderRodDiameterA>
(0x585D)
<CylinderPistonDiameter>
(0x585F)
() )
))((
(
22
22
-
-
<PosActualValue2>
(0x6601)
#PressureB#
X
<FlwAlpha>
(0x5219)
ValveFlowControl
Index Sub-index Parameter name Data type Access
Per-
sis-
tence Value range Default
0x5219 0 FlwAlpha FLOAT32 ro - FLOAT32 None
