(00292)H 6 - 15
Reference for Relative Frame Time
This selection is enabled when the "Frame Absolute Time" under the "Camera Frame
Time" is " Exposure Time".
Trigger Frame Time
The trigger frame time is the reference for the frame relative time.
The trigger frame time subtracted from the frame time becomes the
frame relative time.
Trigger Signal Detection Time
The trigger frame time as the trigger signal input time is the
reference for the frame relative time.
The trigger frame time subtracted from the frame time becomes the
frame relative time.
DATE/TIME Display for Recording
Trigger The trigger time for the image recorded in the memory is shown in
blue.
Current Displays the current time during VIEWARMREC in red.
Displays the trigger time for the image recorded in the memory
during READYPLAYLOOP in blue.
Image Center Mark Settings
OFF Image center mark not shown.
White Image center mark shown in white.
Black Image center mark shown in black.

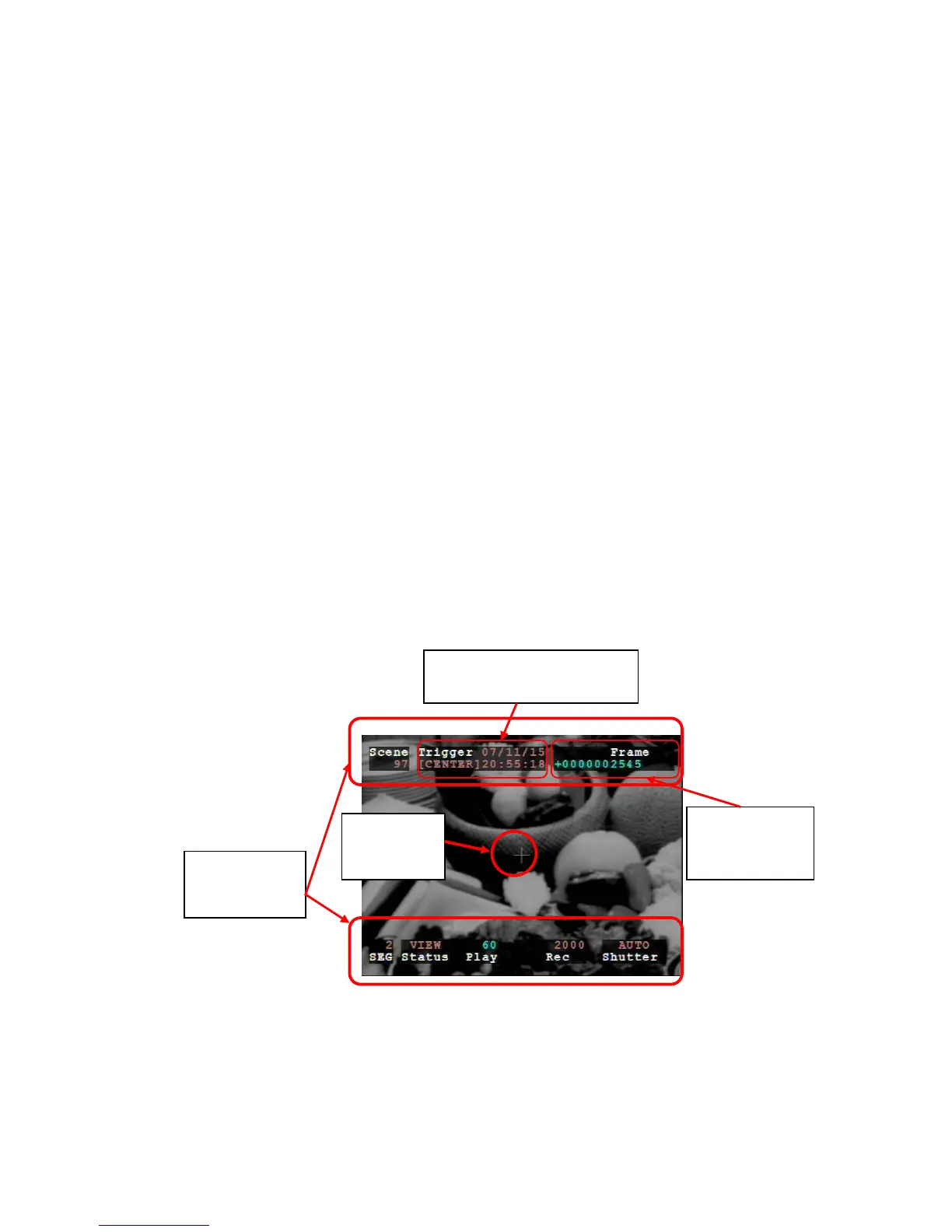

Video on
screen display
(display all)
Image center
mark setting
(white)
Frame counter
display settings
(frame)
DATE/TIME display during
recording (Trigger)
