8 - 20 (00292)H
8.14 Multi camera sync recording with Q camera
For sync recording of Q camera, you can use the following connection methods.
1. Synchronize Q cameras
-Synchronize multi Q cameras with external signals
-Synchronize multi Q cameras with daisy-chain connection
-Synchronize multi Q cameras with Q-HUB
2. Synchronize Q cameras and HX, GX cameras
-Synchronize Q cameras and HX, GX cameras with external signals
- Synchronize Q cameras and HX, GX cameras with GX-HUB and Q-HUB
8.14.1 Synchronize Q cameras
You can input 1. none/ 2. EST/ 3. period/ 4. 1kHz/ 5. IRIG/ 6. Q-HUB into the System with only
Q cameras.
Refer to page 8-24 table.1 for each sync settings.

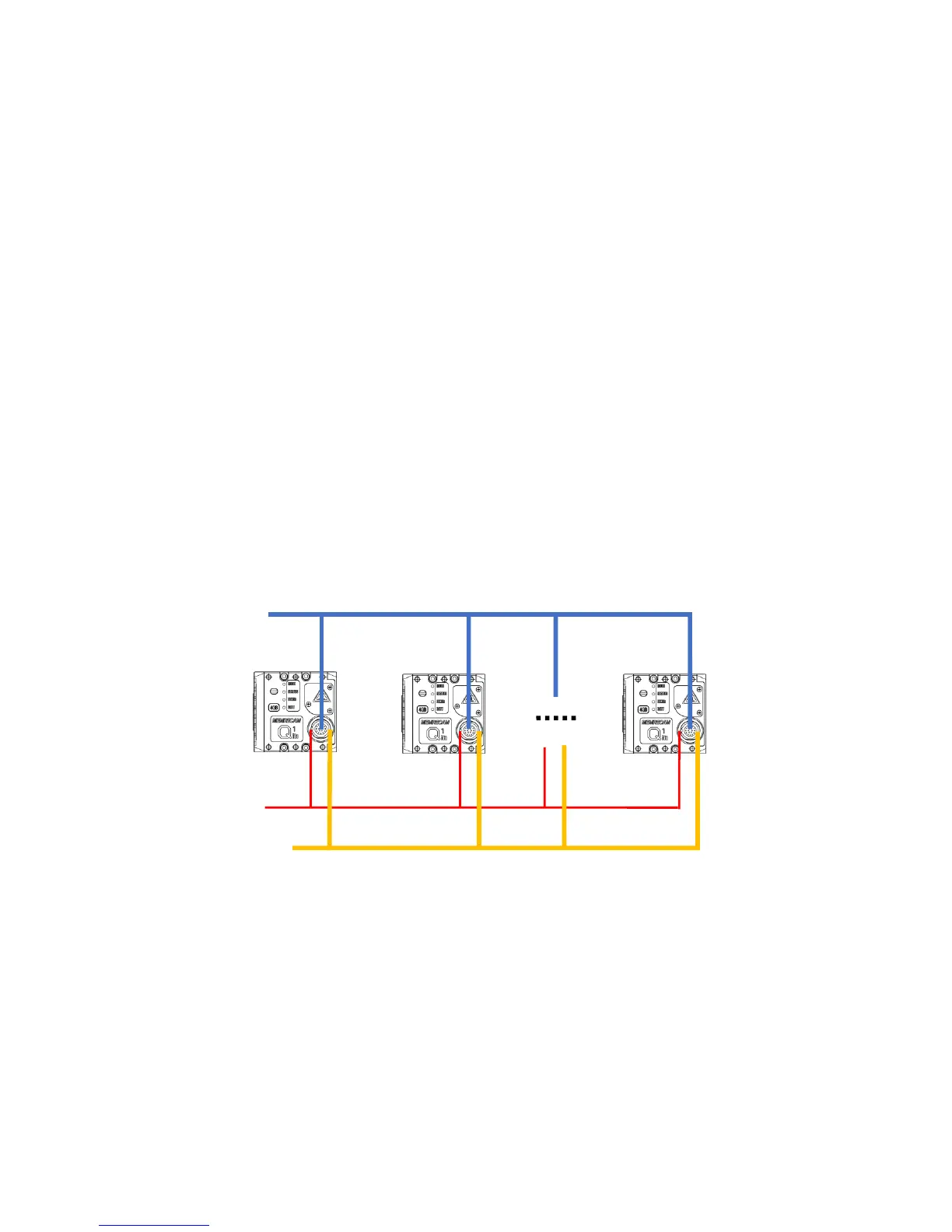

■Synchronize multi Q cameras with external signals
Multi Q cameras can synchronize each other by synchronizing same external signal.
External Input
Trigger
Ethernet
SYNC IN
Q camera
