8.14.2 Synchronize Q cameras and HX, GX cameras
You can input EST or IRIG into the System with only HX, GX cameras.
Refer to page 8-24 table.1 for each sync settings of Q camera.

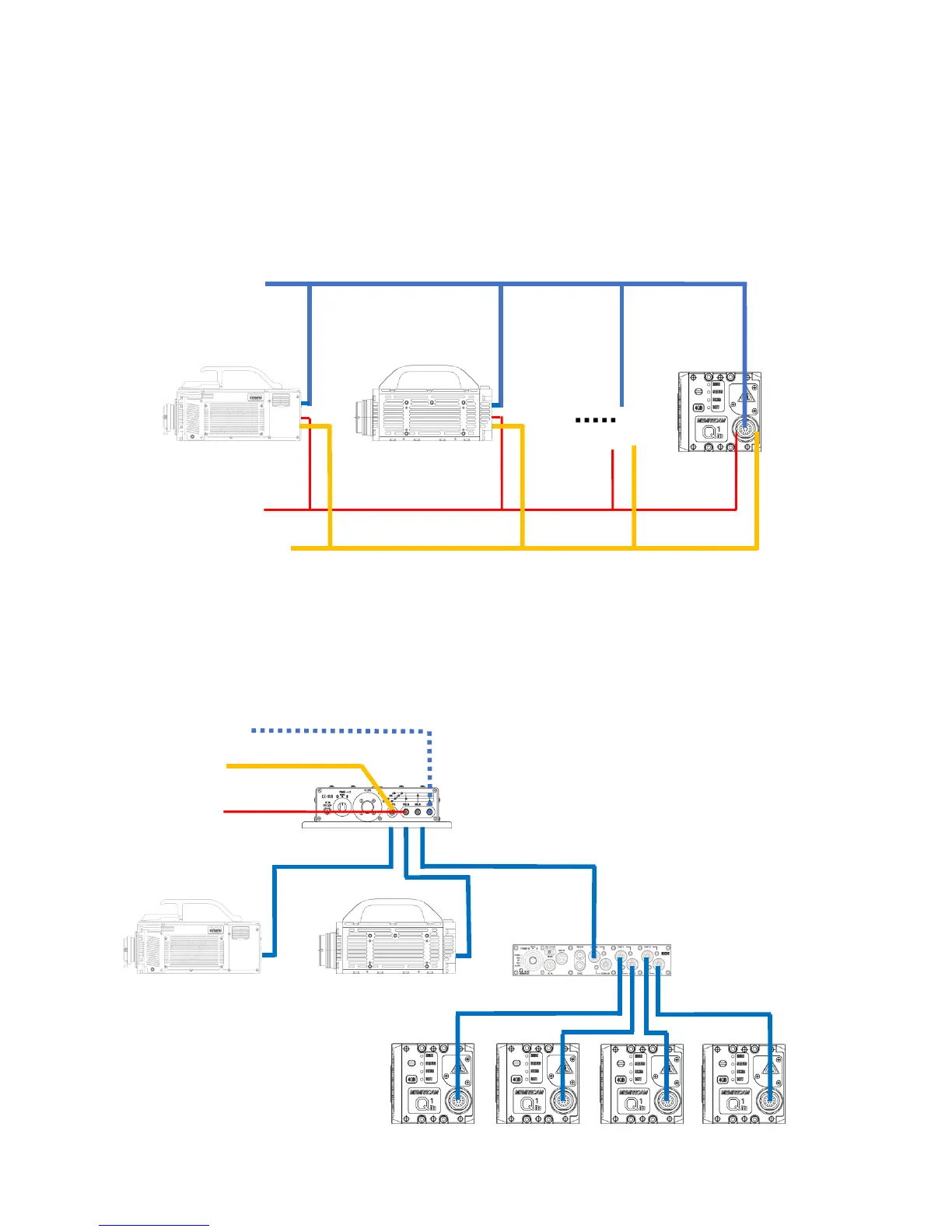

■Synchronize Q cameras and HX, GX cameras with external signals
Multi cameras can synchronize each other by synchronizing same external signal.
■Synchronize Q cameras and HX, GX cameras with GX-HUB and Q-HUB
You can synchronize Q cameras and HX, GX cameras by using GX-HUB as standard.
You can also input external signal to GX-HUB.
Q camera
Q-HUB
External input
Ethernet
Trigger
GX-HUB
SYNC IN
HX camera
GX camera
Trigger
Ethernet
External input
SYNC IN
HX camera
GX camera
Q camera
