8 - 26 (00292)H

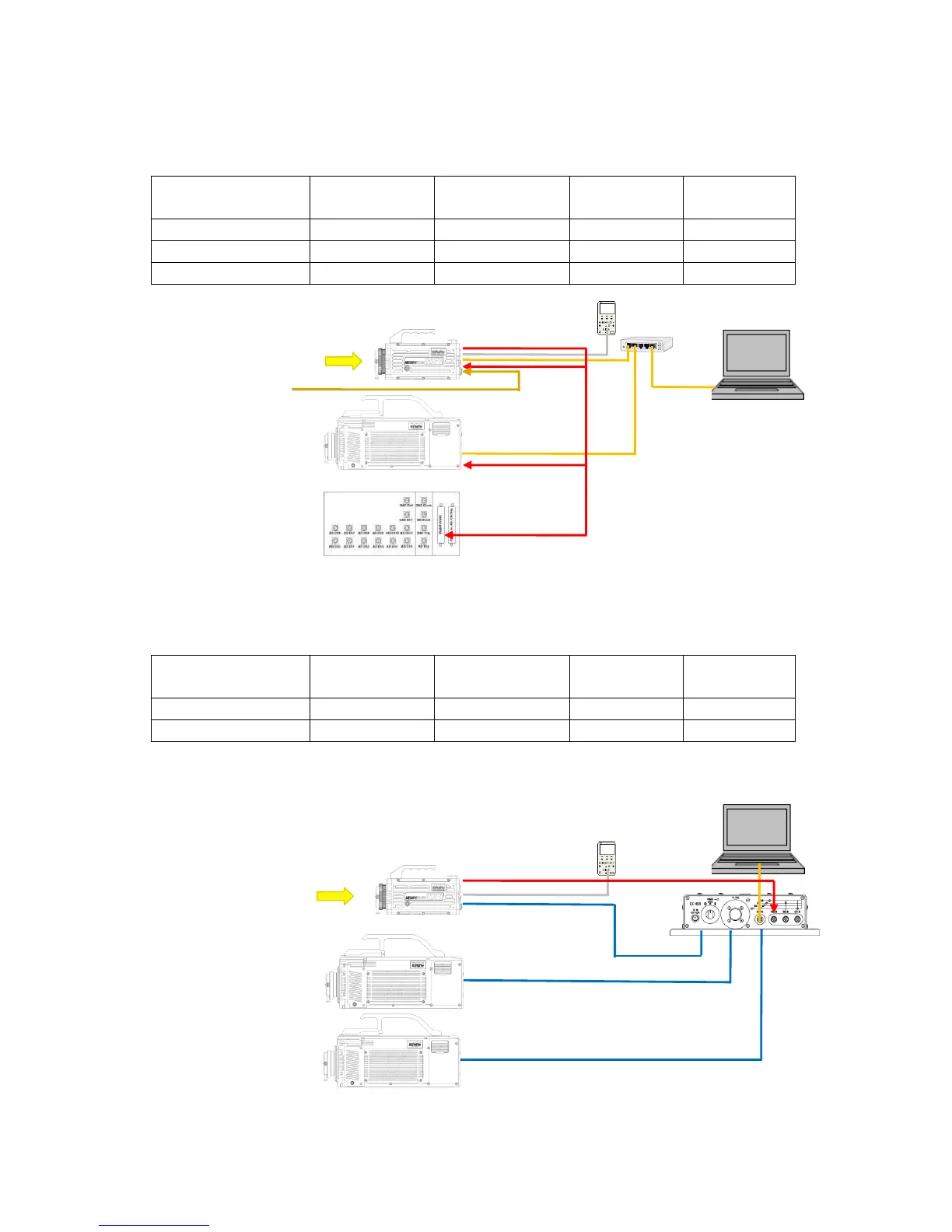

Example about the connection when recording by TRIG OUT signal, and setting.
■ Recording HX-7, HX-3, and a Waveform Input Device.
Trigger Output
Mode / Polarity
Trigger Selection
/ Polarity
Exposure
Timing
Image Trigger
HX-7
TRIGOUT/ Nega
TRIG1/Nega
K4 Compatible
ON/OFF
HX-3
No Setting
TRIG1/ Nega
K4 Compatible
OFF
Waveform Input Device
No Setting
No Setting
No Setting
No Setting
■ Recording synchronously by operation of HXLink / J-PAD3 or image trigger.
Trigger Output
Mode / Polarity
Trigger Selection
/ Polarity
Exposure
Timing
Image Trigger
HX-7
TRIGOUT / Nega
TRIG2 / CRNT ON
K4 Compatible
ON/OFF
HX-3
No Setting
TRIG2 / CRNT ON
K4 Compatible
OFF
● When it's different in shutter setting every camera when setting at the timing of exposure as a
GX native, a trigger frame isn't identical every camera.
TRIG1
TRIGOUT
HX-3
TRIG1
Waveform Input Device
TRIGGER
TRIGOUT
HX-7
PC
LAN
TRIG2
HX-3
HX-3
GX Remote Cable
TRIG IN
HX-7
Image Trigger
J-PAD3
GX-HUB
GX Remote Cable
GX Remote Cable
PC
Image Trigger
J-PAD
3
