NEC Electra Elite IPK - DID Digit Conversion Table

Elite IPK Document Revision 1
Programming Manual 2 - 25
___________________________________________________________________________________
___________________________________________________________________________________
1-1-22 DID Digit Conversion Table
General Description
Up to 200 incoming DID numbers can be assigned individually to ring at a preassigned
2-digit, 3-digit, or 4-digit station number, closed number (plus outgoing digits), or
tenant number (00~47) for day mode or night mode. This Memory Block applies to the
DID number after it is modified by Memory Block 5-00 (Digit Add/Del for Tie Line
Networking Assignment).
Display
Settings
LK 1 LK 2 LK 3 LK 4 LK 5 LK 6 LK 7 LK 8
Default not
assigned
T
(Station or
Closed
Number)
TN
(Tenant)
Programming Procedures
1 Go off-line.
2
Press LK1 +
LK1 +
BB
to access the Memory Block.
3 Press Line Key to select Station or closed number or tenant.
Enter the data using the dial pad.

Use the following to enter data:
J
to move the cursor left
L
to move the cursor right
K
~
I
to enter numeric data or name (Refer to Appendix B Character Codes,
Section 1 Character Assignment on page B-1.)
B
to switch between Day and Night
H
to clear all data
C
to assign the name (Refer to Dial Pad Entry chart)

Digits Received: 0000~9999

Setting Data:
Station No. is a 2-, 3-, or 4-digit number (10~99, 100~999, or 1000~9999).
Closed Number is a 2-, 3-, or 4-digit number to facilitate routing to the closed
number.
Tenant No. 00~47
DNIS Data: 8-character maximum
Default Values
Not Specified
System Mode
1
Submode
1
Data No.
22

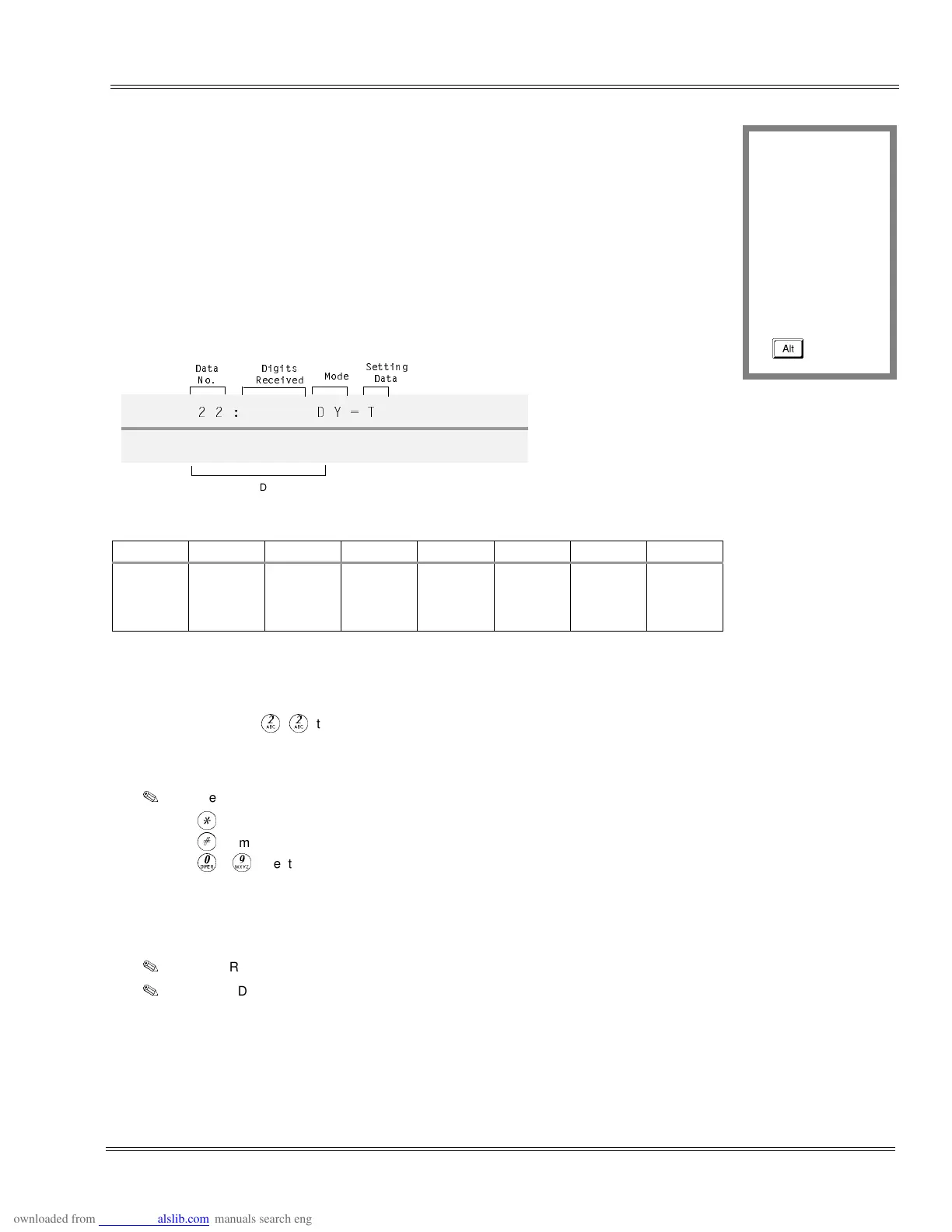

PC Programming
¦ +ALN
2 2 : D Y = T
Data
No.
DNIS Data
Mode
Digits
Received
Setting
Data
