Parker AC30 series User Manual

A-22 Fieldbuses
AC30 series Variable Speed Inverter

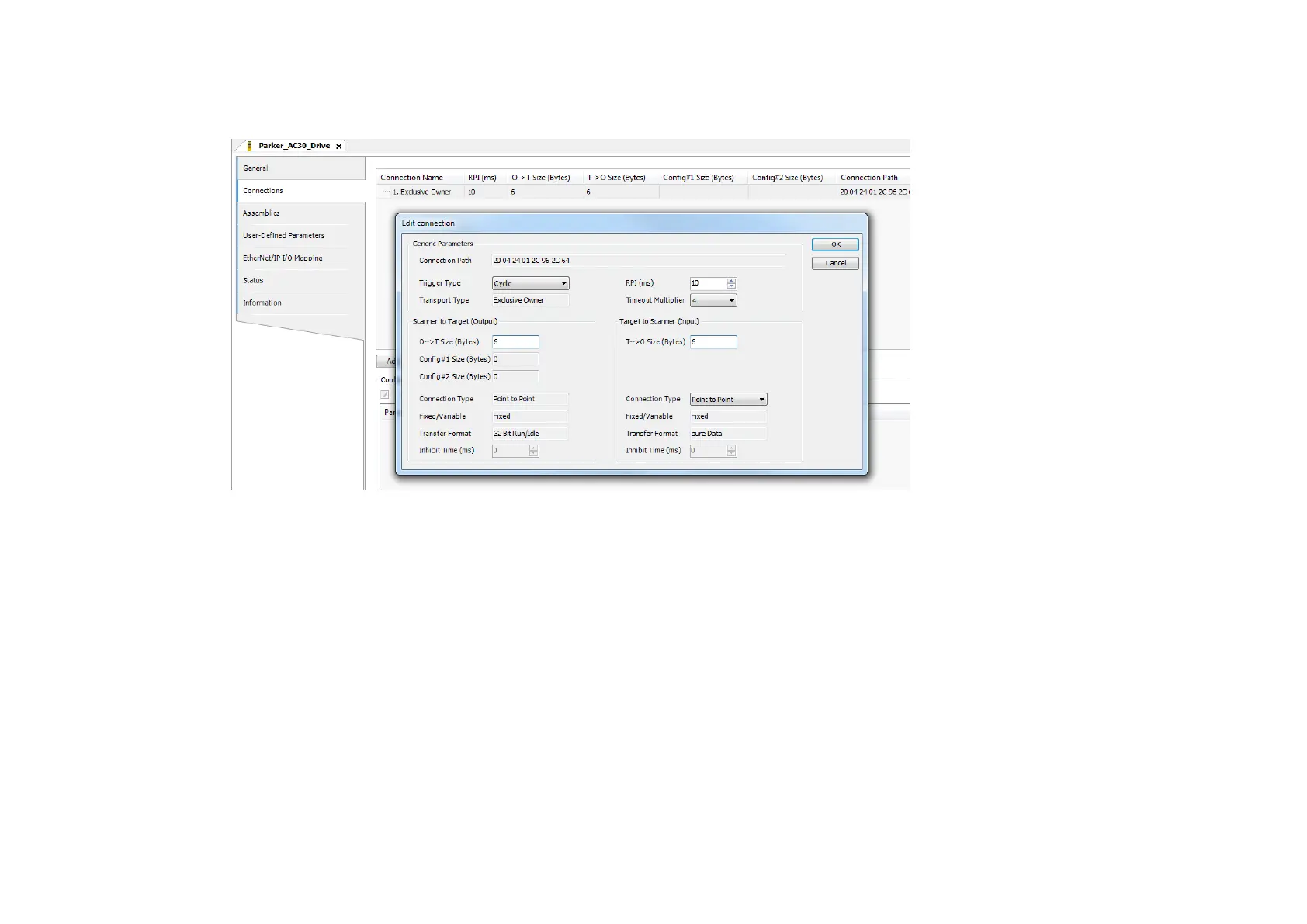

7. Under the Connections tab edit the connection if necessary. The input mapping uses a total of 6 bytes (O->T) and the output mapping also
uses a total of 6 bytes (T->O). The mapping sizes on the inverter MUST match that on the PLC. The RPI (Requested Packet Interval) may
also be changed.

Parker AC30 series Specifications

General

Control Modes	Closed-loop vector
Feedback	Encoder
Operating Temperature	0 to 40°C (32 to 104°F) standard, -20 to 50°C (-4 to 122°F) with derating
Protection	Overcurrent, Overvoltage, Undervoltage
Communication	RS485
